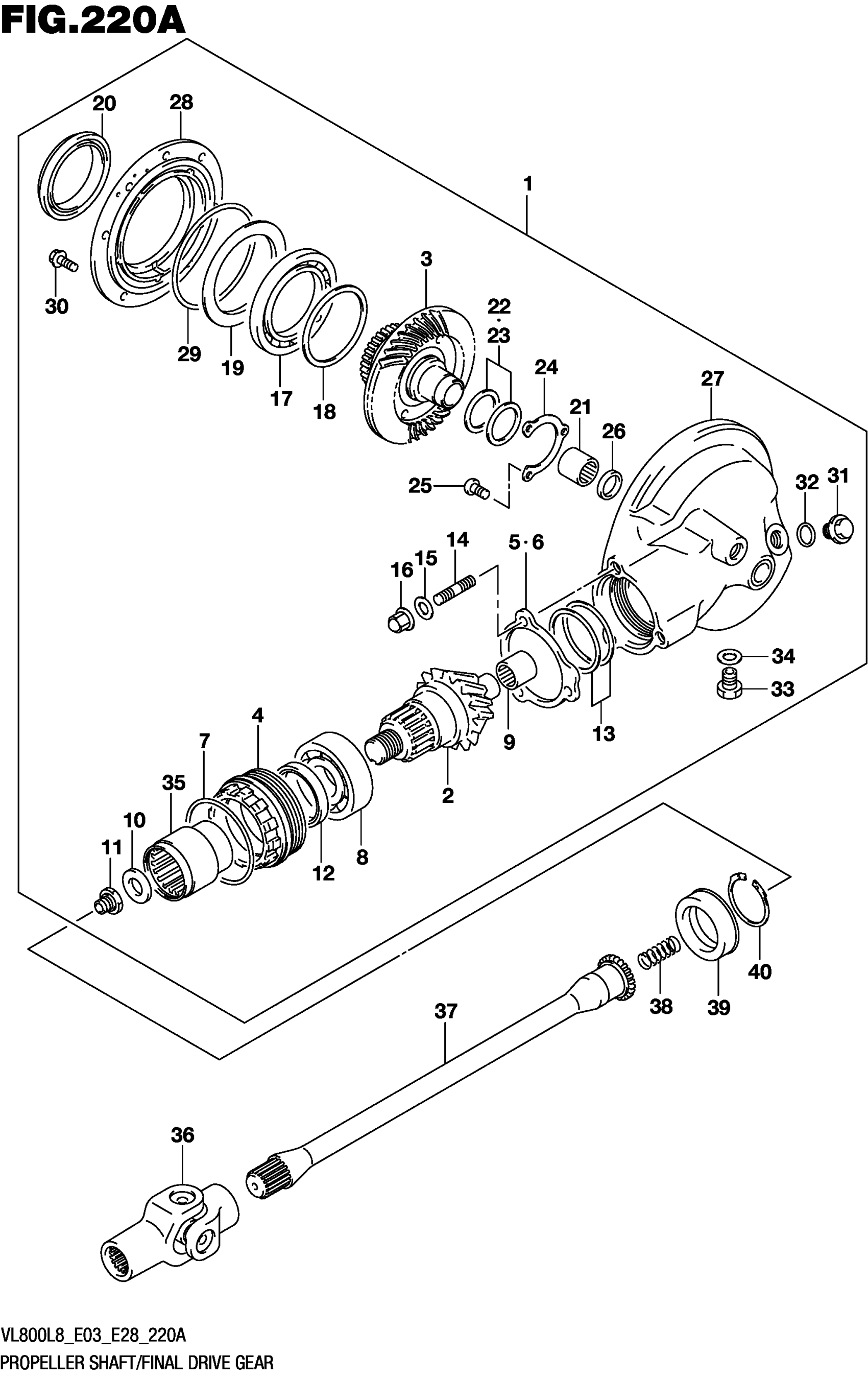

Suzuki VL800L8 (2018) PROPELLER SHAFT/FINAL DRIVE GEAR Diagram

#

Description
Price

1

GEAR & CASE SET FINAL BEVEL (

27301-38840-20H

$2,332.05

1

GEAR & CASE SET FINAL BEVEL (

27301-38840-20H

$2,332.05

2

.GEAR,FINAL DRIVE BEVEL (NT:1

27311-38A00

$297.98

2

.GEAR,FINAL DRIVE BEVEL (NT:1

27311-38A00

$297.98

3

.GEAR,FINAL DRIVEN BEVEL (NT:

27320-45C01

$463.53

3

.GEAR,FINAL DRIVEN BEVEL (NT:

27320-45C01

$463.53

4

.STOPPER,FINAL DRIVE BEARING

27312-38A00

$72.73

5

.PLATE,BEARING STOPPER

27313-38A00

$7.37

6

.PLATE,BEARING STOPPER

27313-38A10

$7.37

7

.O-RING (D:1.9,ID:61.6)

09280-62002

$3.29

8

BEARING (30X62X23.8)

09267-30005

$119.55

9

.BEARING (17X32X16)

09263-17028

$48.78

10

WASHER (16X29X4.0)

09160-16029

$6.35

11

.NUT

09159-16010

$10.00

12

.SEAL,OIL (38X54X6)

09283-38009

$17.33

13

.SHIM SET,FINAL DRIVE GEAR (T | T:0.3/0.35/0.4/0.5/0.6

27445-38810

$28.18

14

.BOLT,STUD

09108-10095

$5.72

15

.WASHER (113X122X2.3)

09164-10008

$1.71

16

.NUT

09159-10026

$6.20

17

.BEARING (70X110X13)

09262-70001

$140.93

18

.SHIM SET,DRIVEN GEAR BEARIG | T:0.35/0.4/0.5/0.6

27327-34810

$38.45

19

.PLATE

27328-34200

$7.37

20

.SEAL,OIL (70X96X16) | RH

09289-70001

$51.76

21

.BEARING (32X46X17.7) | LH

09263-32007

$81.08

22

.SHIM SET,FINAL DRIVEN GEAR ( | T:1.05/1.1/1.2/1.25/1.35

27326-34820

Unavailable

23

.SHIM SET,FINAL DRIVE GEAR (T | T:1.40/1.45/1.50

27326-34810

Unavailable

24

.RETAINER, BEARING

27329-34200

Unavailable

25

SCREW (6X12)

09125-06122

$2.44

26

.SEAL,OIL (30X42X7)

09283-30028

$9.60

27

CASE, FINAL GEAR This part replaces 27450-38A70-20H.

27450-38A20

Unavailable

28

.CASE,FINAL GEAR BEARING

27460-07A01

Unavailable

29

.O-RING (D:3.5,ID:131.6)

09280-00015

$11.03

30

BOLT

01550-0825A

$2.32

31

.PLUG

09247-18001

$8.83

32

O-RING (D:2.4,ID:17.8)

09280-18004

$5.18

33

PLUG (MAGNETO) | OIL DRAIN

09247-14002

$5.24

34

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

35

.COUPLING,FINAL DRIVE GEAR

27172-38A00

$53.04

36

YOKE,UNIVERSAL JOINT

27100-38A60

$348.15

37

SHAFT,PROPELLER

27151-41F00

$189.11

38

SPRING

09440-18019

$2.82

39

SEAL,OIL (28.4X48X15)

09283-30051

$10.49

40

CIRCLIP

09381-40003

$4.64
