2018 Suzuki VL800L8 Headlamp Diagram

← All diagrams

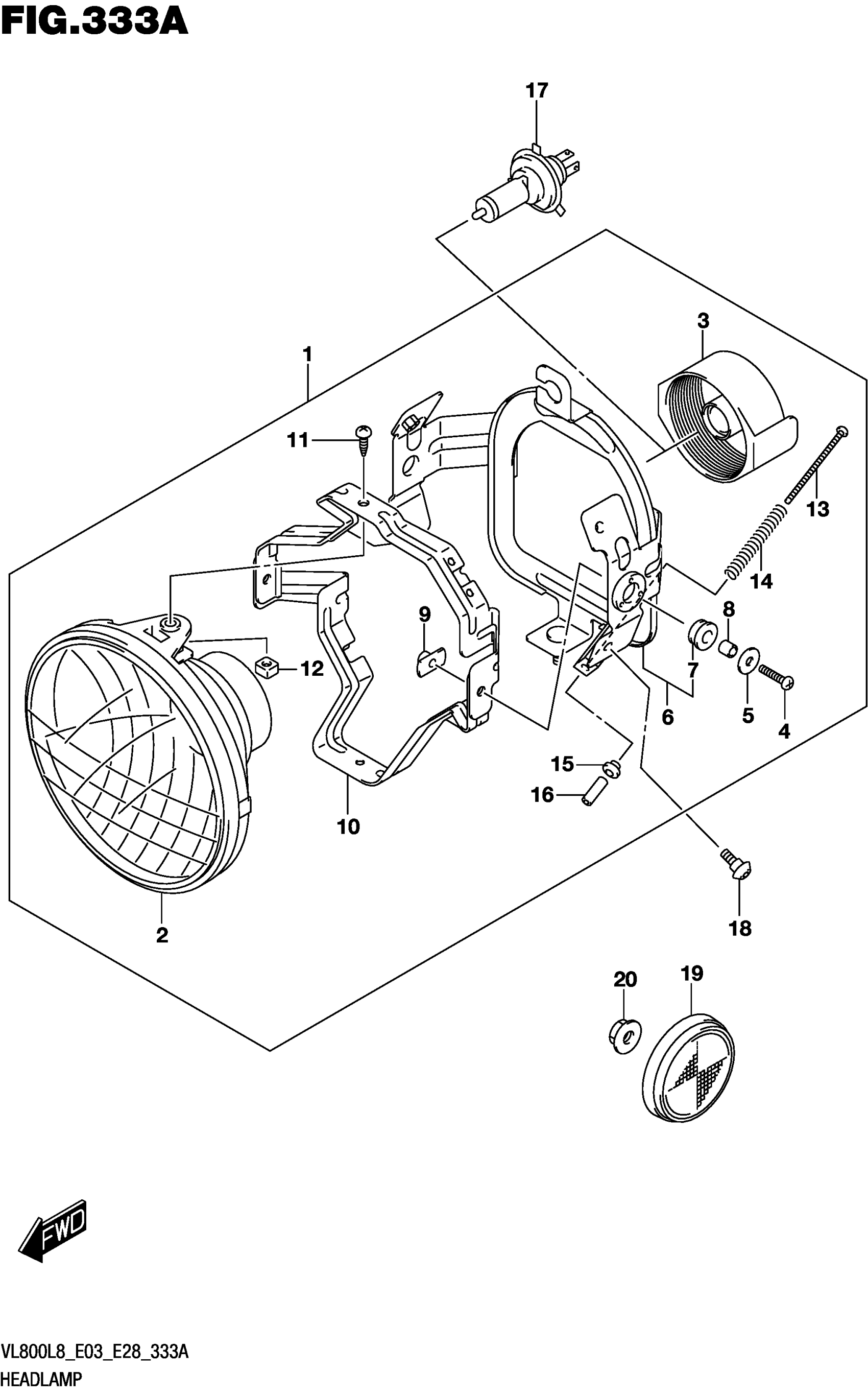

Find the part on the Headlamp diagram for your 2018 Suzuki VL800L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VL800L8 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.HEADLAMP ASSY

35100-06J31-999

1
Out of stock

2

..UNIT

35121-10FB0

1
Out of stock

3

.COVER,SOCKET

35174-19F00

1
Out of stock

4

..SCREW

02122-0520A

2
Out of stock

5

WASHER (5.5X18X1.0)

09160-05045

2
Out of stock

6

..BRACKET

35140-06J02

1
Out of stock

7

...CUSHION

35139-38A60

2
Out of stock

8

..SPACER

35133-45230

2
Out of stock

9

..NUT

35155-10FA0

2
Out of stock

10

..BRACKET

35130-10FA0

1
Out of stock

11

.SCREW (5X16)

35181-19F00

2
Out of stock

12

.NUT

35135-45900

2

$3.67

In stock

13

..SCREW,ADJUSTER

35151-10FA0

2
Out of stock

14

..SPRING,ADJUSTER

35154-10FA0

2
Out of stock

15

.NUT

35152-45600

2
Out of stock

16

..COVER

35158-10FA0

2
Out of stock

17

.BULB (12V60/55W,H4)

09471-12060

1
Out of stock

18

BOLT (6X12)

09111-06107

2
Out of stock

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

20

NUT

08316-1005B

1
Out of stock
