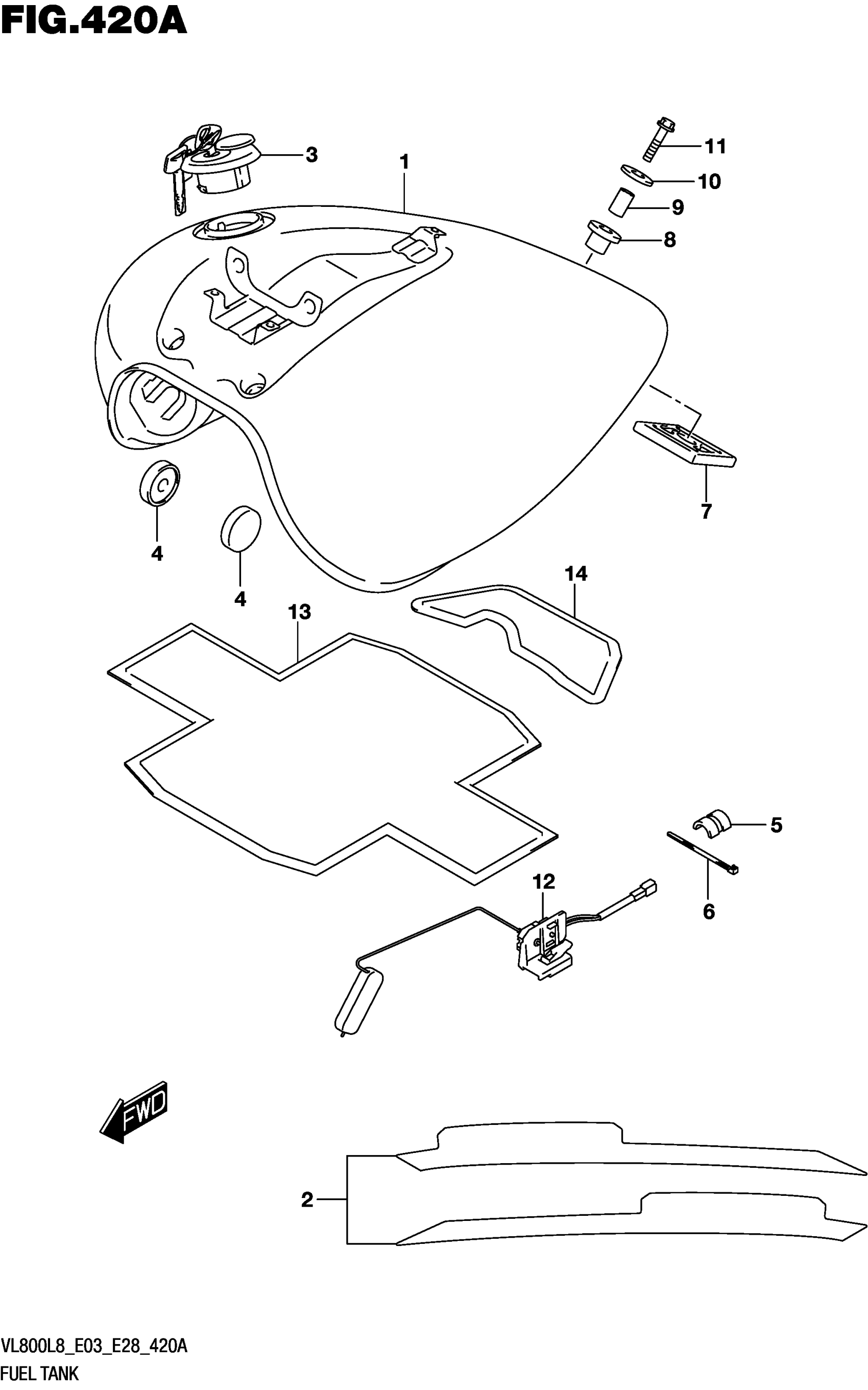

Suzuki VL800L8 (2018) FUEL TANK (VL800L8 E03) Diagram

#

Description
Price

1-1

TANK ASSY | FOR YVB

44100-43H30-ARX

Unavailable

1-2

TANK ASSY | FOR QEB

44100-43H30-QEB

$1,039.10

2-1

.TAPE SET | FOR ARX

68110-43H00-BQC

Unavailable

2-1

.TAPE SET

68110-43H00-BQC

Unavailable

2-2

.TAPE SET | FOR QEB

68110-43H00-BD7

$57.53

2-2

.TAPE SET

68110-43H00-BD7

$57.53

3

CAP SET,FUEL TA This part replaces 44200-41830.

44200-41832

$164.45

4

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

5

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

6

CLAMP (L:250)

09407-25402

$4.64

7

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

8

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

9

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

10

WASHER (8.5X33X1.5)

09160-08146

$2.60

11

BOLT (8X35)

01550-0835A

$3.04

12

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$112.19

13

SHIELD,FUEL TANK HEAT

44192-39G00

$148.62

14

SHIELD,FUEL TANK HEAT NO.2

44191-43H00

$87.70
