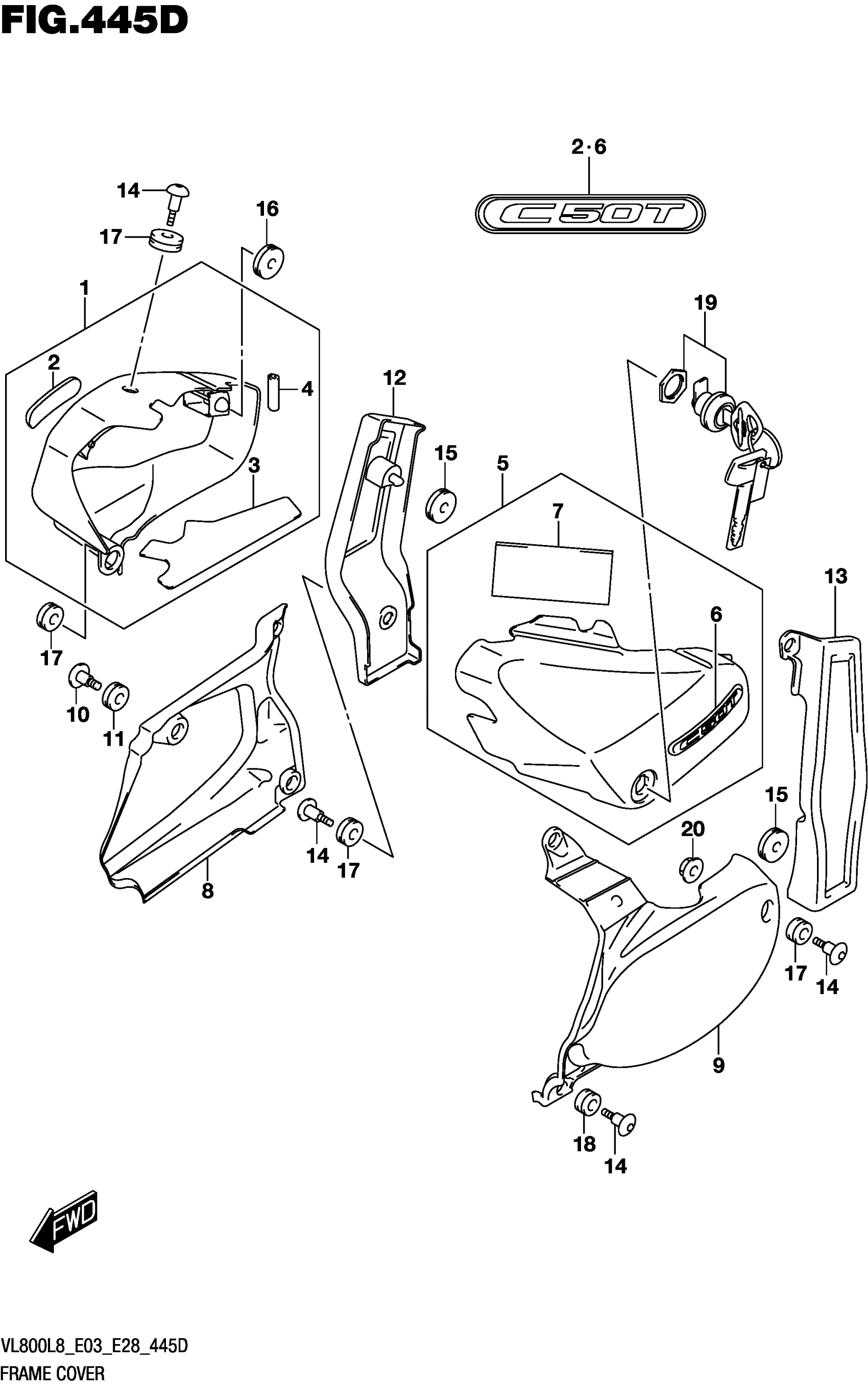

Suzuki VL800L8 (2018) FRAME COVER (VL800TL8 E03) Diagram

#

Description
Price

1

COVER

47110-43HA0-YVB

Unavailable

2

.EMBLEM, "C50T" (SILVER)

68131-43HA0-YES

Unavailable

3

.SHIELD,FRAME COVER

47166-41F00

$17.83

4

.MOLDING

94631-35F00

$7.40

5

COVER

47210-43HA0-YVB

$219.85

6

.EMBLEM, "C50T" (SILVER)

68131-43HA0-YES

Unavailable

7

.CUSHION,LUGGAGE BOX

47217-41F00

$11.98

8

COVER,SIDE LOWER RH

47130-41F00

$267.82

9

COVER,SIDE,LOWER LH

47231-41F00

$382.15

10

SCREW,SIDE COVER LOWER,R

47133-43H00

$6.03

11

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

12

COVER,SIDE RR RH (BLACK)

47141-41F01-019

$137.92

13

COVER,SIDE RR LH (BLACK)

47241-41F00-019

$137.92

14

SCREW (6X20)

09139-06126

$4.04

15

CUSHION (8x26x7)

09320-08018

$3.04

16

CUSHION (8X26X7)

09320-08028

$3.04

17

CUSHION (9X18X10)

09320-09501

$2.03

18

CUSHION This part replaces 09320-09045.

09320-09062

$2.00

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

20

NUT

08316-1006B

$2.50
