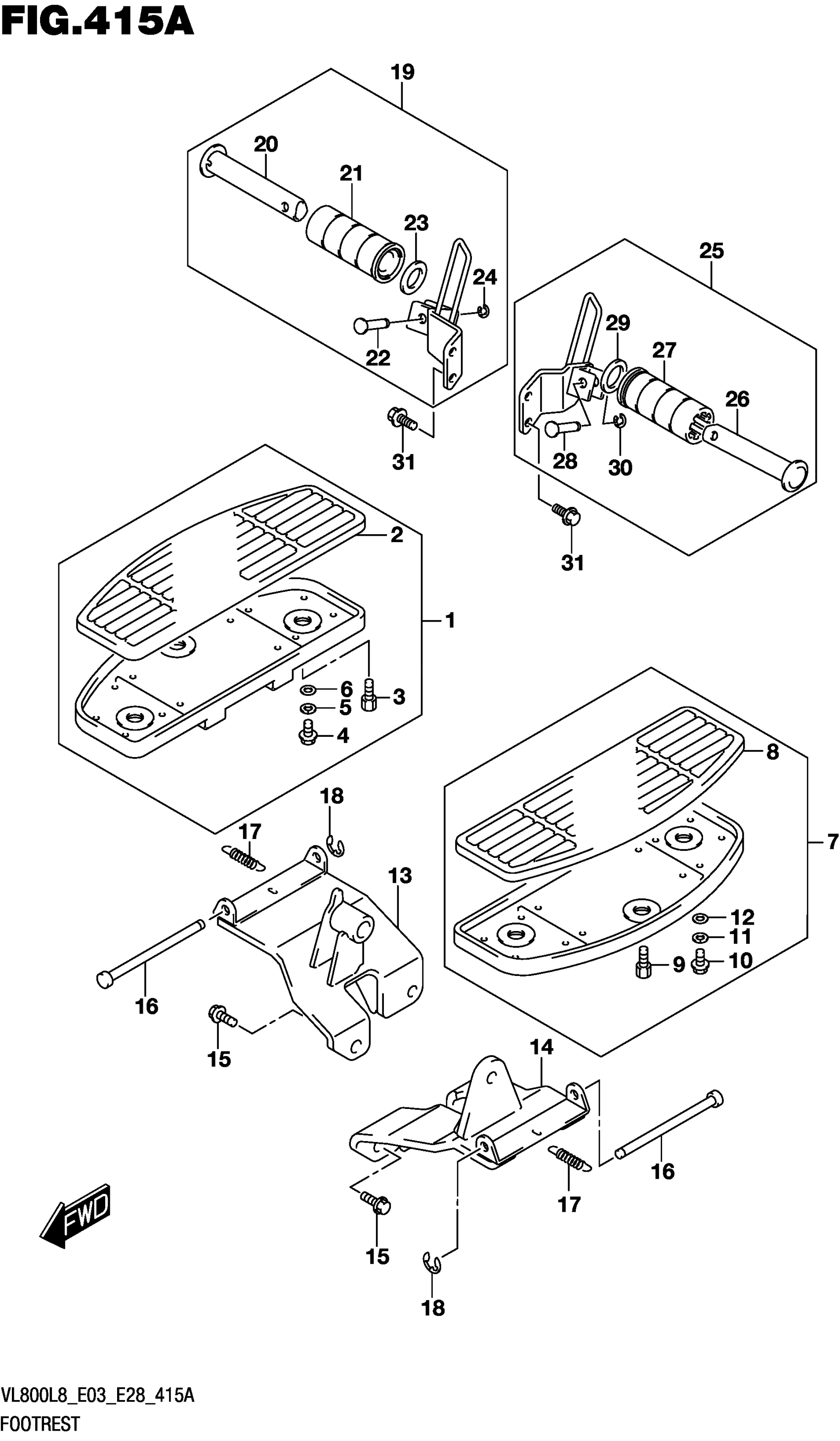

Suzuki VL800L8 (2018) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,FRONT RH This part replaces 43501-10F11.

43501-10F12

$209.05

2

.RUBBER,FR FOOTREST

43550-10F10

Unavailable

3

.BOLT,BANK SENSOR

43576-07D01

$8.85

4

BOLT

01550-0610A

$1.97

5

.WASHER (6.5X22X1.6)

09160-06158

$2.30

6

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

7

FOOTREST ASSY,FRONT LH This part replaces 43502-10F11.

43502-10F12

$209.05

8

.RUBBER,FR FOOTREST

43550-10F10

Unavailable

9

.BOLT,BANK SENSOR

43576-07D01

$8.85

10

BOLT

01550-0610A

$1.97

11

.WASHER (6.5X22X1.6)

09160-06158

$2.30

12

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

13

BRACKET,FR FOOTREST RH

43510-41F30

$96.75

14

BRACKET,FR FOOTREST LH

43520-41F30

$100.02

15

BOLT

01580-1030B

$5.18

16

PIN,FRONT FOOTREST

43539-10F00

$8.13

17

SPRING

09443-11033

$4.50

18

E-RING

08332-1106A

$1.49

19

FOOTREST ASSY,PILLION RH

43600-41F60

$79.75

20

.BAR,PILLION FOOTREST

43610-39G10

$16.68

21

.RUBBER,PILLION FOOTREST

43612-39G00

$10.02

22

.PIN,PILLION FOOTREST

43636-25D00

$10.65

23

.WASHER (19.5X32X2)

09160-19024

$2.65

24

E-RING

08332-1104B

$1.78

25

FOOTREST ASSY,PILLION LH

43700-41F60

$79.75

26

.BAR,PILLION FOOTREST

43610-39G10

$16.68

27

.RUBBER,PILLION FOOTREST

43612-39G00

$10.02

28

.PIN,PILLION FOOTREST

43636-25D00

$10.65

29

.WASHER (19.5X32X2)

09160-19024

$2.65

30

E-RING

08332-1104B

$1.78

31

BOLT (8X16)

09103-08412

$3.03
