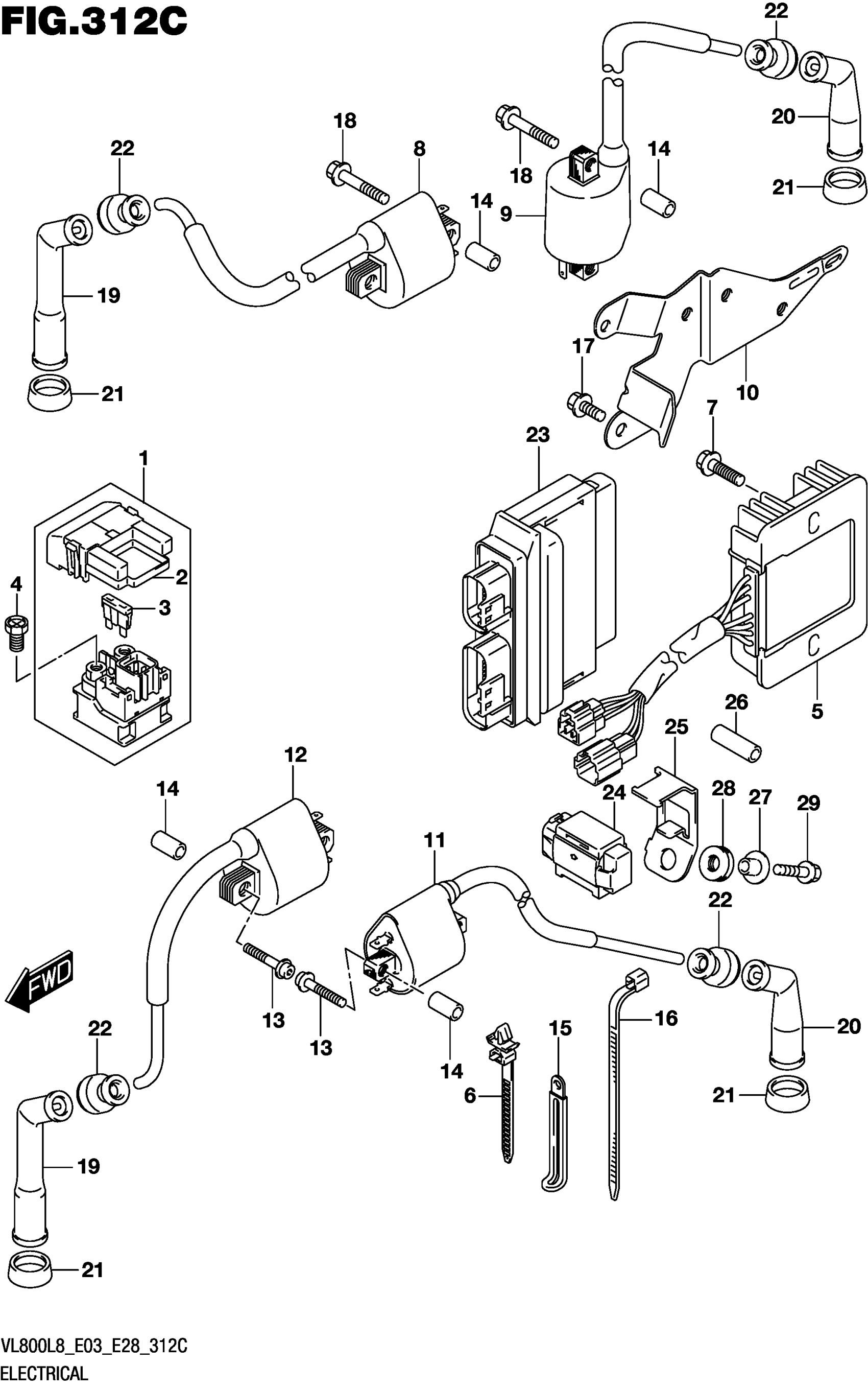

Suzuki VL800L8 (2018) ELECTRICAL (VL800L8 E33) Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$67.32

.COVER

31861-47E00

$16.15

.FUSE (30A)

09481-30101

$2.26

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-47H00

$263.17

CLAMP (L:90)

09407-11402

$1.80

SCREW

02162-0620B

$2.28

COIL ASSY

33410-39G00

$124.28

COIL ASSY | FOR RS

33410-39G10

$124.28

BRACKET,IGN COIL REAR

33414-39G00

Unavailable

COIL ASSY | FOR FS

33420-39G00

$124.28

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$86.43

BOLT (5X35)

09106-05033

$3.50

SPACER (6.4X10X18)

09180-06195

$3.68

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

CLAMP (L:190)

09407-19401

$3.05

BOLT

01547-0610A

$2.45

BOLT

01547-0635A

$2.30

CAP ASSY, SPARK PLUG (CENTER)

33510-11410

$25.95

CAP,SPARK PLUG (SIDE)

33510-38B00

$31.72

SEAL,SPARK PLUG

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-48H01

$4.37

CONTROL UNIT,FI

32920-39GJ0

$1,049.63

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

BRACKET,FUEL CUT SENSOR

33961-41F00

Unavailable

HOSE,5X10X600 | CUT AS REQUIRED PROFILE This part replaces 09352-50823-600.

44421-13ER0

$10.06

HOSE,5X10X600 | L:10 This part replaces 09352-50823-600.

44421-13ER0

$10.06

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

BOLT

01547-0616A

$2.03
