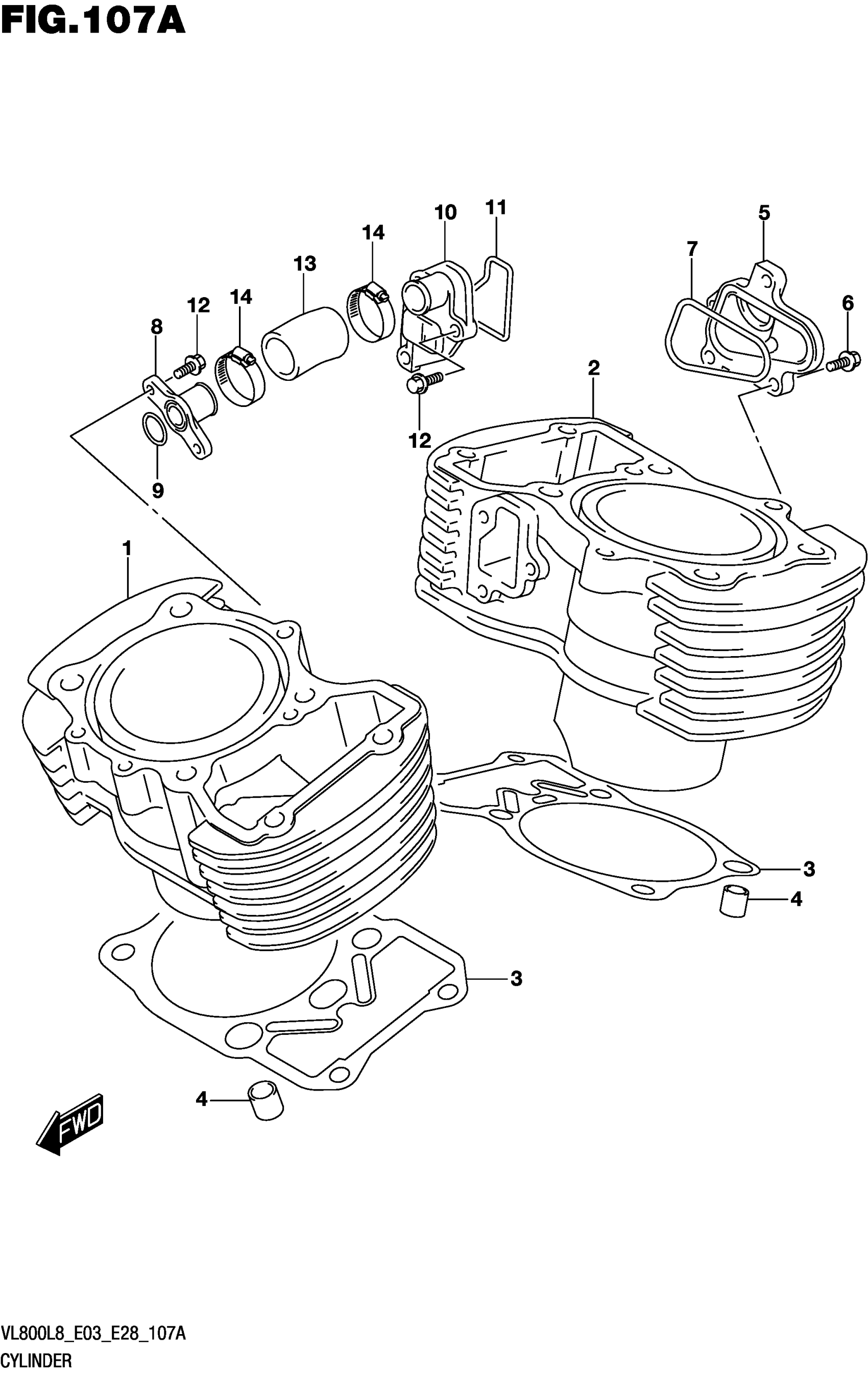

Suzuki VL800L8 (2018) CYLINDER Diagram

#

Description
Price

1

CYLINDER,FRONT

11210-39G00-0F0

$716.69

2

CYLINDER,REAR

11220-39G00-0F0

$843.15

3

.GASKET,CYLINDER

11241-39G00

$14.45

4

PIN (10.4X13X18)

04211-13189

$2.19

5

CONNECTOR,CYL INLET PIPE

11237-41F00

$44.48

6

BOLT

01547-0620A

$2.03

7

O-RING,INLET WATER CHAMBER

11247-38A00

$3.56

8

UNION,CYL INLET

11235-41F00

$25.52

9

O-RING (D:2.4,ID:15.8)

09280-16005

$2.23

10

UNION,CYL OUTLET

17892-41F00

$32.10

11

O-RING,CYL OUTLET UNION

17899-41F00

$7.23

12

BOLT

01547-0616A

$2.03

13

HOSE,CYL JOINT

17853-38A10

$5.17

14

CLAMP

09402-28513

$6.88
