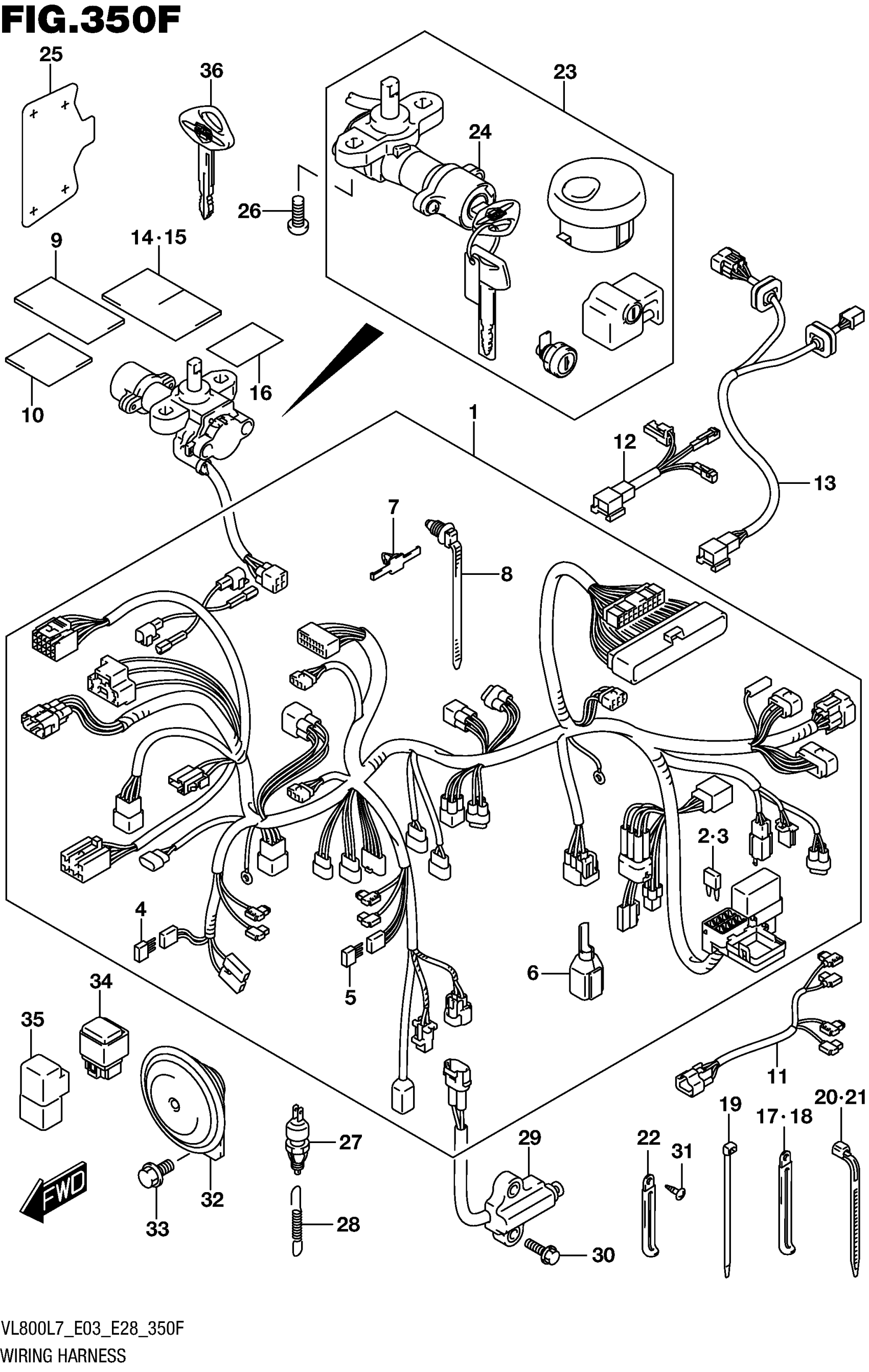

Suzuki VL800L7 (2017) WIRING HARNESS (VL800TL7 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-43H70

$704.83

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (20A)

09481-20501

Unavailable

4

.RECTIFIER ASSY

32800-16A00

$23.07

5

.DIODE

36611-38A10

$13.16

6

.BOOT

36717-41F00

Unavailable

7

.CLAMP

09407-05410

Unavailable

8

.CLAMP (L:154)

09407-17403

$4.91

9

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

10

TAPE WIRING (30X50X3)

36611-41F00

Unavailable

11

WIRE, IGNITION COIL LEAD

36854-39G00

Unavailable

12

WIRE, REARCOMBINATIONNO.2

36856-41F00

$36.82

13

WIRE,RR COMB This part replaces 36858-41F00.

36858-41F01

$32.63

14

PROTECTOR, HARNESS (30X50X3)

36920-33C00

Unavailable

15

PROTECTOR, HARNESS (30X50X3)

36920-33C00

Unavailable

16

PROTECTOR, WIRING HARNESS

94474-17H00

$4.58

17

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

18

CLAMP (L:135)

09404-06435

$3.68

19

CLAMP (L:145)

09407-14407

$3.57

20

CLAMP (L:165)

09407-18402

$2.19

21

CLAMP (L:190)

09407-19401

$3.05

22

CLAMP (L:45)

09404-06429

$1.83

23

LOCK SET This part replaces 37102-41880.

37102-41883

$318.77

24

.LOCK ASSY,STEERING This part replaces 37100-41F70.

37100-41F71

$152.57

25

PROTECTOR, IGNITION SWITCH

37187-41F10

$12.17

26

BOLT (8X20)

09139-08016

$3.37

27

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

28

SPRING

09443-06073

$3.42

29

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

30

BOLT (6X20)

01550-0620A

$1.97

31

SCREW

03541-0512A

$1.49

32

HORN ASSY

38500-41F30

$87.70

33

BOLT (8X16)

01550-0816A

$2.32

34

RELAY ASSY, HEAD LAMP

38740-24A00

$63.30

35

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

36

KEY, BLANK "BOULEVARD" | OPT

37146-41FA0

$50.63
