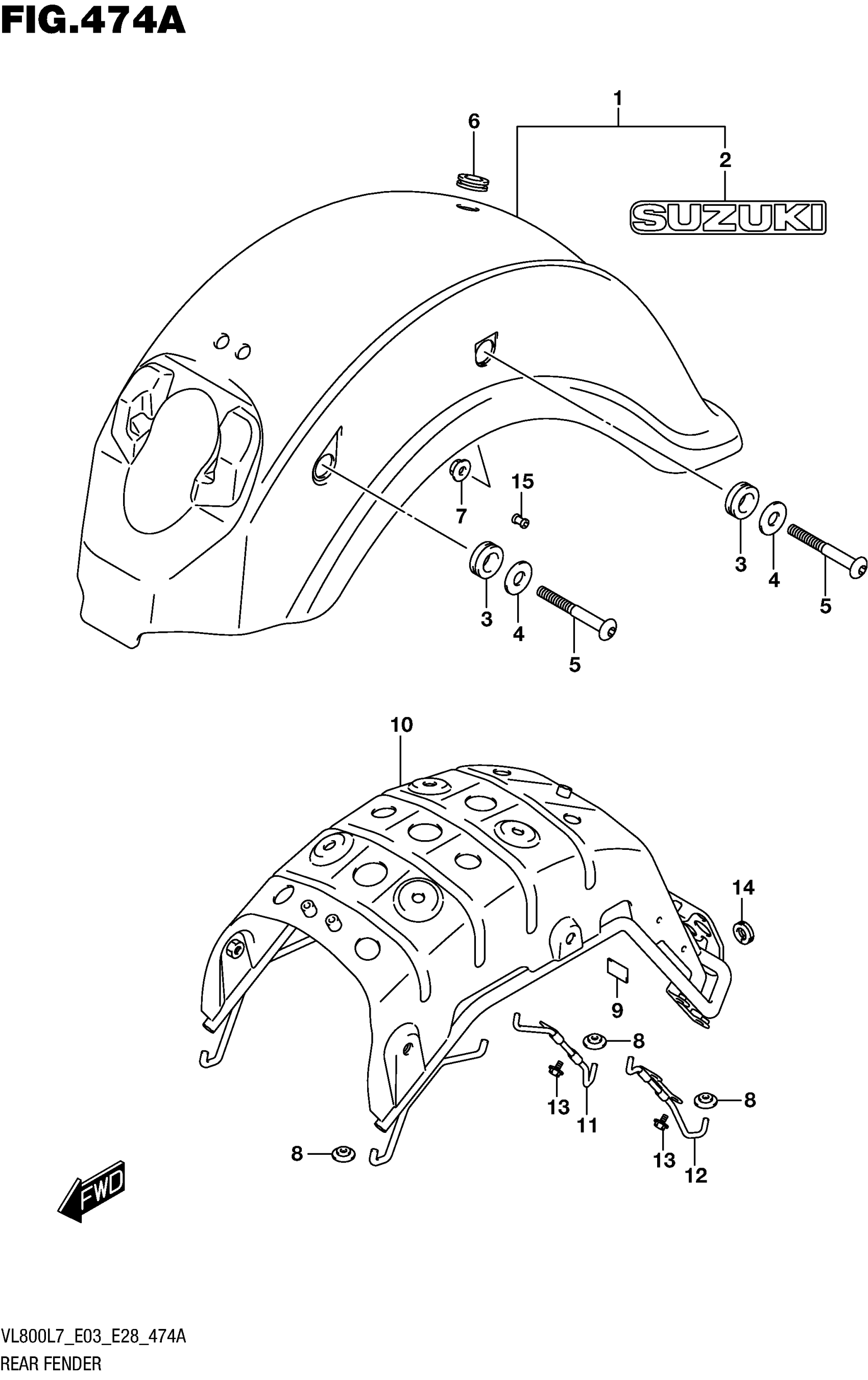

Suzuki VL800L7 (2017) REAR FENDER (VL800L7 E03) Diagram

#

Description
Price

1-1

FENDER,REAR This part replaces 63110-43H00-YVB.

63110-43H01-YVB

$522.27

1-2

FENDER,REAR This part replaces 63110-43H00-YWW.

63110-43H01-YWW

$608.97

2-1

.EMBLEM,"SUZUKI" (SILVER) | FOR YVB This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

2-2

EMBLEM,"SUZUKI" | FOR YWW This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

3

CUSHION

47191-24F00

$5.17

4

WASHER (15.5X26X2.3)

09160-15002

$1.91

5

BOLT

63161-41F00

$9.40

6

CUSHION

09320-15008

$3.89

7

NUT

08316-1008B

$2.66

8

CUSHION

09320-06026

$4.10

9

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.12

10

PLATE, REAR FENDER

63130-43H00

$421.08

11

BRACKET, LOWER RH

63150-43H00

$40.98

12

BRACKET, LOWER LH

63160-43H00

$40.98

13

BOLT

01550-0610B

$2.42

14

GROMMET

09308-10017

$5.20

15

PLUG (OD:9)

09250-07004

$3.42
