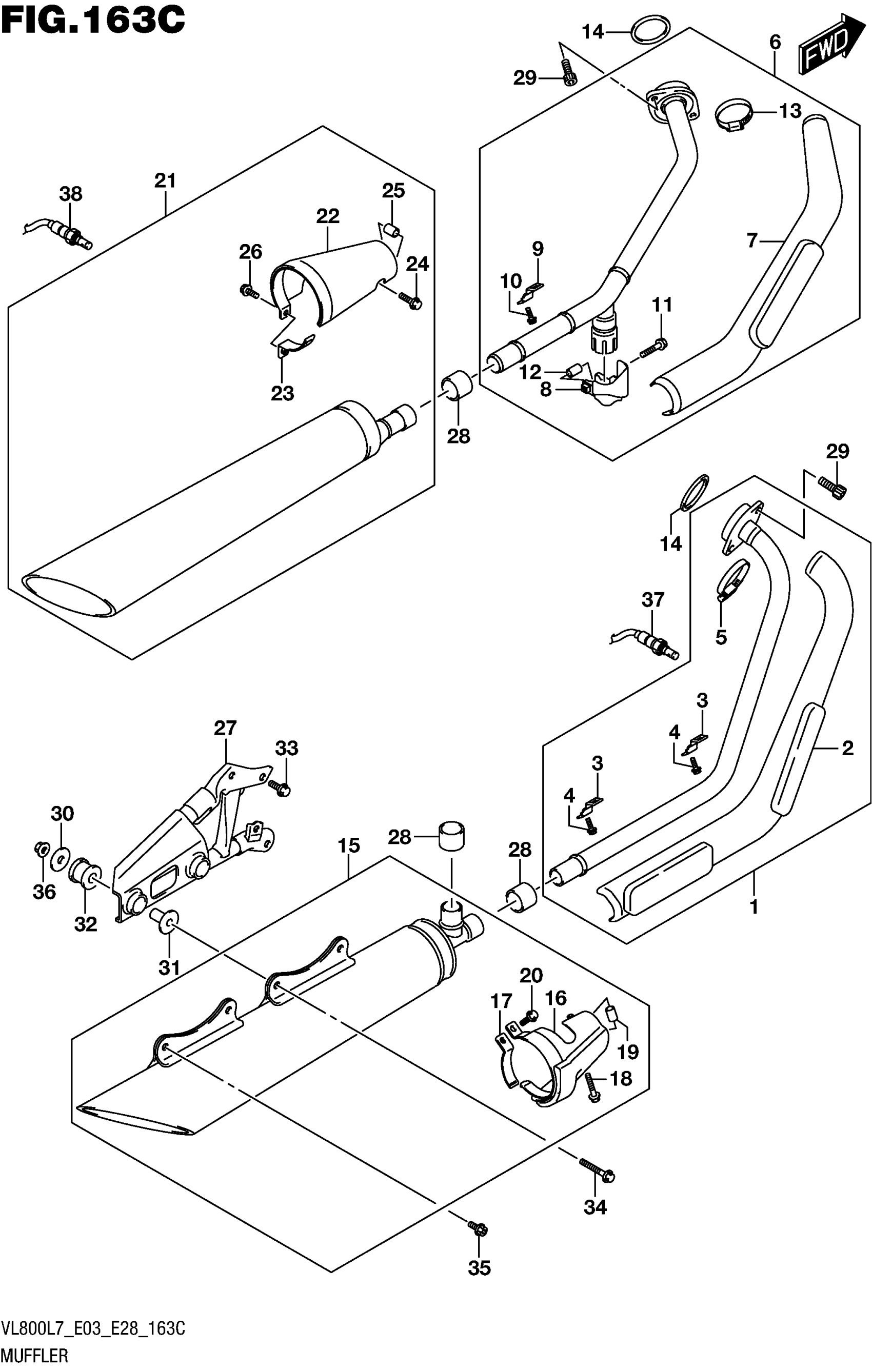

Suzuki VL800L7 (2017) MUFFLER (VL800L7 E33) Diagram

#

Description
Price

1

PIPE, EXHAUST FR

14150-39G10

Unavailable

2

.COVER

14193-39G00

Unavailable

3

.CLAMP

14185-41F00

$49.60

4

.BOLT

07120-0616A

$2.53

5

.BAND

14185-39G00

Unavailable

6

PIPE, EXHAUST RR

14160-39G00

$303.48

7

.COVER

14194-39G00

Unavailable

8

.CLAMP, CONNECTOR

14195-39G00

Unavailable

9

.CLAMP

14185-41F00

$49.60

10

.BOLT

07120-0616A

$2.53

11

.BOLT (8X35)

09103-08365

$3.91

12

.SPACER

14167-22H00

$17.37

13

.BAND

14185-39G00

Unavailable

14

GASKET, EXHAUST

14181-10F00

$12.91

15

MUFFLER, FR

14310-39G10-H01

$1,451.23

16

.COVER

14344-39G00

$246.30

17

.CLAMP

14399-22H00

$33.15

18

.BOLT (8X35)

09103-08365

$3.91

19

.SPACER

14167-22H00

$17.37

20

.BOLT

07120-0616A

$2.53

21

MUFFLER, RR

14340-39G10-H01

$1,347.58

22

.COVER

14345-39G00

$171.88

23

.CLAMP

14399-22H00

$33.15

24

.BOLT (8X35)

09103-08365

$3.91

25

.SPACER

14167-22H00

$17.37

26

.BOLT

07120-0616A

$2.53

27

BRACKET

14410-39G00

Unavailable

28

CONNECTOR,MUFFLER

14771-39G00

$27.55

29

BOLT (8X25)

09106-08178

$3.24

30

WASHER (8.5X33X1.5)

09160-08146

$2.60

31

SPACER (8.6X12X27.1)

09180-08156

$6.70

32

CUSHION

09320-12049

$10.68

33

BOLT (8X16) This part replaces 09103-08283-A05.

09103-08570

$2.34

34

BOLT

01550-0845B

$3.42

35

BOLT (8X20)

09106-08107

$2.81

36

NUT

08361-2508A

$1.97

37

SENSOR, OXY FR

18213-15H10

$399.52

38

SENSOR, OXY RR

18213-23H20

$300.63
