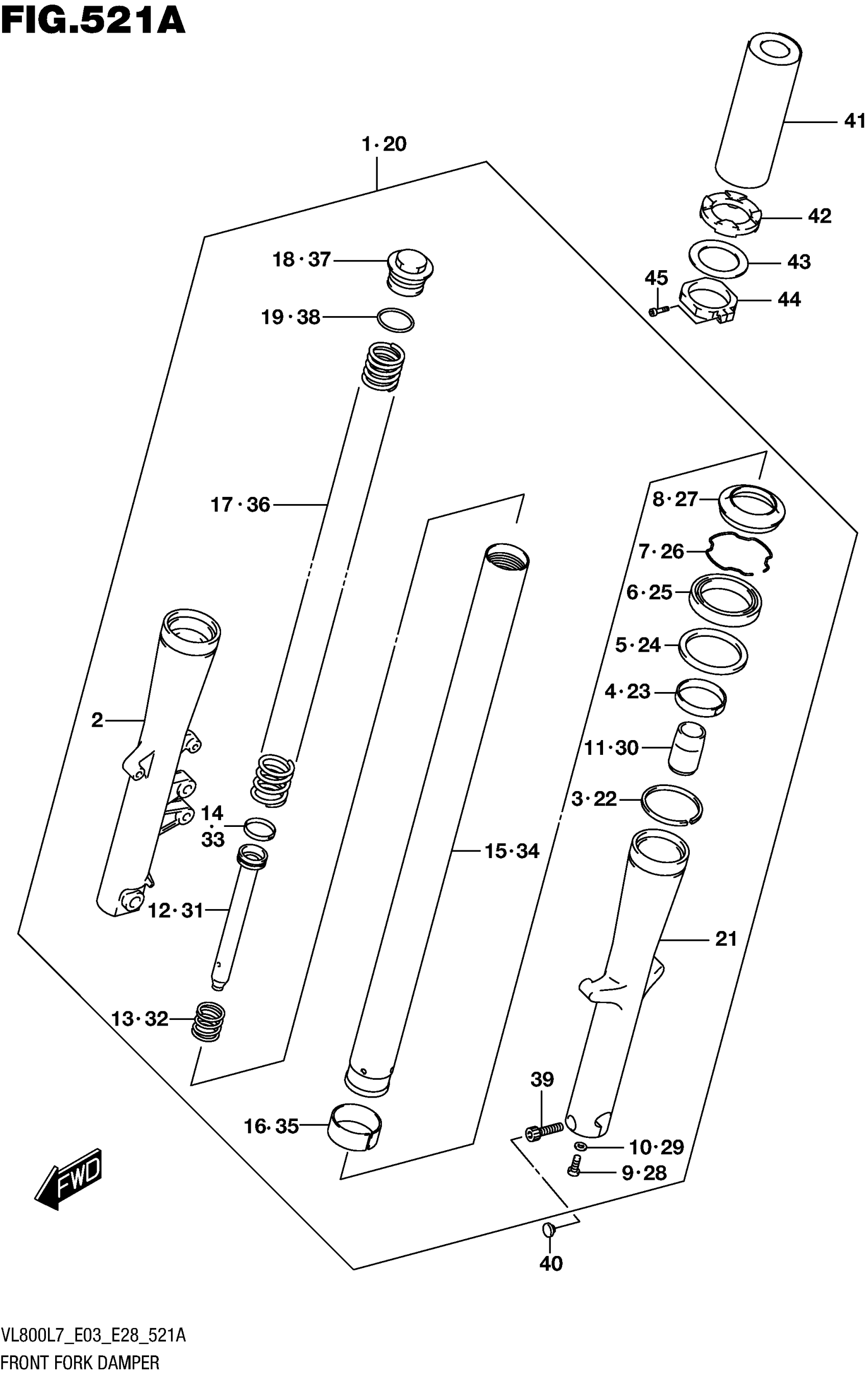

Suzuki VL800L7 (2017) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,RH This part replaces 51103-41F40.

51103-41F41

$834.37

2

.TUBE, OUTER RH

51131-41F20

$583.83

3

.GUIDE, CASE

51469-41F21

$17.70

4

.BUSH, GUIDE

51152-11D60

$14.26

5

.SPACER, SEAL

51168-38B00

$6.49

6

.SEAL, OIL

51153-08D00

$22.96

7

.RING

51556-38B00

$7.22

8

.SEAL, DUST

51571-47D50

$21.90

9

.BOLT

51147-06F10

$5.98

10

.GASKET

51148-36011

$3.56

11

.PIECE, OIL LOCK

51195-10F00

$30.22

12

.SEAT, PIPE

51146-10F00

Unavailable

13

.SPRING, REBOUND

51177-10F00

Unavailable

14

.RING

51196-47D00

$8.83

15

.TUBE, INNER

51110-41F40

$505.98

16

.BUSH, SLIDE

51121-42E00

$18.32

17

.SPRING, FRONT

51171-41F40

Unavailable

18

.BOLT, FORK

51189-47D50

$52.23

19

.O-RING

51117-12C00

$3.89

20

DAMPER FRONT,LH This part replaces 51104-41F40.

51104-41F41

$762.97

21

.TUBE, OUTER LH

51141-41F20

$583.83

22

.GUIDE, CASE

51469-41F21

$17.70

23

.BUSH, GUIDE

51152-11D60

$14.26

24

.SPACER, SEAL

51168-38B00

$6.49

25

.SEAL, OIL

51153-08D00

$22.96

26

.RING

51556-38B00

$7.22

27

.SEAL, DUST

51571-47D50

$21.90

28

.BOLT

51147-06F10

$5.98

29

.GASKET

51148-36011

$3.56

30

.PIECE, OIL LOCK

51195-10F00

$30.22

31

.SEAT, PIPE

51146-10F00

Unavailable

32

.SPRING, REBOUND

51177-10F00

Unavailable

33

.RING

51196-47D00

$8.83

34

.TUBE, INNER

51110-41F40

$505.98

35

.BUSH, SLIDE

51121-42E00

$18.32

36

.SPRING, FRONT

51171-41F40

Unavailable

37

.BOLT, FORK

51189-47D50

$52.23

38

.O-RING

51117-12C00

$3.89

39

.BOLT

07130-10357

$5.18

40

CAP (OD:12)

09250-08014

$2.85

41

CASE, UNDER

51464-41F21

$169.35

42

SEAT, RUBBER

51468-10F00

$21.83

43

WASHER

51467-10F70

$12.65

44

SPACER

51465-41F20

$53.50

45

BOLT

51466-10F00

$7.53
