Description

Price

1

CALIPER ASSY, FRONT RH

59100-33DB1-999

Unavailable

2

.PISTON SET

59301-20810

$63.73

3

..SEAL SET, PISTON

59300-33841

$15.45

4

.SPRING, PAD RH

59115-33D00

$14.90

5

.BOOT

59112-44B00

$8.91

6

.PIN, PAD

59141-44B01

$9.09

7

.INSULATOR, AXLE

59313-36500

$5.99

8

.CLIP, PAD PIN

69142-45000

$4.34

9

.CARRIER, CALIPER RH

59150-33D01

$109.85

10

.GUIDE, PAD

59116-33D00

$7.97

11

.BLEEDER

59121-18410

$8.73

12

.CAP

55156-66310

$5.17

13

PAD SET

59102-33820

$54.32

14

BOLT (10X30)

09103-10379

$4.52

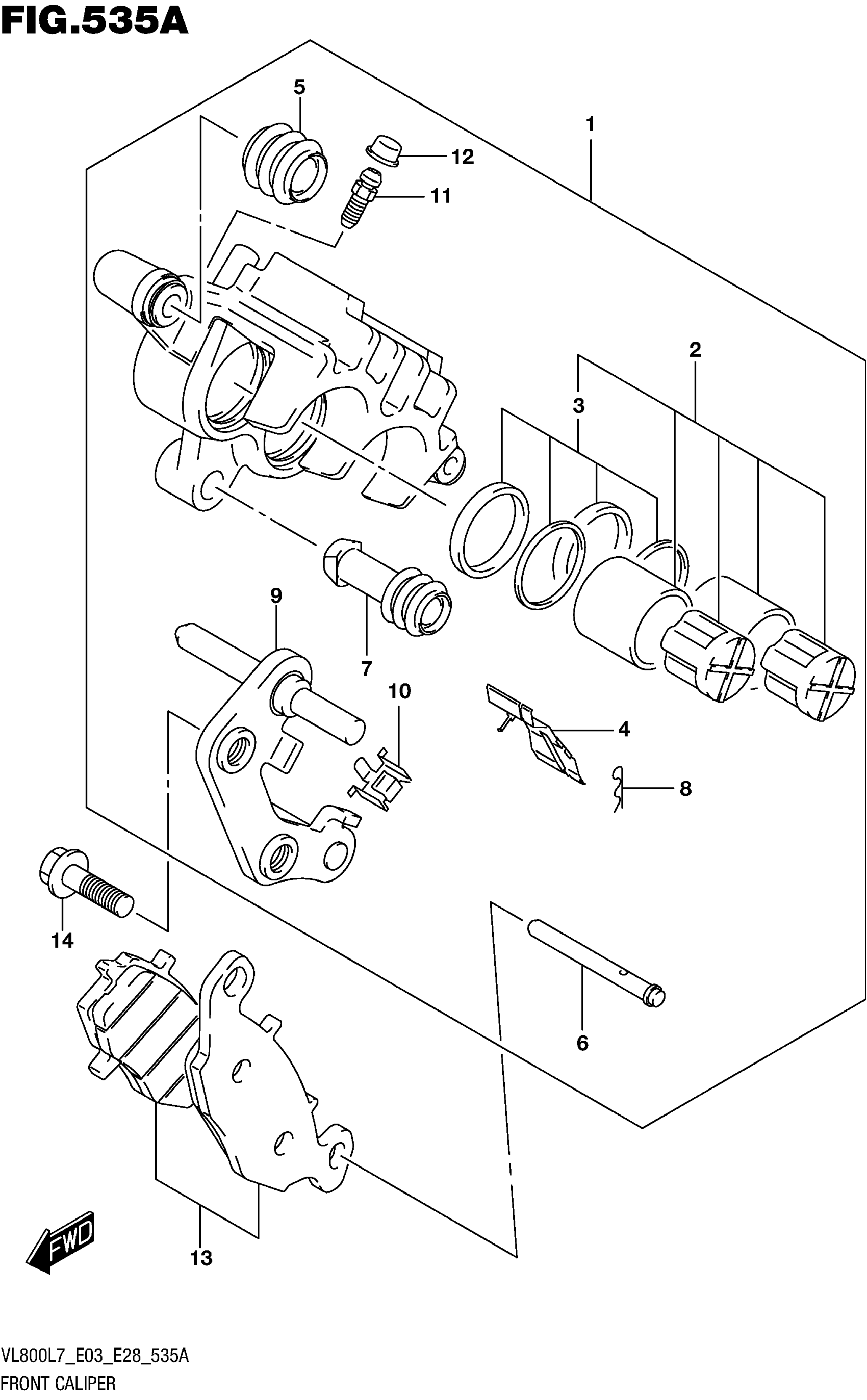

Suzuki VL800L7 (2017) FRONT CALIPER Diagram
