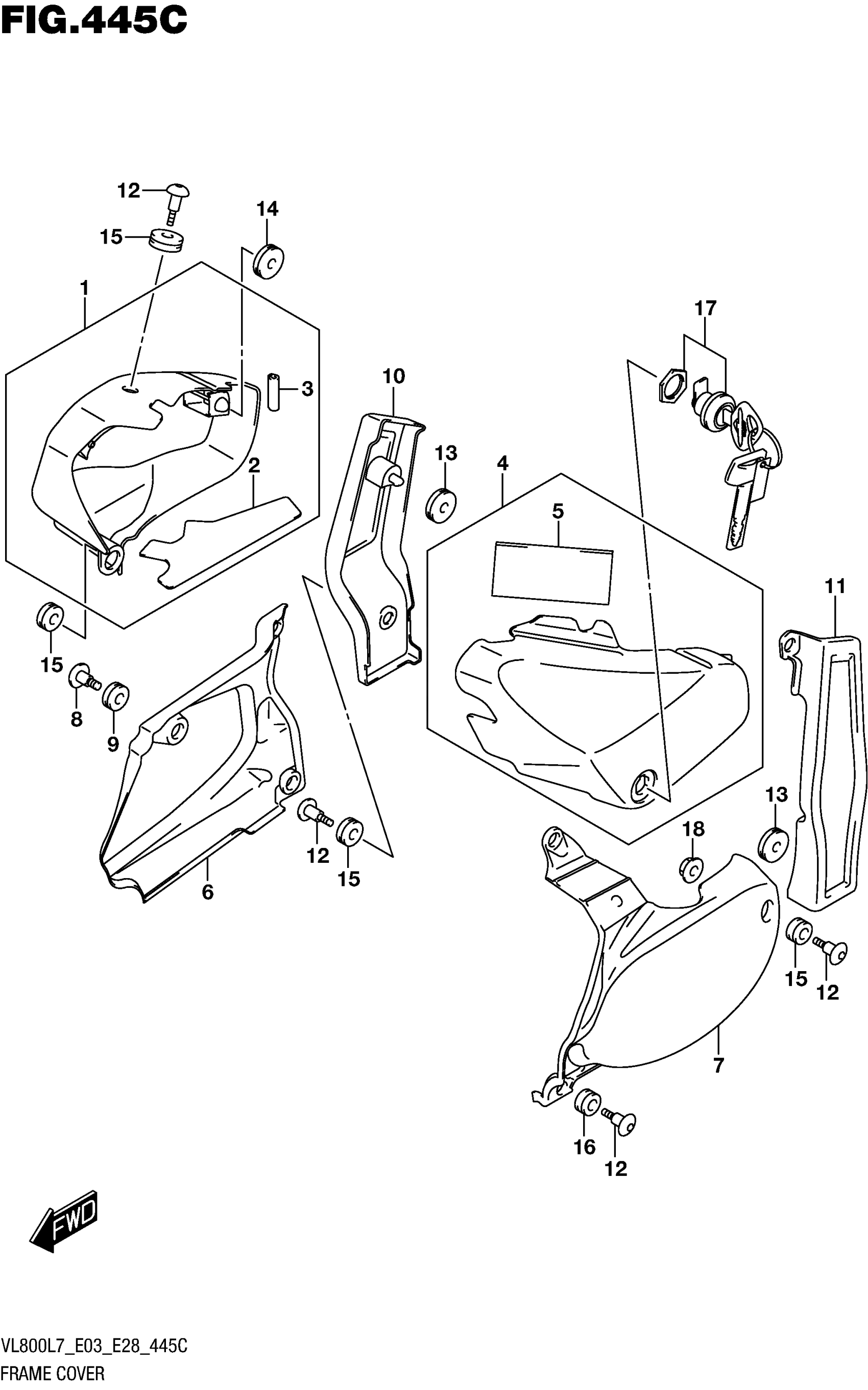

Suzuki VL800L7 (2017) FRAME COVER (VL800L7 E33) Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK)

47110-43H20-YVB

$246.93

1-2

COVER, FRAME RH (WHITE)

47110-43H20-YWW

Unavailable

2

.SHIELD, FRAME COVER RH

47166-41F00

$20.13

3

.MOLDING, RH

94631-35F00

$8.35

4-1

COVER, FRAME LH (BLACK)

47210-43H10-YVB

$246.93

4-2

COVER, FRAME LH (WHITE)

47210-43H10-YWW

Unavailable

5

.CUSHION, LH

47217-41F00

$13.53

6

COVER, SIDE LOWER RH

47130-41F00

Unavailable

7

COVER, SIDE LOWER LH

47231-41F00

$429.23

8

SCREW

47133-43H00

$7.98

9

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

10

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$155.65

11

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

12

SCREW (6X20)

09139-06126

$3.65

13

CUSHION

09320-08018

$2.80

14

CUSHION

09320-08028

$2.80

15

CUSHION

09320-09501

$2.06

16

CUSHION This part replaces 09320-09045.

09320-09062

$2.14

17

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

18

NUT

08316-1006B

$2.50
