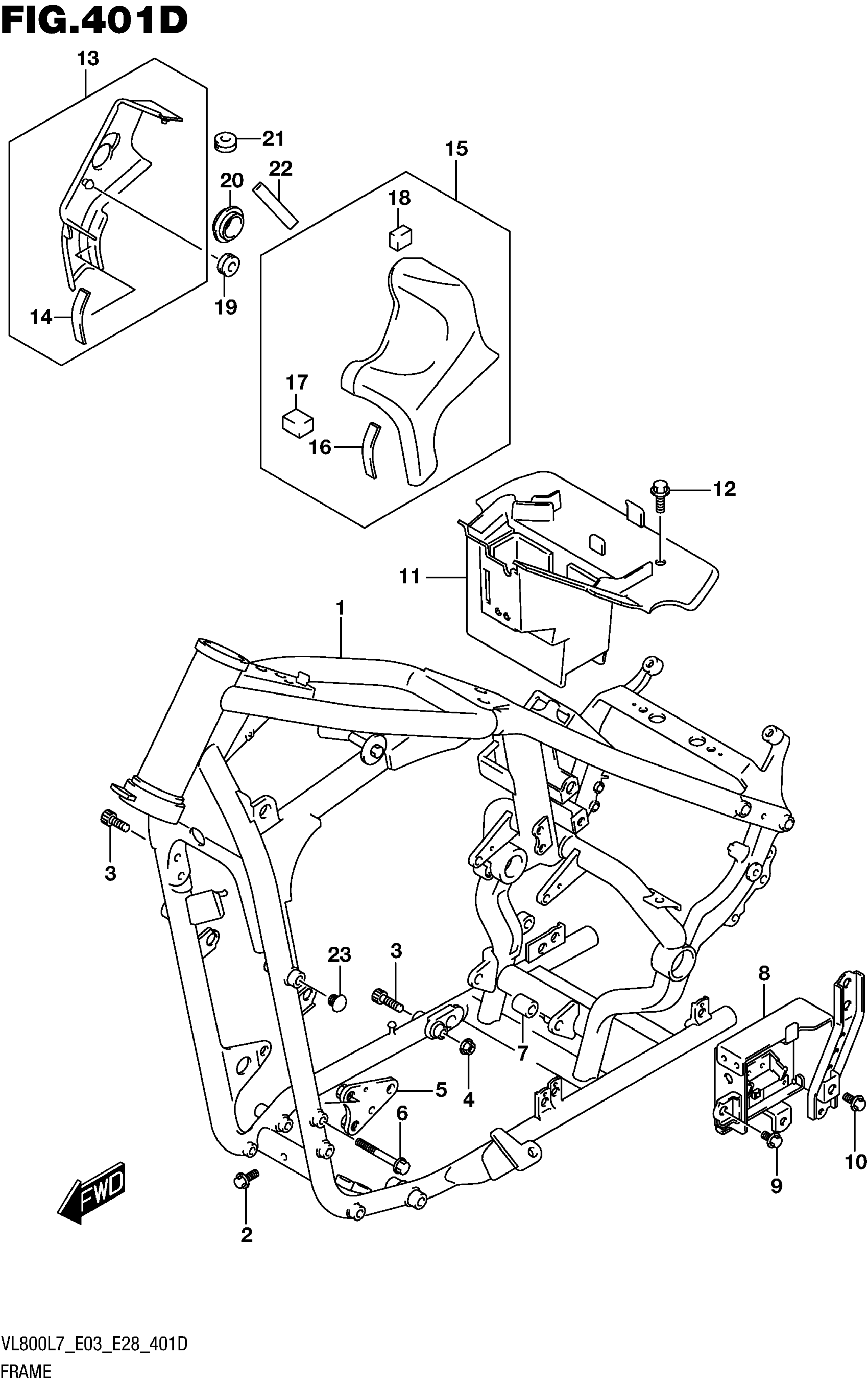

Find the part on the Frame diagram for your 2017 Suzuki VL800L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki VL800L7 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-41F80-019

1
Out of stock

2

BOLT (8X16)

01550-0816A

2
Out of stock

3

BOLT

07130-1035B

4
Out of stock

4

NUT

08319-3110B

4
Out of stock

5

PLATE, ENGINE MOUNT LH

41920-41F00

1
Out of stock

6

BOLT (8X65)

09112-08013

2
Out of stock

7

SPACER, LOWER

41941-41F00

1
Out of stock

8

HOLDER, ELECTRIC PARTS

41540-41F30

1
Out of stock

9

BOLT

01547-0612A

1
Out of stock

10

BOLT (8X16)

01550-0816A

2
Out of stock

11

HOLDER, ELECTRIC PARTS

47410-41F02

1
Out of stock

12

BOLT (6X16)

09113-06010

4
Out of stock

13

COVER,FRAME HEAD,R (BLACK) This part replaces 47350-41F10-019.

47350-41F30-019

1
Out of stock

14

.CUSHION

53145-40A00

2
Out of stock

15

COVER,FRAME HEAD,L (BLACK) This part replaces 47360-41F12-019.

47360-41F40-019

1
Out of stock

16

.CUSHION

53145-40A00

1
Out of stock

17

.CUSHION, LH LOWER

53146-05G00

1
Out of stock

18

.CUSHION, FRONT

94422-06G00

1
Out of stock

19

CUSHION

09320-08018

2
Out of stock

20

CAP, HEAD COVER RH

47355-41F01

1
Out of stock

21

CUSHION

09320-09501

2
Out of stock

22

CUSHION, FRAME HEAD COVER LOW

17798-39G00

1
Out of stock

23

CAP This part replaces 09250-09001.

09250-09008

1
Out of stock
