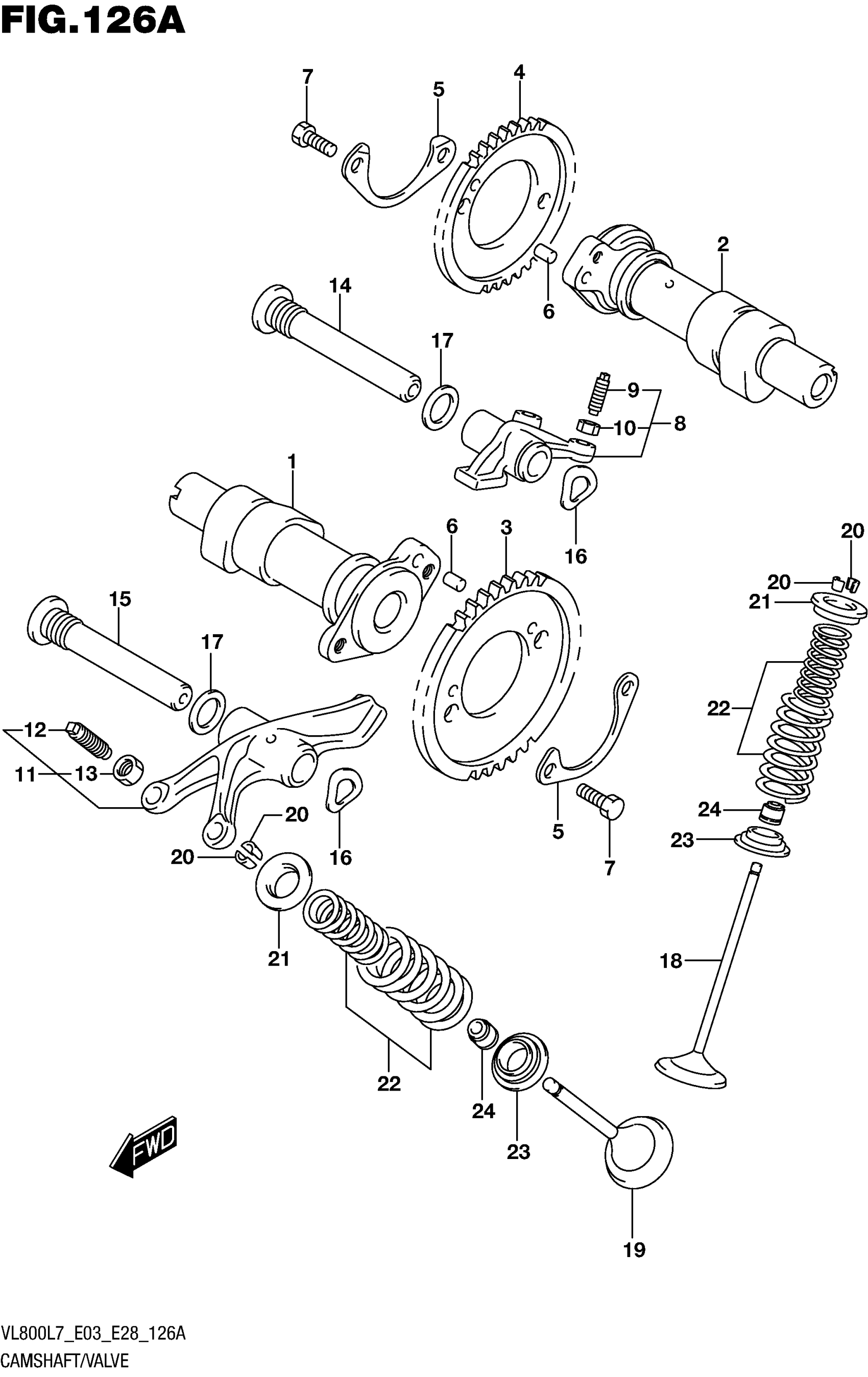

Suzuki VL800L7 (2017) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12711-41F00

$215.93

2

CAMSHAFT, REAR

12713-41F00

$215.93

3

SPROCKET, CAMSHAFT FRONT

12741-41F00

$62.48

3

(NT:46)

12741-41F00

$62.48

4

SPROCKET, CAMSHAFT REAR

12741-37400

Unavailable

4

(NT:42)

12741-37400

Unavailable

5

WASHER

12747-44001

$2.50

6

PIN

04221-05109

$1.49

7

BOLT (6X12.5)

09100-06169

Unavailable

8

ARM, VALVE ROCKER INTAKE

12840-38A11

$87.45

9

.SCREW

12842-38A00

$6.17

10

.NUT, ADJUSTING SCREW

12843-32400

$2.79

11

ARM, VALVE ROCKER EXHAUST

12850-38A10

$94.45

12

.SCREW

12842-38A00

$6.17

13

.NUT, ADJUSTING SCREW

12843-32400

$2.79

14

SHAFT, VALVE ROCKER ARM INTAK

12861-39G00

Unavailable

15

SHAFT, VALVE ROCKER ARM

12871-39G00

Unavailable

15

EXHAUST

12871-39G00

Unavailable

16

WASHER

09164-12018

$1.49

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

18

VALVE, INTAKE

12911-38A03

$36.45

19

VALVE, EXHAUST

12912-38A03

$60.68

20

COTTER, VALVE

12932-24400

$1.94

21

RETAINER, SPRING

12931-33201

$8.28

22

SPRING SET, VALVE

12920-38A00

$14.34

23

SEAT, SPRING

12933-33201

$6.05

24

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70
