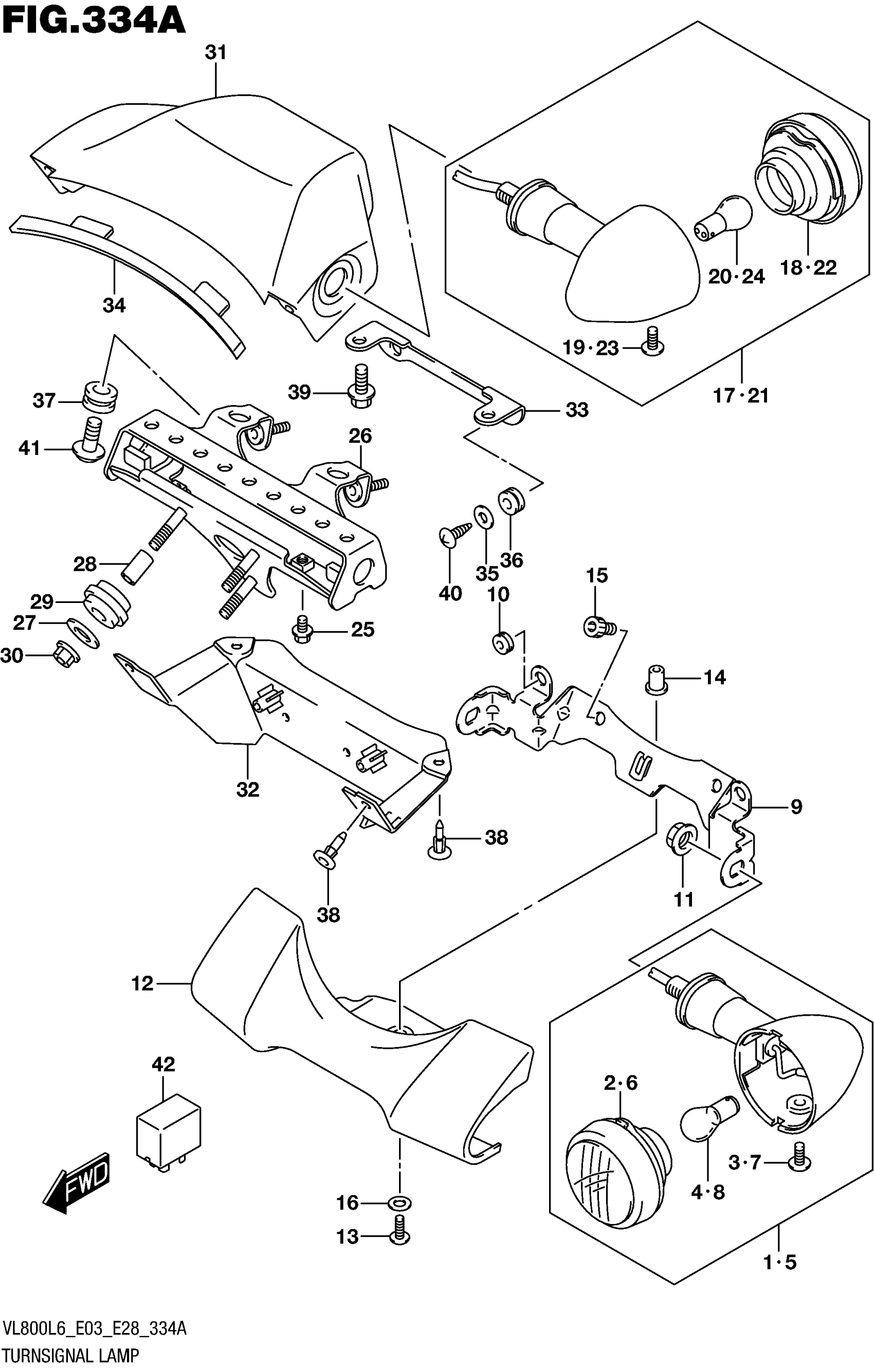

Suzuki VL800L6 (2016) TURNSIGNAL LAMP (VL800L6 E03) Diagram

#

Description
Price

1

FRONT TURNSIGNAL ASSY, RH

35601-41FC0

$135.57

2

.LENS

35610-38AA0

$31.91

3

.SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

FRONT TURNSIGNAL ASSY, LH

35602-41FC0

$134.90

6

.LENS

35630-38AA0

$31.91

7

.SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

9

BRACKET This part replaces 35616-41FA2.

35616-41FA3

$60.63

10

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

11

NUT

08310-0010B

$2.70

12

COVER, FRONT TURNSIGNAL

35641-41F02

$90.20

13

SCREW (5X16)

09139-05042

$2.90

14

NUT

09159-05019

$7.14

15

BOLT

07130-0812B

$4.10

16

WASHER

09160-05048

$2.02

17

LAMP ASSY, REAR RH

35603-38AH0

$140.17

18

.LENS, RH

35610-38AH0

$39.00

19

.SCREW (4X10)

35623-38AA0

$5.11

20

.BULB (12V,21W)

09471-12045

$3.27

21

LAMP ASSY, REAR LH

35604-38AH0

$134.90

22

.LENS, LH

35630-38AH0

$39.00

23

.SCREW (4X10)

35623-38AA0

$5.11

24

.BULB (12V,21W)

09471-12045

$3.27

25

BOLT (6X14)

09103-06507

$4.32

26

BRACKET, RR TURN

35620-43H01

$53.98

27

WASHER (6.5X20X1.2)

09160-06077

$1.91

28

SPACER (6.4X10X18)

09180-06195

$3.68

29

CUSHION

09320-10504

$5.78

30

NUT

08316-1006A

$2.19

31

COVER, RR TURN UPPER

35621-43H00

$111.15

32

COVER, RR TURN LOWER

35622-06J00

$42.77

33

BRACKET, RR TURN COVER

35623-43H00

$10.58

34

GASKET, RR TURN COVER

35657-43H00

$8.28

35

WASHER (4.3X14X0.8)

09160-04022

$2.15

36

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

37

CUSHION (8.4X18X6)

09320-08066

$8.24

38

CLIP (BLACK)

09409-06314-5PK

$2.78

39

BOLT

01550-0612A

$1.97

40

SCREW

03541-0412A

$1.49

41

SCREW

03541-0510A

$1.49

42

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
