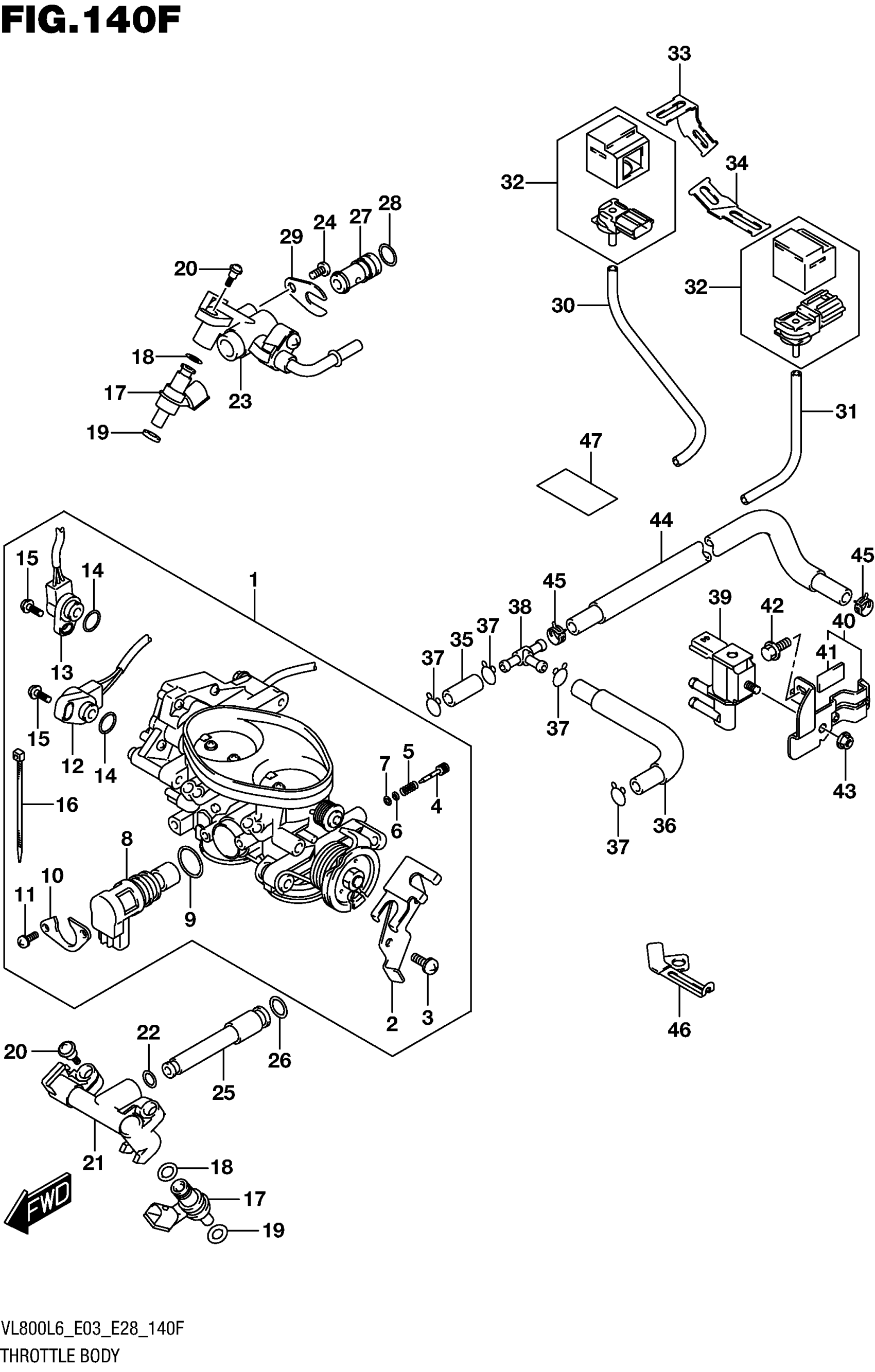

Suzuki VL800L6 (2016) THROTTLE BODY (VL800TL6 E33) Diagram

#

Description
Price

1

BODY, THROTTLE

13401-41F32

$1,163.07

2

.PLATE, STAY

13565-41F20

Unavailable

3

.SCREW

13601-21H00

Unavailable

4

.SCREW

13269-18G00

$13.35

5

.SPRING

13271-43E00

Unavailable

6

.WASHER

13291-26E00

$2.80

7

.O RING

13295-26E00

$3.97

8

.VALVE ASSY, ISC

18117-15H12

$403.72

9

.O RING

18119-05H00

$4.47

10

.PLATE, ISC VALVE

13428-15H00

Unavailable

11

.SCREW

13605-15H00

$8.03

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

13580-40F22

$272.40

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

13580-41F02

$152.75

14

.O RING

13575-40F00

$3.85

15

.SCREW

13605-40F00

$3.50

16

.CLAMP (L:145)

09407-14407

$2.80

17

INJECTOR ASSY,FUEL

15710-26GB0

$287.77

18

.O-RING

15721-21H00

$8.31

19

.RING,SEAL

15722-21H00

$10.30

20

SCREW

13602-34F50

$2.93

21

PIPE SET, FUEL FR

13473-41FA0

$87.03

22

.O-RING

15721-24F00

$8.31

23

PIPE SET, FUEL RR

13473-41FB0

$117.20

24

SCREW

13602-10F10

$4.18

25

JOINT

13473-41FC0

$15.37

26

O-RING

15721-10G00

$8.31

27

PLUG, STRAIGHT

13474-41F20

$7.77

28

O-RING

15721-41F20

$25.25

29

PLATE

13475-41F20

$6.30

30

HOSE

13683-41FA0

$26.50

31

TUBE, RUBBER

13683-41FD0

Unavailable

32

SENSOR, PRESSURE

18590-32G00

$331.78

33

BRACKET, BOOST SENSOR FR

18598-41F00

Unavailable

34

BRACKET, BOOST SENSOR RR

18599-39G00

Unavailable

35

HOSE

13683-41FC1

Unavailable

36

TUBE,RUBBER This part replaces 13682-41F30.

13682-41F31

$17.48

37

CLIP

13693-24F00

$3.62

38

.NIPPLE

13685-48B00

$11.44

39

VALVE, CANISTER

18117-52G00

$163.83

40

BRACKET, VALVE

18119-39G00

Unavailable

41

CUSHION (10X30X2)

44894-24A00

$1.78

42

BOLT

01550-0612A

$1.97

43

NUT

08316-1006A

$2.19

44

HOSE, CANISTER PURGE

13680-39G00

Unavailable

45

CLIP (ID:10.5,H:8)

09401-10409

$2.28

46

CLAMP

44480-41F00

Unavailable

47

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42
