Description

Price

1-1

TANK ASSY, FUEL (BLACK)

44100-43H40-YVB

$1,221.02

1-2

TANK ASSY, FUEL (WHITE)

44100-43H40-YWW

$1,221.02

2-1

.TAPE SET, FUEL TANK | FOR YVB

68110-43H00-AJY

Unavailable

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-43H00-BBL

$68.17

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$124.15

4

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

5

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

6

CLAMP (L:250)

09407-25402

$4.19

7

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.02

8

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$4.97

9

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.07

10

WASHER (8.5X33X1.5)

09160-08146

$2.58

11

BOLT (8X35)

01550-0835A

$2.80

12

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$116.39

13

SHIELD, HEAT NO.1

44192-39G00

$166.93

14

SHIELD, HEAT NO.2

44191-43H00

$98.98

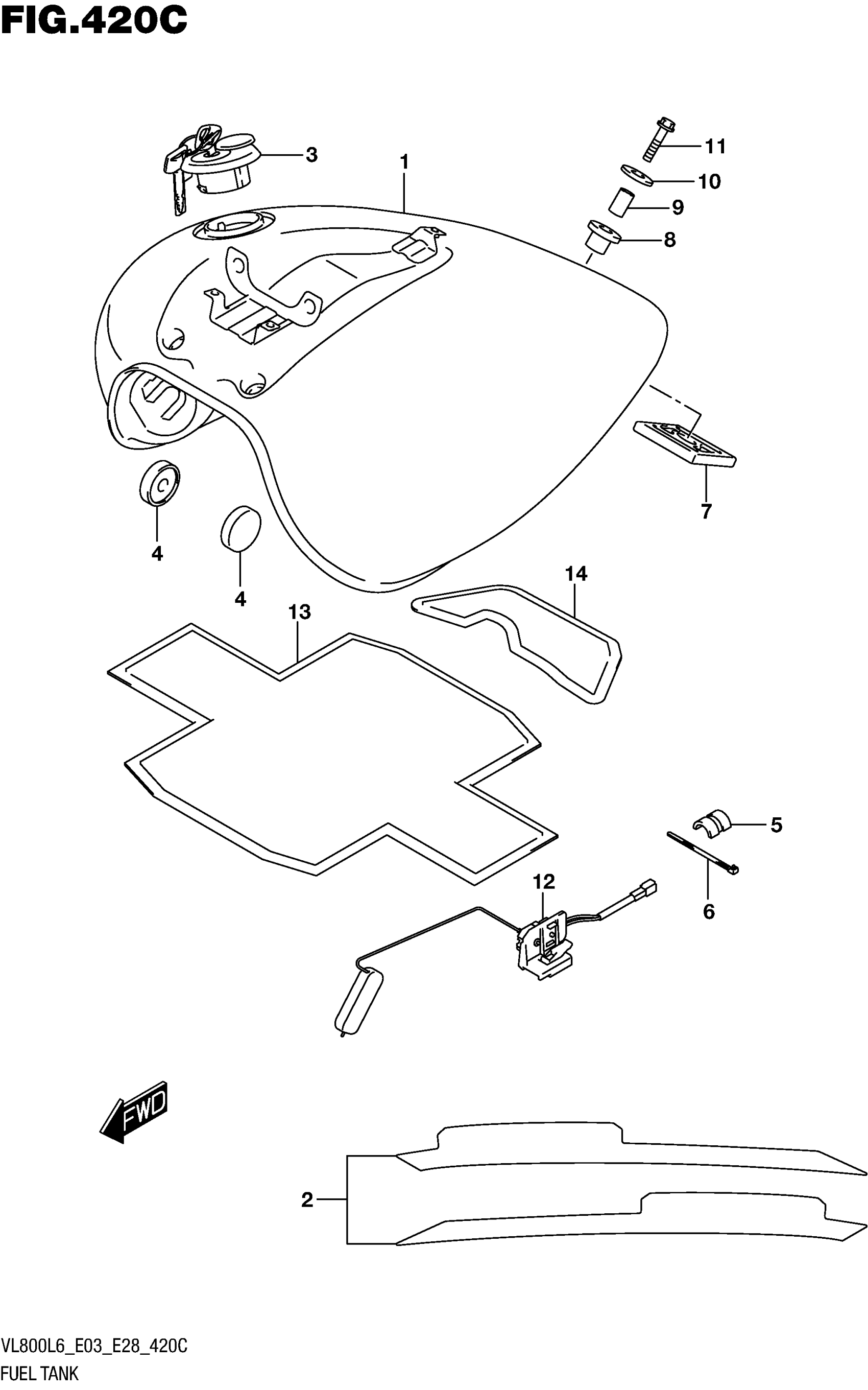

Suzuki VL800L6 (2016) FUEL TANK (VL800L6 E33) Diagram
