Description

Price

1

HUB, REAR

64110-41F20

Unavailable

2

RIM, REAR WHEEL (15M/CXMT4.00

65311-41F00

$360.90

3

SPOKE SET, REAR WHEEL

65320-41F00

$127.16

4

SPACER (17.5X25X113)

09180-17092

$25.33

5

BUSH

09319-12019

$13.11

6

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

7

BEARING

08143-63037

$22.58

8

TUBE ASSY,WHEEL INNER This part replaces 65200-41F00.

65200-41F01

$56.70

9

PROTECTOR, WHEEL INNER TUBE

65261-41F10

$7.58

10

PANEL, REAR BRAKE ANCHOR

64210-38A70-20H

$303.87

10

(SILVER)

64210-38A70-20H

$303.87

11

SHOE SET, BRAKE

64400-38820

$48.36

12

SPRING, SHOE

55420-30000

$4.48

13

CAM, BRAKE

64441-38A20

$30.75

14

O RING (D:2.4,ID:14.8)

09280-15003

$1.76

15

WASHER (15.5X24X1.6)

09160-15048

$2.56

16

LEVER, BRAKE CAM

64451-38A40

$46.70

17

BOLT

01570-06257

$3.03

18

JOINT, HUB DRIVEN

64680-45113

$275.40

19

O RING (D:2.1,ID:65)

09280-65003

$3.72

20

WASHER, THRUST

64677-45110

$2.92

21

BOLT (6X16)

09119-06049

$1.56

22

WASHER

09169-06030

$3.15

23

AXLE, REAR (L:302)

64711-19F00

$84.32

24

SPRING

09448-33006

$9.23

25

NUT

08319-2116A

$9.00

26

WASHER (17X30X3.2)

09160-17050

$2.45

27

SPACER, RH

64741-41F00

$22.75

28

SPACER, LH

64772-34201

$23.07

29

TIRE,REAR (170/80-15M/C 77H) | GS-23R RW IRC This part replaces 65100-41F10.

65100-41F11

$269.30

30-1

BALANCER WHEEL (15G) | 15G

55411-26G00

$7.73

30-2

BALANCER WHEEL (30G) | 30G

55413-41F00

$7.50

31

ROD ASSY, REAR BRAKE

43300-41F00

$27.95

32

.PIN (13X18)

09209-13018

$3.42

33

.WASHER

08322-0106B

$2.26

34

.COTTER PIN

04111-2015A

$1.49

35

.SPRING

09440-09004

$2.20

36

.PIN (10X16)

09200-06013

$2.00

37

.NUT

09150-06010

$3.10

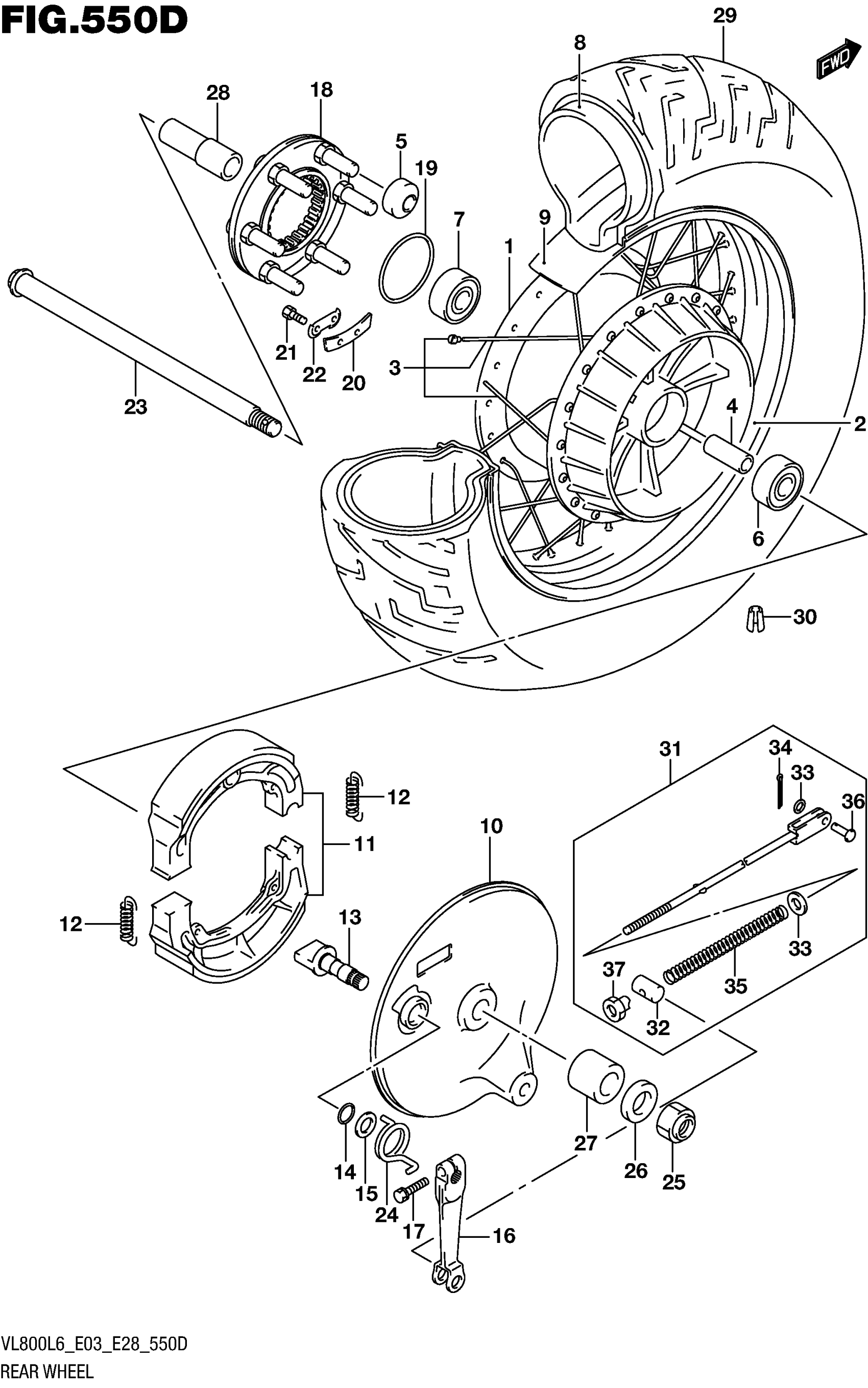

Suzuki VL800L6 (2016) REAR WHEEL (VL800TL6 E03) Diagram
