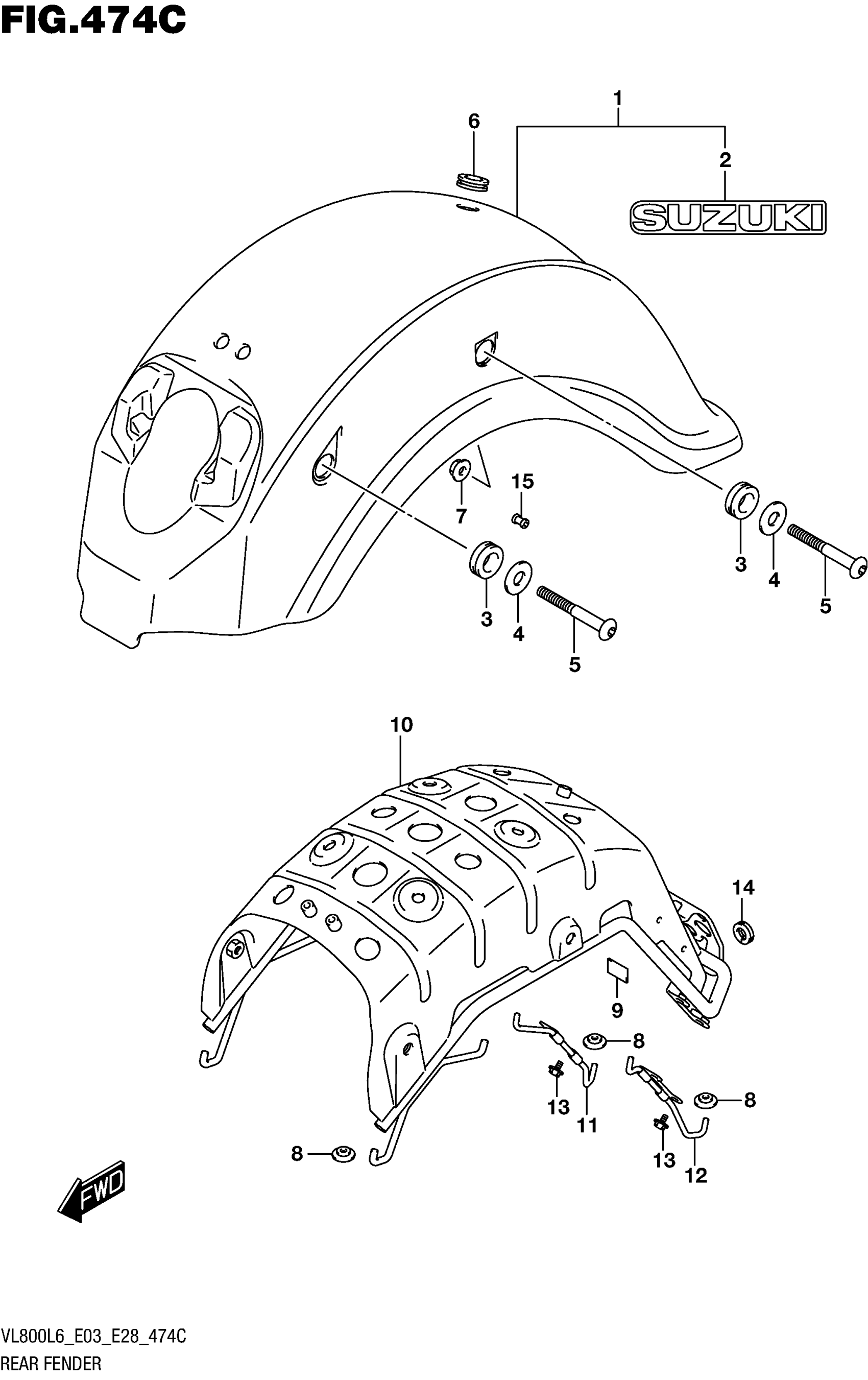

Suzuki VL800L6 (2016) REAR FENDER (VL800L6 E33) Diagram

#

Description
Price

1-1

FENDER,REAR This part replaces 63110-43H00-YVB.

63110-43H01-YVB

$564.83

1-2

FENDER,REAR This part replaces 63110-43H00-YWW.

63110-43H01-YWW

$658.60

2-1

.EMBLEM,"SUZUKI" (SILVER) | FOR YVB This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

2-2

EMBLEM,"SUZUKI" | FOR YWW This part replaces 68271-34A00-YJH.

68271-34A01-YJH

Unavailable

3

CUSHION

47191-24F00

$4.86

4

WASHER (15.5X26X2.3)

09160-15002

$1.70

5

BOLT

63161-41F00

$8.85

6

CUSHION

09320-15008

$3.56

7

NUT

08316-1008B

$2.65

8

CUSHION

09320-06026

$4.45

9

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.78

10

PLATE, REAR FENDER

63130-43H00

$468.58

11

BRACKET, LOWER RH

63150-43H00

$46.25

12

BRACKET, LOWER LH

63160-43H00

$46.25

13

BOLT

01550-0610B

$2.43

14

GROMMET

09308-10017

$5.65

15

PLUG (OD:9)

09250-07004

$3.72
