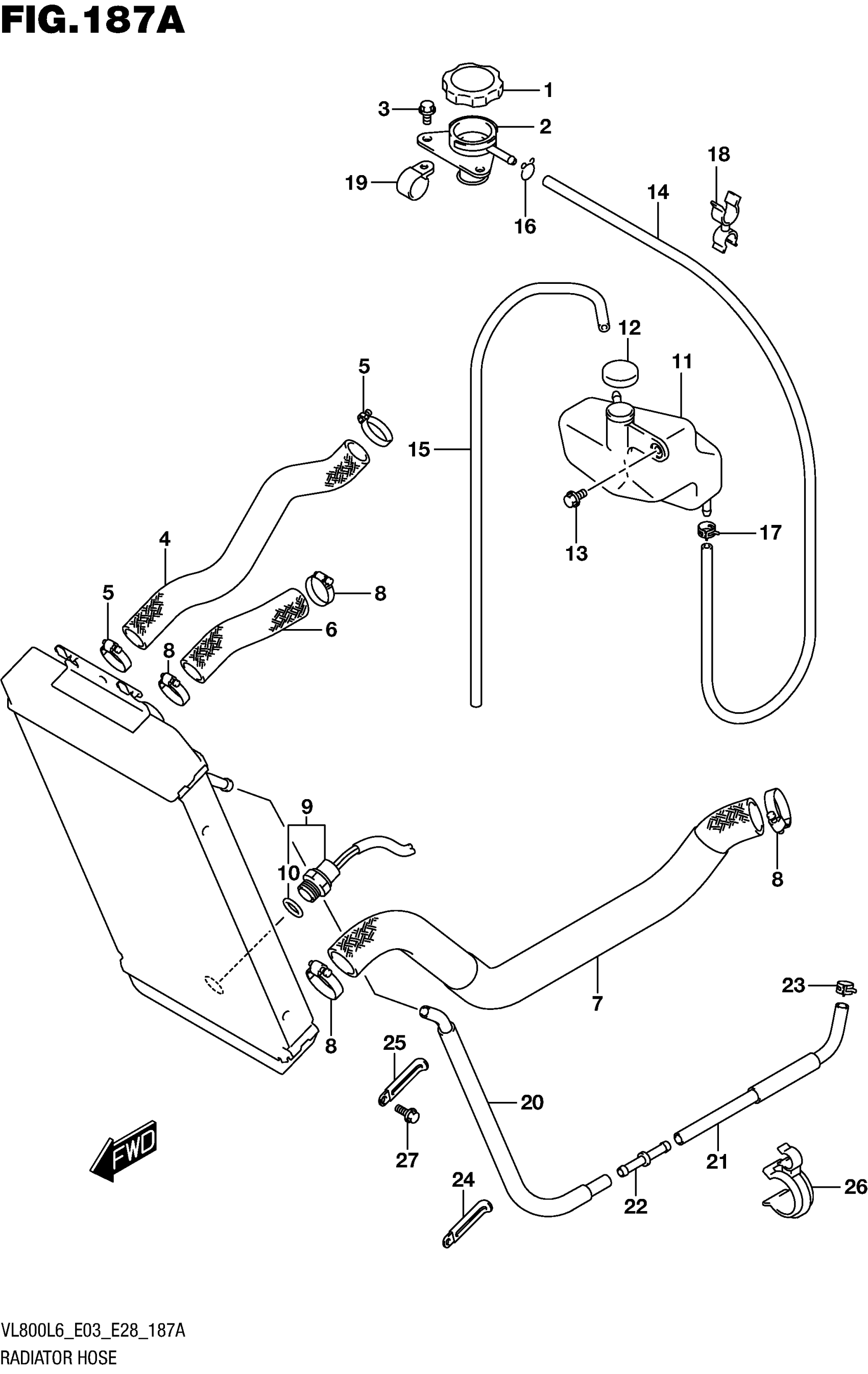

Suzuki VL800L6 (2016) RADIATOR HOSE (VL800L6 E03) Diagram

#

Description
Price

1

CAP, RADIATOR, 1.1

17730-12C30

$58.62

2

CONDUCTION

17791-24D00

$69.02

3

BOLT

01547-0616A

$2.01

4

HOSE, CONDUCTION

17853-41F00

$32.83

5

CLAMP

09402-28513

$6.31

6

HOSE, RADIATOR INLET

17851-41F00

$21.62

7

HOSE, RADIATOR OUTLET

17852-41F02

$54.45

8

CLAMP

09402-32512

$13.97

9

SWITCH,RDTR FAN This part replaces 17680-33E00.

17680-33E01

$44.35

10

.O RING

17689-50F00

$2.63

11

TANK,RESERVOIR

17911-41F11

$75.47

12

CAP, RESERVOIR TANK

17932-12C00

$4.09

13

BOLT (6X12)

09111-06085

$4.16

14

HOSE, INLET

17981-41F11

Unavailable

15

HOSE, OUTLET

17981-19F00

$16.58

16

CLIP

09401-08410

$1.88

17

CLIP

09401-08411

$1.77

18

CLAMP

09408-00078

Unavailable

19

CLAMP

09403-08404

Unavailable

20

HOSE, WATER BYPASS

17855-41F00

$57.45

21

HOSE, WATER BYPASS

17856-41F00

$30.35

22

JOINT

09367-08001

$4.53

23

CLIP

09401-12405

$2.24

24

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88

25

CLAMP (L:82)

09404-10205

Unavailable

26

CLAMP

09408-00177

Unavailable

27

BOLT (10X16)

09103-10393

Unavailable
