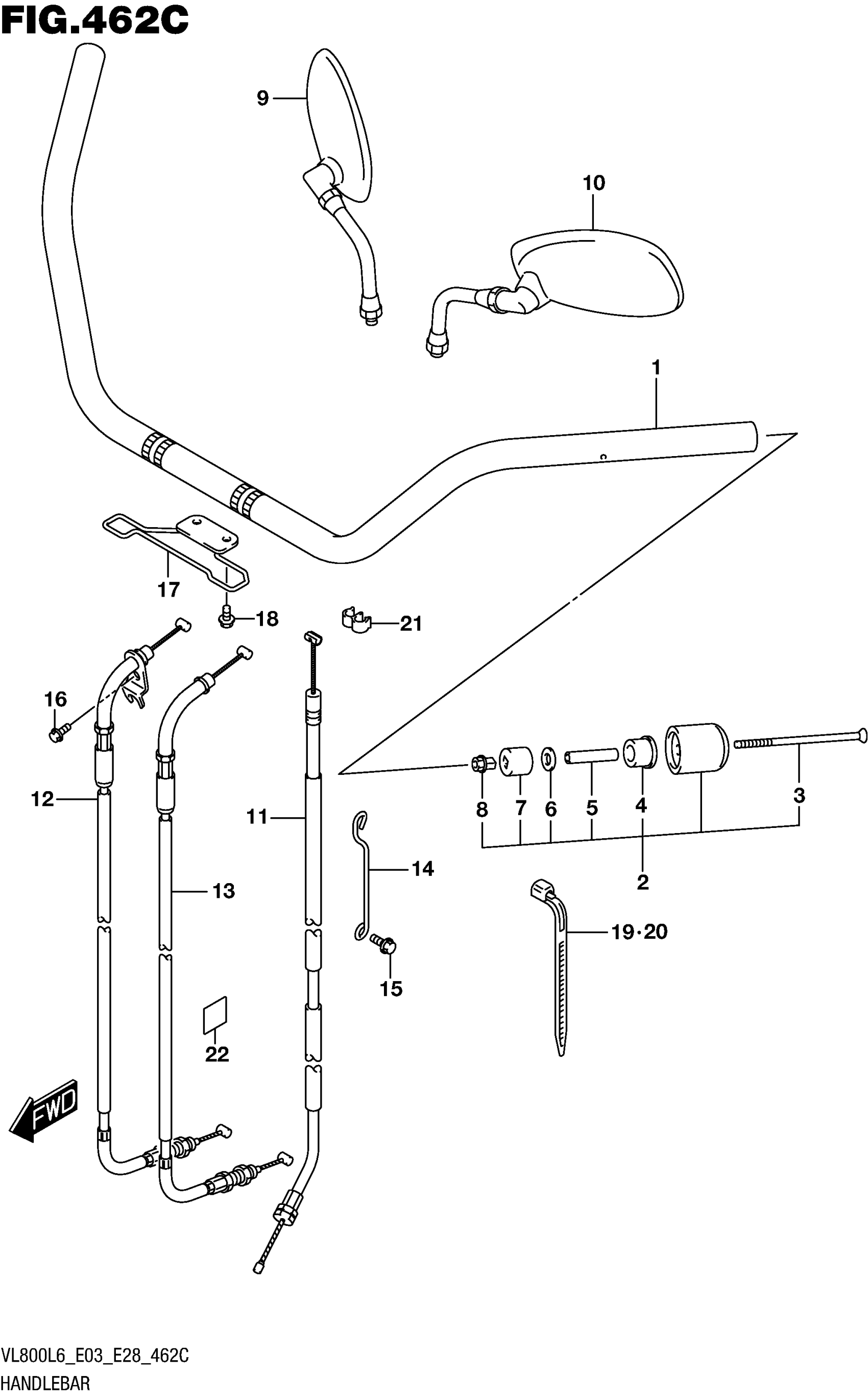

Suzuki VL800L6 (2016) HANDLEBAR (VL800L6 E33) Diagram

#

Description
Price

1

HANDLEBAR

56111-41F30

$261.55

2

BALANCER SET, HANDLEBAR

56200-10892

$52.53

3

.SCREW (6X127)

09127-06017

$2.80

4

.EXPANDER, OUTER

56272-26D01

$9.62

5

.SPACER

56276-17D00

$4.78

6

.WASHER (6.5X16X4)

09160-06131

$2.53

7

.EXPANDER, INNER

56272-10G10

$4.46

8

.NUT

56273-10G10

$7.92

9

MIRROR ASSY, REAR VIEW RH

56500-41F01

$76.13

10

MIRROR ASSY, REAR VIEW LH

56600-41F01

$79.44

11

CABLE ASSY, CLUTCH

58200-41F30

$95.37

12

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-43H00.

58300-43H01

$44.55

13

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-43H10.

58300-43H11

$37.03

14

GUIDE, THROTTLE CABLE

58626-41F01

$6.87

15

BOLT

01550-0612B

$2.38

16

BOLT

01550-0616A

$1.97

17

GUIDE, CABLE

58620-41F00

Unavailable

18

BOLT

01550-0612A

$1.97

19

CLAMP (L:190)

09407-19401

$3.32

20

CLAMP (L:300)

09407-30401

$6.22

21

CLIP

09408-00244

$3.08

22

PROTECTOR

87873-56K50

$11.18
