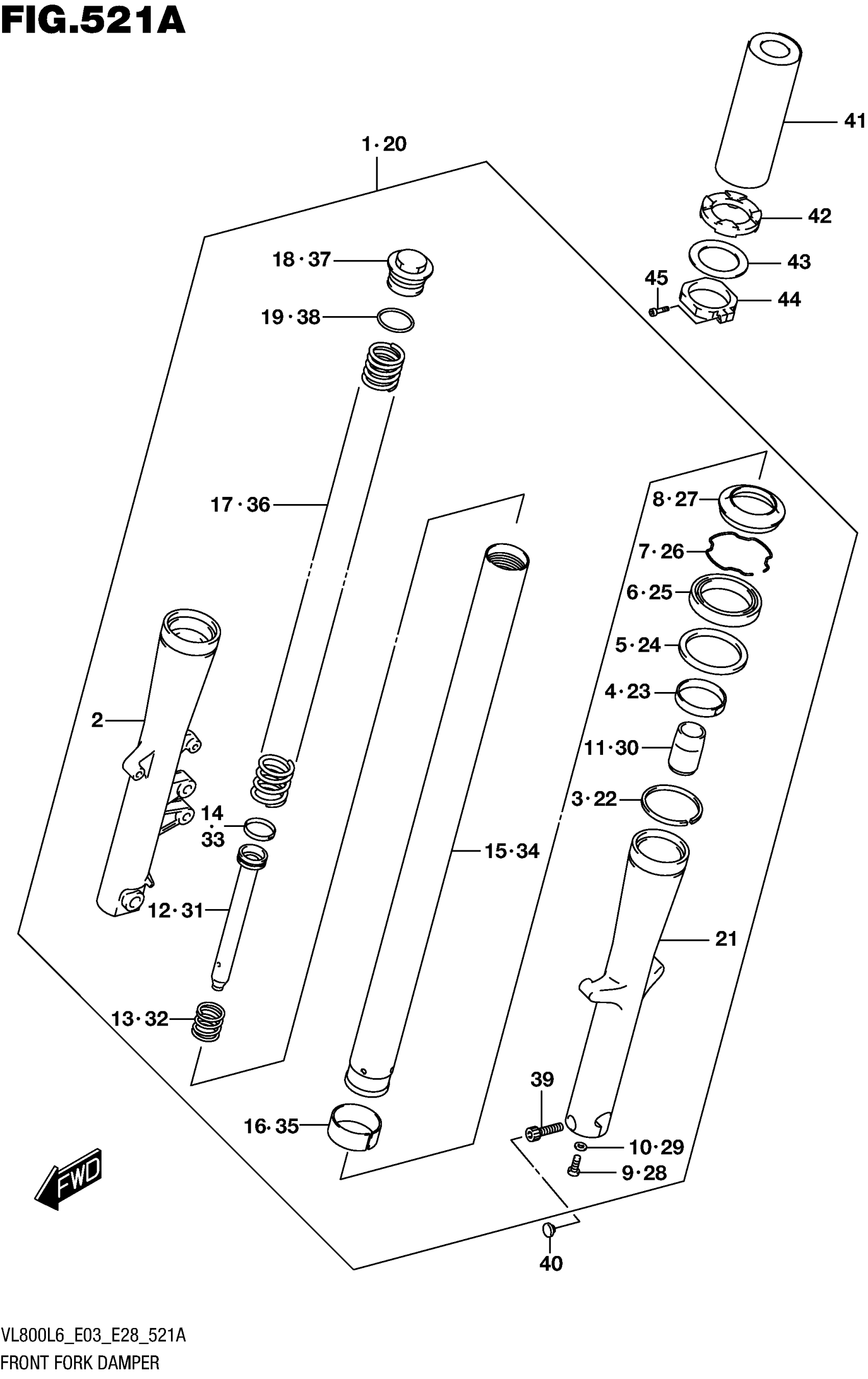

Suzuki VL800L6 (2016) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,RH This part replaces 51103-41F40.

51103-41F41

$910.97

2

.TUBE, OUTER RH

51131-41F20

$649.70

3

.GUIDE, CASE

51469-41F21

$19.97

4

.BUSH, GUIDE

51152-11D60

$13.05

5

.SPACER, SEAL

51168-38B00

$6.12

6

.SEAL, OIL

51153-08D00

$21.02

7

.RING

51556-38B00

$6.61

8

.SEAL, DUST

51571-47D50

$20.05

9

.BOLT

51147-06F10

$6.75

10

.GASKET

51148-36011

$3.26

11

.PIECE, OIL LOCK

51195-10F00

$34.12

12

.SEAT, PIPE

51146-10F00

Unavailable

13

.SPRING, REBOUND

51177-10F00

Unavailable

14

.RING

51196-47D00

$9.97

15

.TUBE, INNER

51110-41F40

$563.07

16

.BUSH, SLIDE

51121-42E00

$16.77

17

.SPRING, FRONT

51171-41F40

Unavailable

18

.BOLT, FORK

51189-47D50

$58.95

19

.O-RING

51117-12C00

$3.66

20

DAMPER FRONT,LH This part replaces 51104-41F40.

51104-41F41

$833.00

21

.TUBE, OUTER LH

51141-41F20

$649.70

22

.GUIDE, CASE

51469-41F21

$19.97

23

.BUSH, GUIDE

51152-11D60

$13.05

24

.SPACER, SEAL

51168-38B00

$6.12

25

.SEAL, OIL

51153-08D00

$21.02

26

.RING

51556-38B00

$6.61

27

.SEAL, DUST

51571-47D50

$20.05

28

.BOLT

51147-06F10

$6.75

29

.GASKET

51148-36011

$3.26

30

.PIECE, OIL LOCK

51195-10F00

$34.12

31

.SEAT, PIPE

51146-10F00

Unavailable

32

.SPRING, REBOUND

51177-10F00

Unavailable

33

.RING

51196-47D00

$9.97

34

.TUBE, INNER

51110-41F40

$563.07

35

.BUSH, SLIDE

51121-42E00

$16.77

36

.SPRING, FRONT

51171-41F40

Unavailable

37

.BOLT, FORK

51189-47D50

$58.95

38

.O-RING

51117-12C00

$3.66

39

.BOLT

07130-10357

$5.63

40

CAP (OD:12)

09250-08014

$2.80

41

CASE, UNDER

51464-41F21

$157.97

42

SEAT, RUBBER

51468-10F00

$24.63

43

WASHER

51467-10F70

$14.27

44

SPACER

51465-41F20

$60.38

45

BOLT

51466-10F00

$8.52
