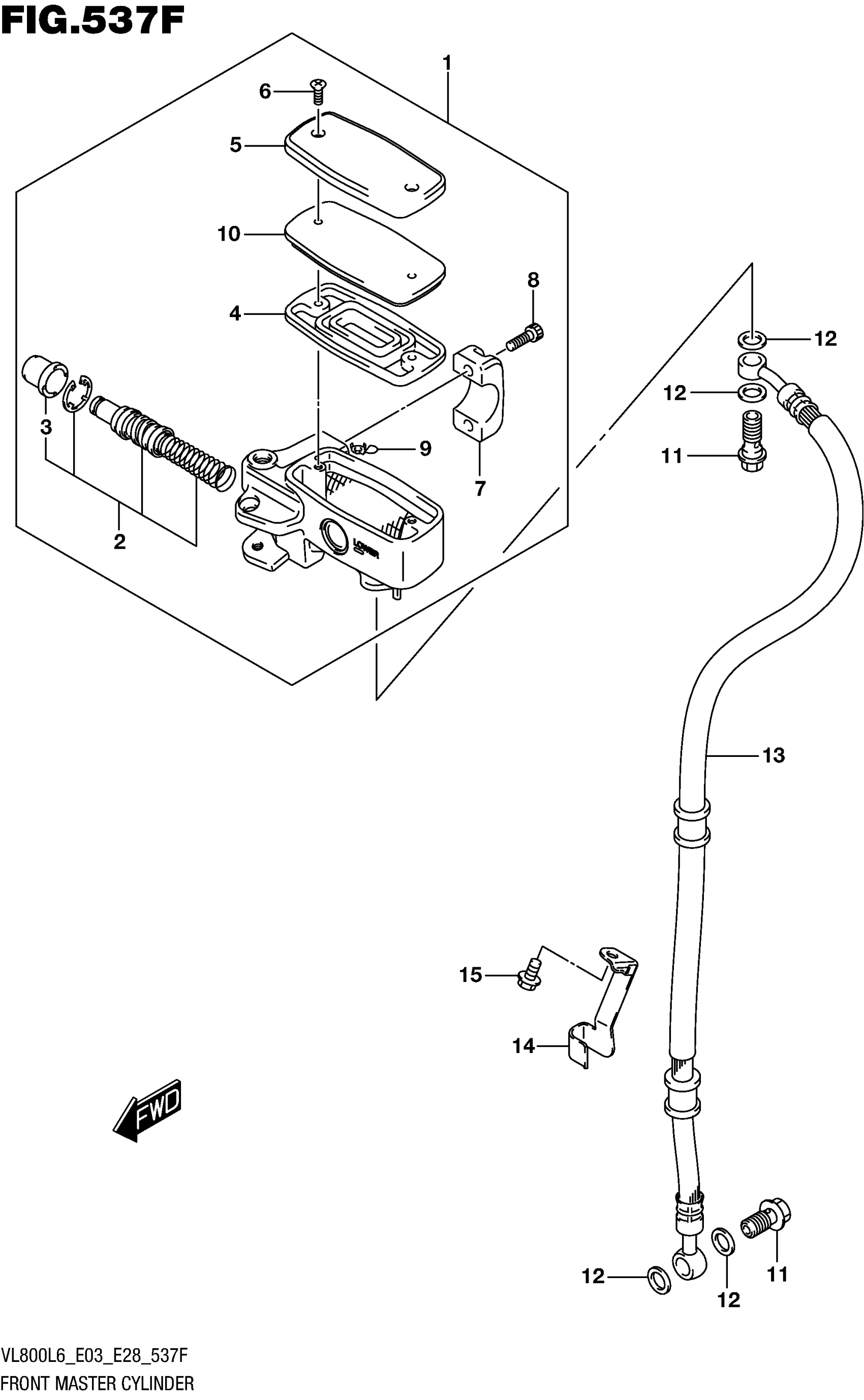

Suzuki VL800L6 (2016) FRONT MASTER CYLINDER (VL800TL6 E33) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10F71

$424.60

2

.PISTON/CUP SET

59600-04810

$45.20

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-10F00

$10.10

5

.CAP

59669-10F10

$56.93

6

.SCREW

02122-04127

$1.97

7

.HOLDER

59671-10F00

$49.18

8

.BOLT

07130-06207

$3.04

9

.PROTECTOR

59664-32F00

$11.68

10

.PLATE

57437-10F00

$21.03

11

UNION

09360-10062

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE,FRONT BRAKE This part replaces 59480-41F10.

59480-41F11

$111.28

14

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

15

BOLT

01550-0612A

$1.97
