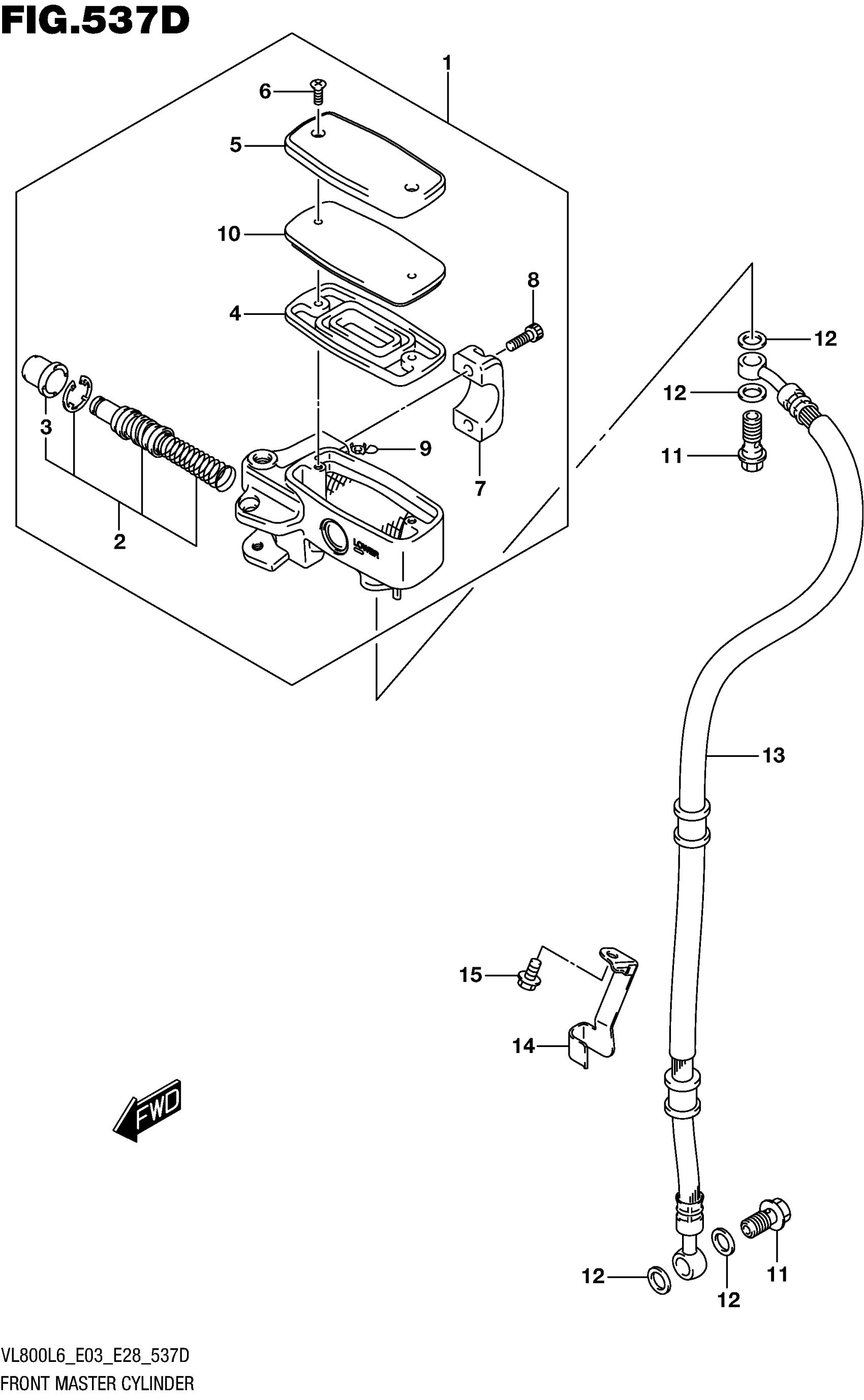

Suzuki VL800L6 (2016) FRONT MASTER CYLINDER (VL800TL6 E03) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10F71

$472.48

2

.PISTON/CUP SET

59600-04810

$41.38

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-10F00

$11.40

5

.CAP

59669-10F10

$64.25

6

.SCREW

02122-04127

$1.97

7

.HOLDER

59671-10F00

$55.50

8

.BOLT

07130-06207

$2.80

9

.PROTECTOR

59664-32F00

$13.20

10

.PLATE

57437-10F00

$23.73

11

UNION

09360-10062

$5.81

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE,FRONT BRAKE This part replaces 59480-41F10.

59480-41F11

$124.98

14

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

15

BOLT

01550-0612A

$1.97
