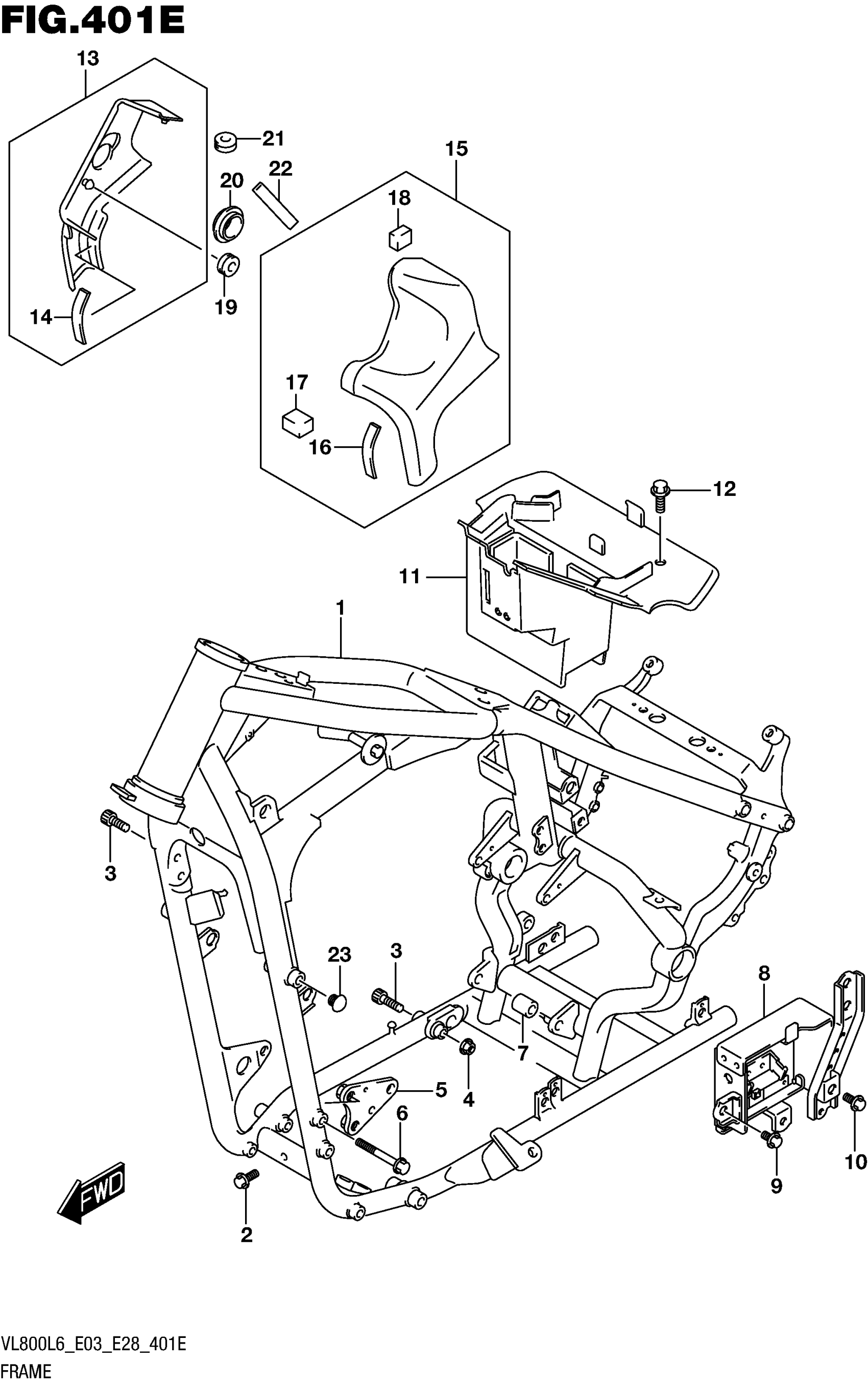

Suzuki VL800L6 (2016) FRAME (VL800TL6 E28) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-41F80-019

$3,745.05

2

BOLT (8X16)

01550-0816A

$2.32

3

BOLT

07130-1035B

$5.18

4

NUT

08319-3110B

$3.87

5

PLATE, ENGINE MOUNT LH

41920-41F00

Unavailable

6

BOLT (8X65)

09112-08013

Unavailable

7

SPACER, LOWER

41941-41F00

Unavailable

8

HOLDER, ELECTRIC PARTS

41540-41F30

Unavailable

9

BOLT

01547-0612A

$2.03

10

BOLT (8X16)

01550-0816A

$2.32

11

HOLDER, ELECTRIC PARTS

47410-41F02

Unavailable

12

BOLT (6X16)

09113-06010

$3.27

13

COVER,FRAME HEAD,R (BLACK) This part replaces 47350-41F10-019.

47350-41F30-019

$74.35

14

.CUSHION

53145-40A00

$2.30

15

COVER,FRAME HEAD,L (BLACK) This part replaces 47360-41F12-019.

47360-41F40-019

$70.98

16

.CUSHION

53145-40A00

$2.30

17

.CUSHION, LH LOWER

53146-05G00

$7.27

18

.CUSHION, FRONT

94422-06G00

$5.82

19

CUSHION

09320-08018

$3.04

20

CAP, HEAD COVER RH

47355-41F01

$7.57

21

CUSHION

09320-09501

$2.03

22

CUSHION, FRAME HEAD COVER LOW

17798-39G00

$6.49

23

CAP This part replaces 09250-09001.

09250-09008

$1.54
