Description

Price

1

STATOR

32101-41F10

$518.08

2

ROTOR

32102-41F10

$649.62

3

BOLT

07130-0640A

Unavailable

4

BOLT

07130-0510A

$2.68

5

BOLT (14X43)

09103-14001

$11.82

6

WASHER (14X29X4)

09160-14021

$6.63

7

KEY

09420-05007

$4.60

8

CLAMP

31497-45000

$1.92

9

CLAMP

32371-38A10

Unavailable

10

CLAMP

32371-41F00

Unavailable

11

CLAMP

32371-45C00

$4.58

12

BOLT

07130-0610A

Unavailable

13

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

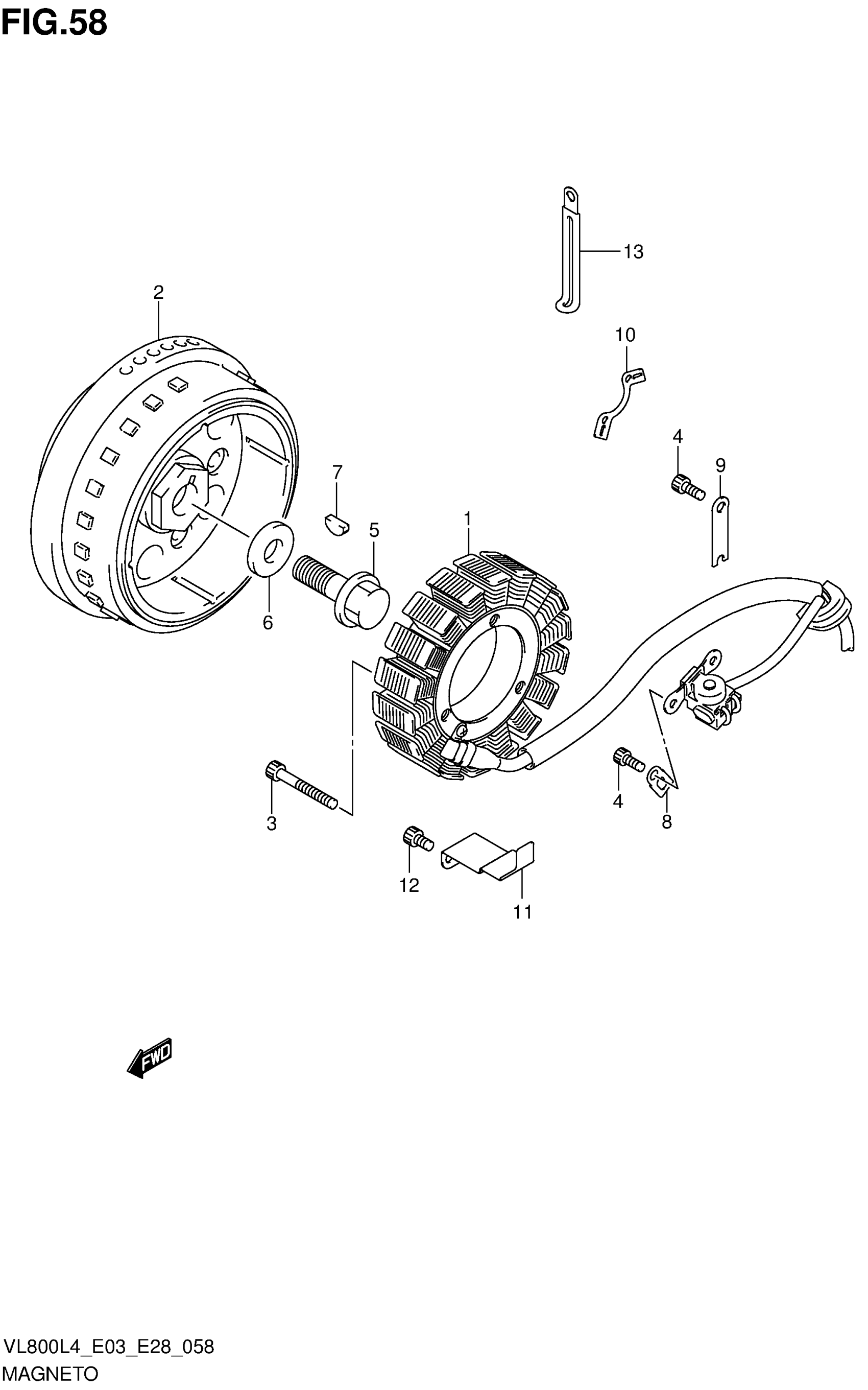

Suzuki VL800CL4 (2014) MAGNETO Diagram

STATOR

ROTOR

BOLT

BOLT

BOLT (14X43)

WASHER (14X29X4)

KEY

CLAMP

CLAMP

CLAMP

CLAMP

BOLT

CLAMP (L:80) This part replaces 09404-08419.
