2014 Suzuki VL800CL4 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2014 Suzuki VL800CL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

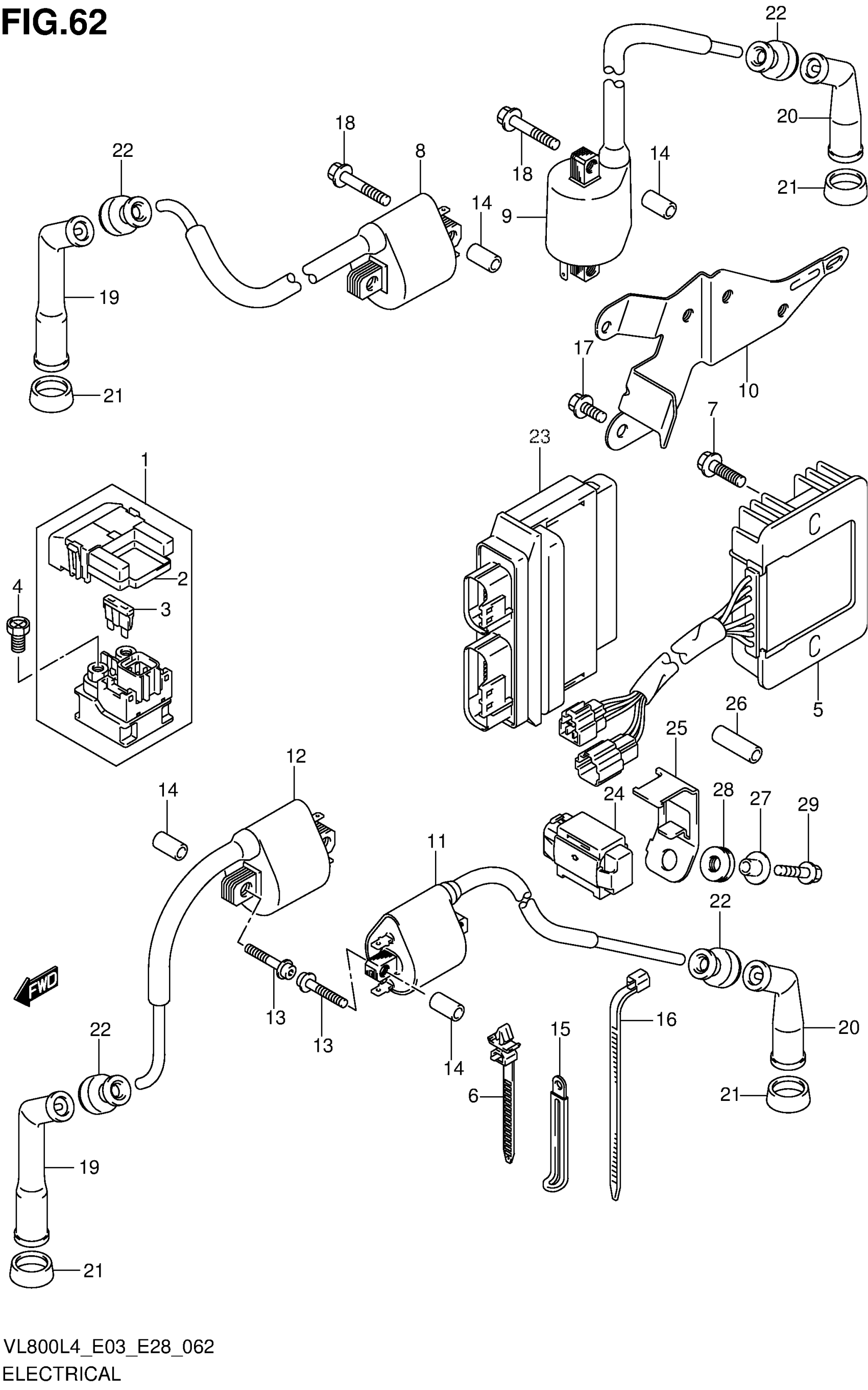

2014 Suzuki VL800CL4 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

1
Out of stock

2

COVER

31861-47E00

1
Out of stock

3

FUSE (30A)

09481-30101

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-47H00

1
Out of stock

6

CLAMP (L:90)

09407-11402

1
Out of stock

7

BOLT

02162-0620B

2
Out of stock

8

COIL ASSY, IGNITION REAR

33410-39G00

1
Out of stock

9

COIL ASSY, IGNITION REAR | FOR RS

33410-39G10

1
Out of stock

10

BRACKET, IGNITION COIL REAR

33414-39G00

1
Out of stock

11

COIL ASSY, IGNITION FRONT | FOR FS

33420-39G00

1
Out of stock

12

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

1
Out of stock

13

BOLT (5X35)

09106-05033

4
Out of stock

14

SPACER (6.4X10X18)

09180-06195

8
Out of stock

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

16

CLAMP (L:190)

09407-19401

2
Out of stock

17

BOLT

01547-0610A

3
Out of stock

18

BOLT

01547-0635A

4
Out of stock

19

CAP ASSY, SPARK PLUG (CENTER)

33510-11410

2
Out of stock

20

CAP ASSY, SPARK PLUG (SIDE)

33510-38B00

2
Out of stock

21

SEAL, SPARK PLUG

33541-47D00

4
Out of stock

22

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

4
Out of stock

23

CONTROL UNIT, FI

32920-39GJ0

1
Out of stock

24

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

25

BRACKET, FUEL CUT SENSOR

33961-41F00

1
Out of stock

26

HOSE,5X10X600 | L:600->10 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

27

SPACER (6.2X8.4X6.9)

09180-06325

1
Out of stock

28

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

1
Out of stock

29

BOLT

01547-0616A

1
Out of stock
