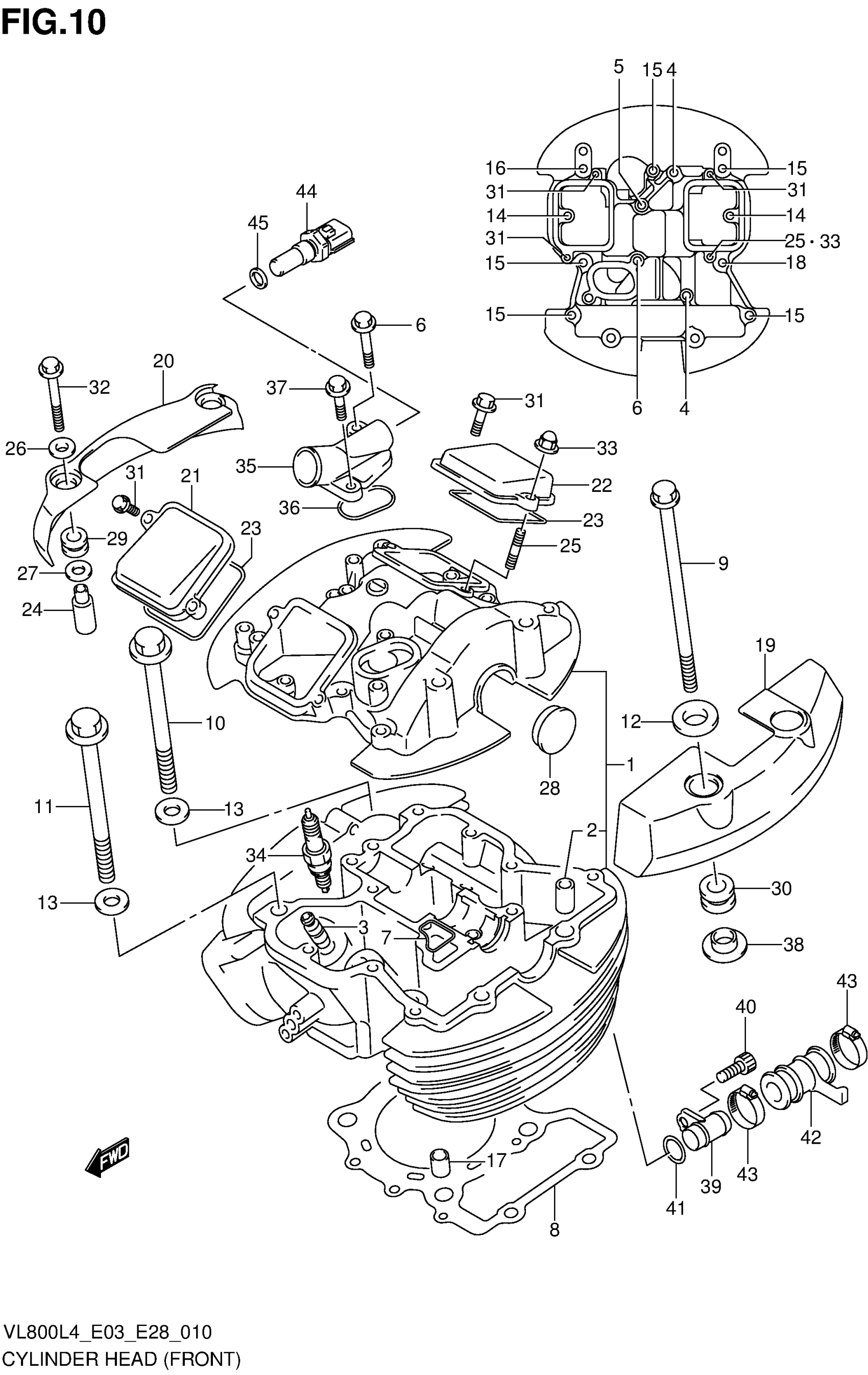

Suzuki VL800CL4 (2014) CYLINDER HEAD (FRONT) (VL800TL4 E33) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT

11101-39G50

Unavailable

2

PIN (11X14) This part replaces 09206-11011.

09206-11004

$4.84

3

GUIDE, VALVE (OS 0.3) | OPT

11115-41F70

$45.97

4

BOLT (6X50)

09103-06304

$2.77

5

BOLT (6X55)

09103-06305

Unavailable

6

BOLT

07130-0680B

$5.10

7

GASKET, CYLINDER HEAD COVER

11123-38A00

$3.55

8

GASKET, CYLINDER HEAD FRONT

11141-41F00

$36.39

9

BOLT (8X250)

09103-08370

$17.60

10

BOLT (10X155)

09103-10133

$10.32

11

BOLT (10X165)

09103-10134

$10.32

12

WASHER (8.5X24X1.6)

09160-08130

$2.01

13

WASHER (10.5X22X2.3)

09160-10039

$2.24

14

BOLT

01547-0625A

$2.01

15

BOLT

01547-0630A

$2.31

16

BOLT

01547-0640A

$2.31

17

KNOCK PIN

04211-13189

$2.19

18

BOLT

07120-0630B

$3.19

19

CAP, CYLINDER HEAD COVER FL

11171-41FA0

Unavailable

20

CAP, CYLINDER HEAD COVER FR

11172-41F00

Unavailable

21

CAP, INSPECTION INTAKE

11175-38A11

$26.03

22

CAP, INSPECTION EXHAUST

11176-38A11

$26.03

23

GASKET, INSPECTION CAP

11177-38A00

$4.09

24

SPACER, HEAD COVER CAP

11179-10F10

$13.73

25

STUD BOLT

09108-06102

$4.43

26

WASHER (6.5X18X1.6)

09160-06084

$1.77

27

WASHER (9.5X20X1)

09160-09016

$2.50

28

PLUG (OD:30)

09241-30004

$5.97

29

CUSHION

09320-09016

$1.97

30

CUSHION

09320-13015

$2.80

31

BOLT

01547-0620A

$2.01

32

BOLT

01547-06557

$2.34

33

NUT

09159-06093

Unavailable

34

SPARK PLUG (DR7EA) | NGK

09482-00398

$2.80

34

SPARK PLUG (X22ESR-U) | DENSO

09482-00222

$4.90

34

SPARK PLUG (X24ESR-U) | OPT DENSO

09482-00223

$4.60

34

SPARK PLUG (X27ESR-U) | OPT DENSO

09482-00224

Unavailable

34

SPARK PLUG (DR8EA) | OPT NGK

09482-00399

$2.95

34

SPARK PLUG (DR9EA) | OPT NGK

09482-00400

$4.80

35

UNION, CYLINDER HEAD OUTLET

11181-41F00

$57.92

36

O RING, OUTLET UNION

11182-38A00

$2.80

37

BOLT

07130-0620A

$2.50

38

BUSH

09301-08007

$7.38

39

UNION, CYLINDER HEAD JOINT

17891-41F10

$20.75

40

BOLT

07130-0612A

$2.50

41

O RING (D:2.4,ID:15.8)

09280-16005

$2.24

42

HOSE, HEAD JOINT

17854-41F01

$20.68

43

CLAMP

09402-28513

$6.31

44

SENSOR, WATER TEMP

13650-57F00

$136.53

45

GASKET (12X17X1)

09168-12017

$1.97
