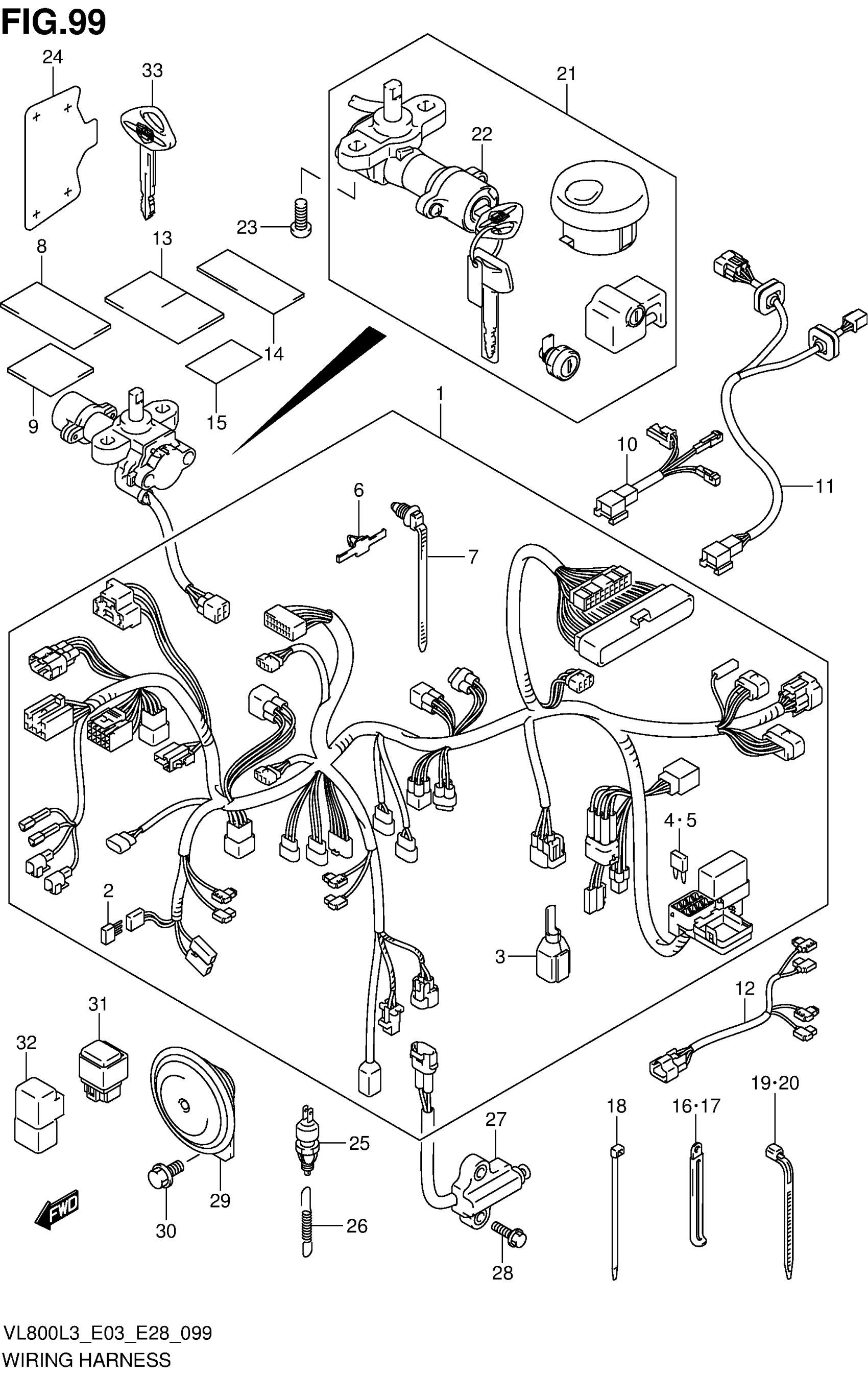

Suzuki VL800CL3 (2013) WIRING HARNESS (VL800L3 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-41F40

Unavailable

2

RECTIFIER ASSY

32800-16A00

$23.07

3

BOOT

36717-41F00

Unavailable

4

FUSE (10A)

09481-10501

$2.06

5

FUSE (20A)

09481-20501

Unavailable

6

CLAMP

09407-05410

Unavailable

7

CLAMP (L:154)

09407-17403

$4.91

8

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

9

TAPE, HARNESS (35X35)

36611-41F00

Unavailable

10

WIRE, REAR COMB NO.2

36856-41F00

$36.82

11

WIRE,RR COMB This part replaces 36858-41F00.

36858-41F01

$32.63

12

WIRE, IGNITION COIL LEAD

36854-39G00

Unavailable

13

PROTECTOR, WIRING HANRESS

36920-33C00

Unavailable

14

PROTECTOR, WIRING HARNESS

36920-45G00

$3.03

15

PTOTECTOR, WIRING HARNESS

94474-17H00

$4.58

16

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

17

CLAMP (L:135)

09404-06435

$3.68

18

CLAMP (L:145)

09407-14407

$3.57

19

CLAMP (L:165)

09407-18402

$2.19

20

CLAMP (L:190)

09407-19401

$3.05

21

LOCK SET This part replaces 37102-41880.

37102-41883

$318.77

22

.LOCK ASSY,STEERING This part replaces 37100-41F70.

37100-41F71

$152.57

23

BOLT (8X20)

09139-08016

$3.37

24

PROTECTOR, IGNITION SWITCH

37187-41F10

$12.17

25

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

26

SPRING

09443-06073

$3.42

27

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

28

BOLT (6X20)

09103-06279

Unavailable

29

HORN ASSY

38500-41F30

$87.70

30

BOLT (8X16)

01550-0816A

$2.32

31

RELAY ASSY, HEAD LAMP

38740-24A00

$63.30

32

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

33

KEY, BLANK "BOULEVARD" | OPT

37146-41FA0

$50.63
