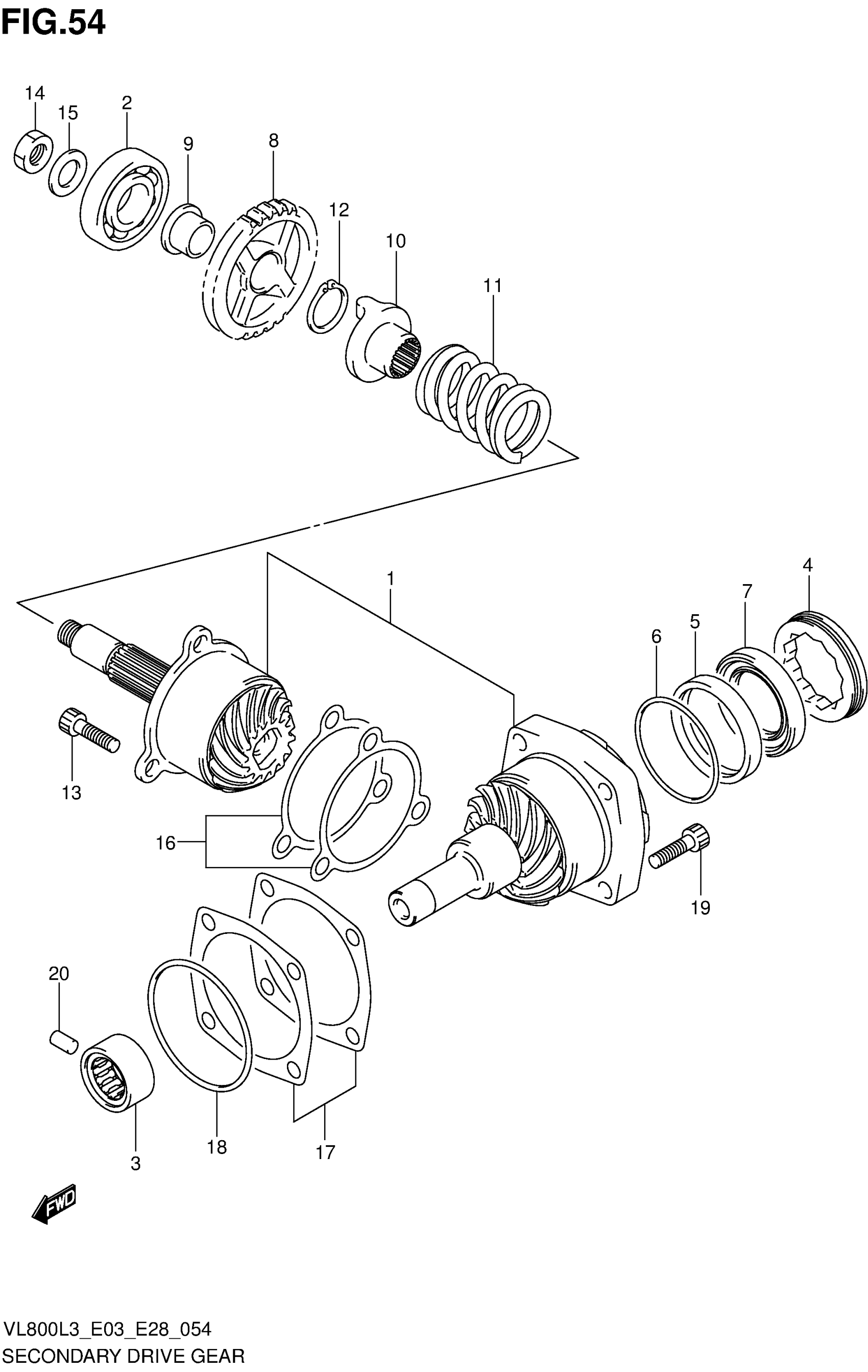

Suzuki VL800CL3 (2013) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR & HOUSING SET, SECONDARY

24900-41810

Unavailable

2

BEARING (20X52X15)

09262-20073

$23.28

3

BEARING (20X34X16)

09263-20038

$55.95

4

STOPPER, BEARING

24942-38A50

$66.40

5

HOUSING, OIL SEAL

24943-38A50

$87.70

6

O RING (D:1.2,ID:59.6)

09280-60003

$2.77

7

OIL SEAL (38X54X8.5)

09283-38016

$18.35

8

GEAR, REDUCTION DRIVEN (NT:30)

24631-38A00

Unavailable

9

BUSH,REDUCTION DRIVEN GEAR

24632-38A00

Unavailable

10

DOG, OUTPUT CAM

24922-38A00

Unavailable

11

SPRING

09440-44002

Unavailable

12

CIRCLIP

08331-31219

$2.43

13

BOLT (8X25)

09106-08097

$2.72

14

NUT This part replaces 09140-16001.

09140-16005

$3.75

15

WASHER (16X29X4)

09160-16029

$6.35

16

SHIM SET, SEC DRIVE GEAR | T:0.3/0.35/0.4/0.5/0.6

24935-38810

Unavailable

17

SHIM SET, SEC DRIVE HOUSING | T:0.3/0.35/0.4/0.5/0.6

24945-05810

Unavailable

18

O RING (D:2.1,ID:66.2)

09280-67004

$4.10

19

BOLT (8X25)

09106-08097

$2.72

20

PIN

04221-07129

$1.86
