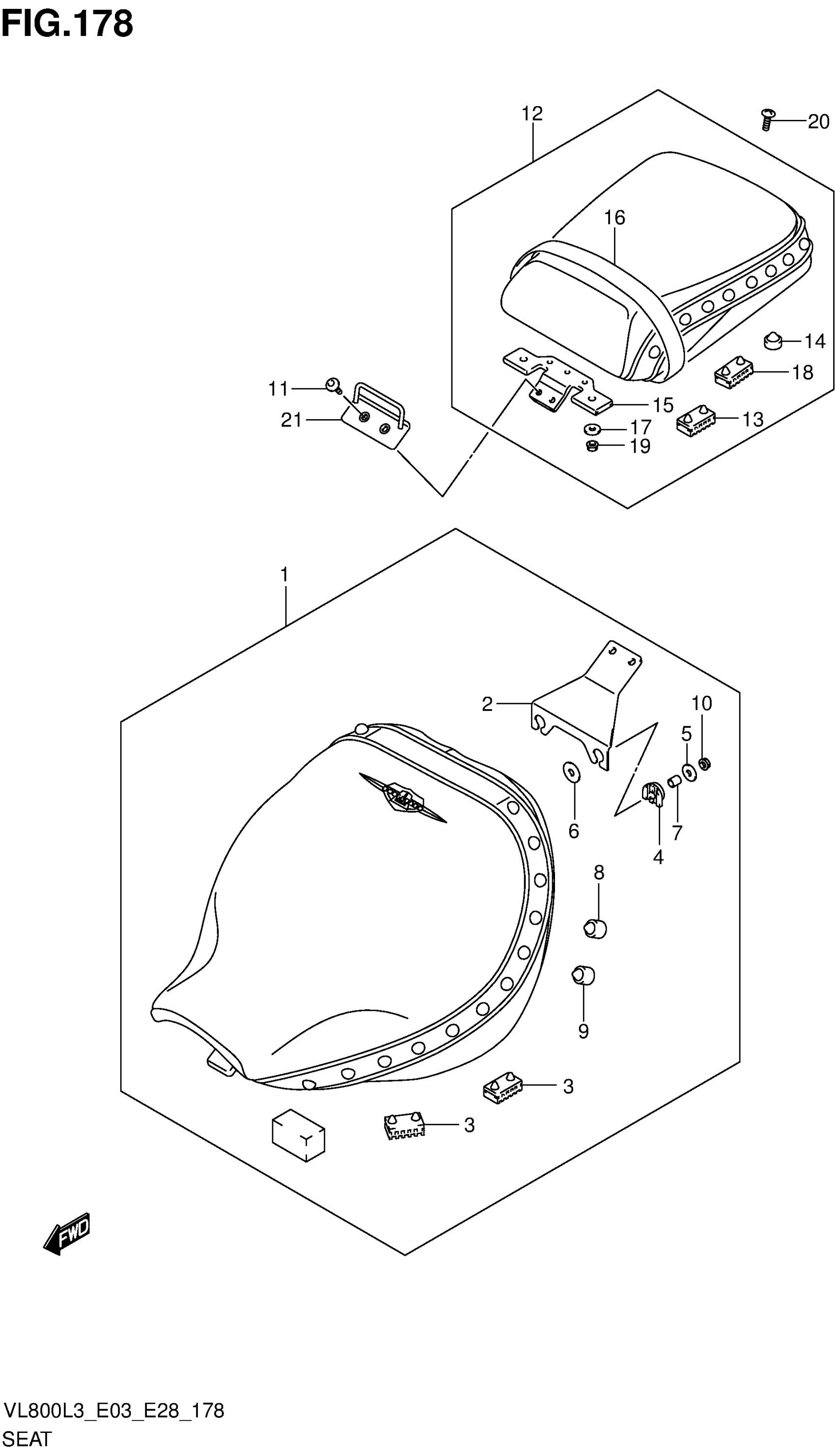

Suzuki VL800CL3 (2013) SEAT (VL800TL3 E03) Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-43H10-GFA.

45100-43H12-GFA

$468.07

2

BRACKET, SEAT

45115-43H00

$41.85

3

CUSHION

45149-31300

$3.26

4

CUSHION

45215-43H00

$24.63

5

.WASHER (6.5X20X1.6)

09160-06088

$1.67

6

WASHER (6.5X24X1.6)

09160-06501

$1.88

7

SPACER (6.5X10X11)

09180-06288

$2.04

8

CUSHION (11.5X22X20)

09321-10002

$2.02

9

CUSHION

09321-10033

$6.75

10

NUT

08316-1006A

$2.19

11

BOLT (6X18)

09106-06064

$5.43

12

SEAT ASSY (BLACK) This part replaces 45300-43H10-GFA.

45300-43H11-GFA

$338.88

13

CUSHION, PILLION SEAT NO.2

45149-31300

$3.26

14

CUSHION

45147-12FA0

$3.87

15

BRACKET, PILLION SEAT

45330-43H00

$63.72

16

.BAND,SEAT PILLION (BLACK) This part replaces 45380-43H00-48H.

45380-43H01-48H

$9.53

17

.WASHER (6.5X20X1.6)

09160-06088

$1.67

18

CUSHION (11.5X22X20)

09321-10002

$2.02

19

NUT

08316-1006A

$2.19

20

BOLT (8X16)

09106-08140

$5.75

21

BRACKET, SEAT SUPPORT

45210-43H00

$23.64
