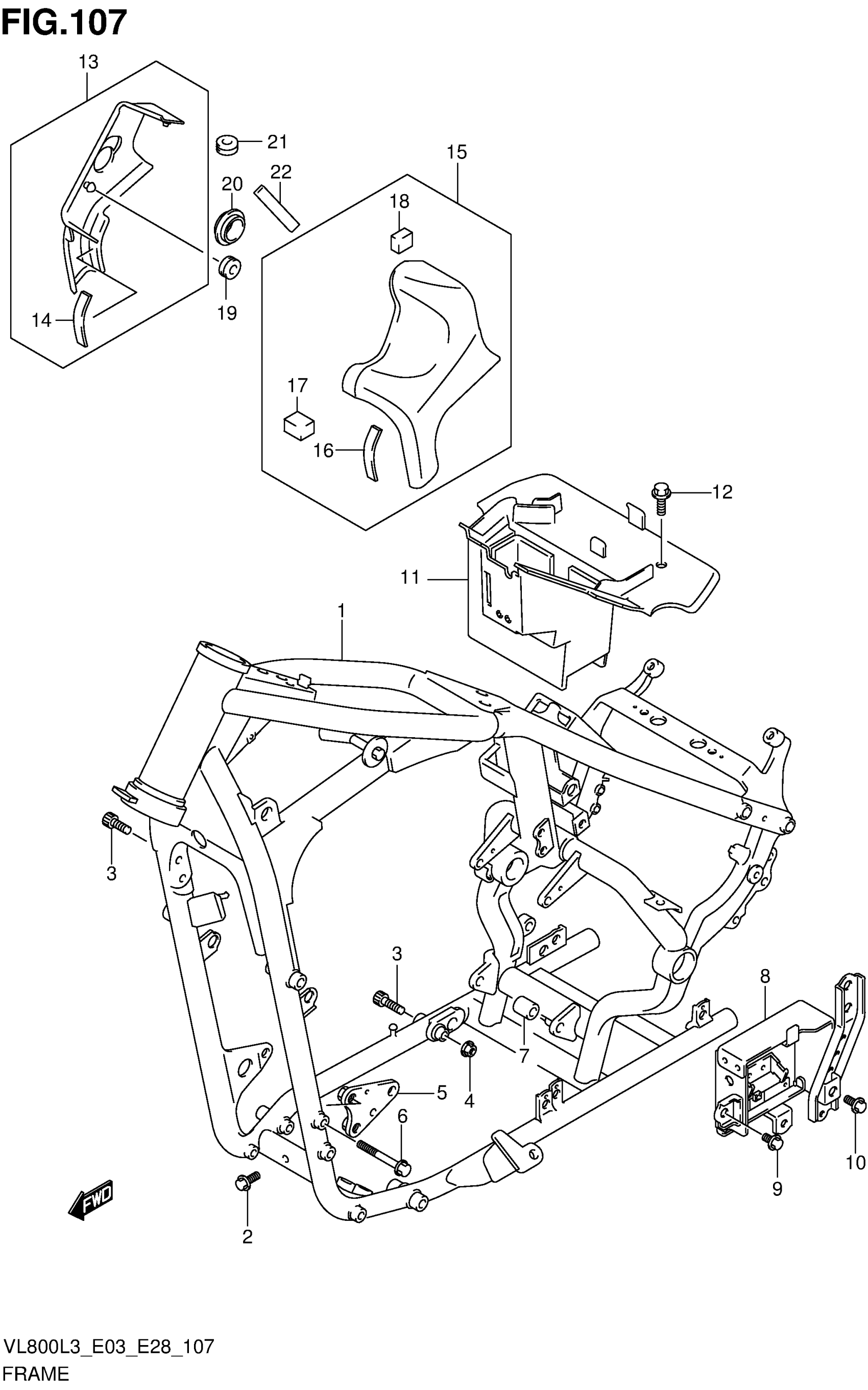

Suzuki VL800CL3 (2013) FRAME (VL800L3 E03) Diagram

#

Description
Price

1

FRAME (BLACK) This part replaces 41100-41F60-019.

41100-41F80-019

$4,088.83

2

BOLT

01550-0816B

$2.75

3

BOLT

07130-1035B

$5.63

4

NUT

08319-3110B

$4.20

5

PLATE, ENGINE MOUNT LH

41920-41F00

Unavailable

6

BOLT (8X65)

09112-08013

Unavailable

7

SPACER, LOWER

41941-41F00

Unavailable

8

HOLDER, ELECTRIC PARTS

41540-41F30

Unavailable

9

BOLT

01547-0612A

$2.01

10

BOLT (8X16)

01550-0816A

$2.31

11

HOLDER, ELECTRIC PARTS

47410-41F02

Unavailable

12

BOLT (6X16)

09113-06001

$2.75

13

COVER,FRAME HEAD,R (BLACK) This part replaces 47350-41F10-019.

47350-41F30-019

$83.92

14

CUSHION

53145-40A00

$2.30

15

COVER,FRAME HEAD,L (BLACK) This part replaces 47360-41F12-019.

47360-41F40-019

$79.73

16

CUSHION

53145-40A00

$2.30

17

CUSHION, LH LOWER

53146-05G00

$8.21

18

CUSHION, FRONT

94422-06G00

$6.57

19

CUSHION

09320-08018

$2.80

20

CAP, HEAD COVER RH

47355-41F01

$8.55

21

CUSHION

09320-09501

$2.06

22

CUSHION, FRAME HEAD COVER LOW

17798-39G00

$6.12
