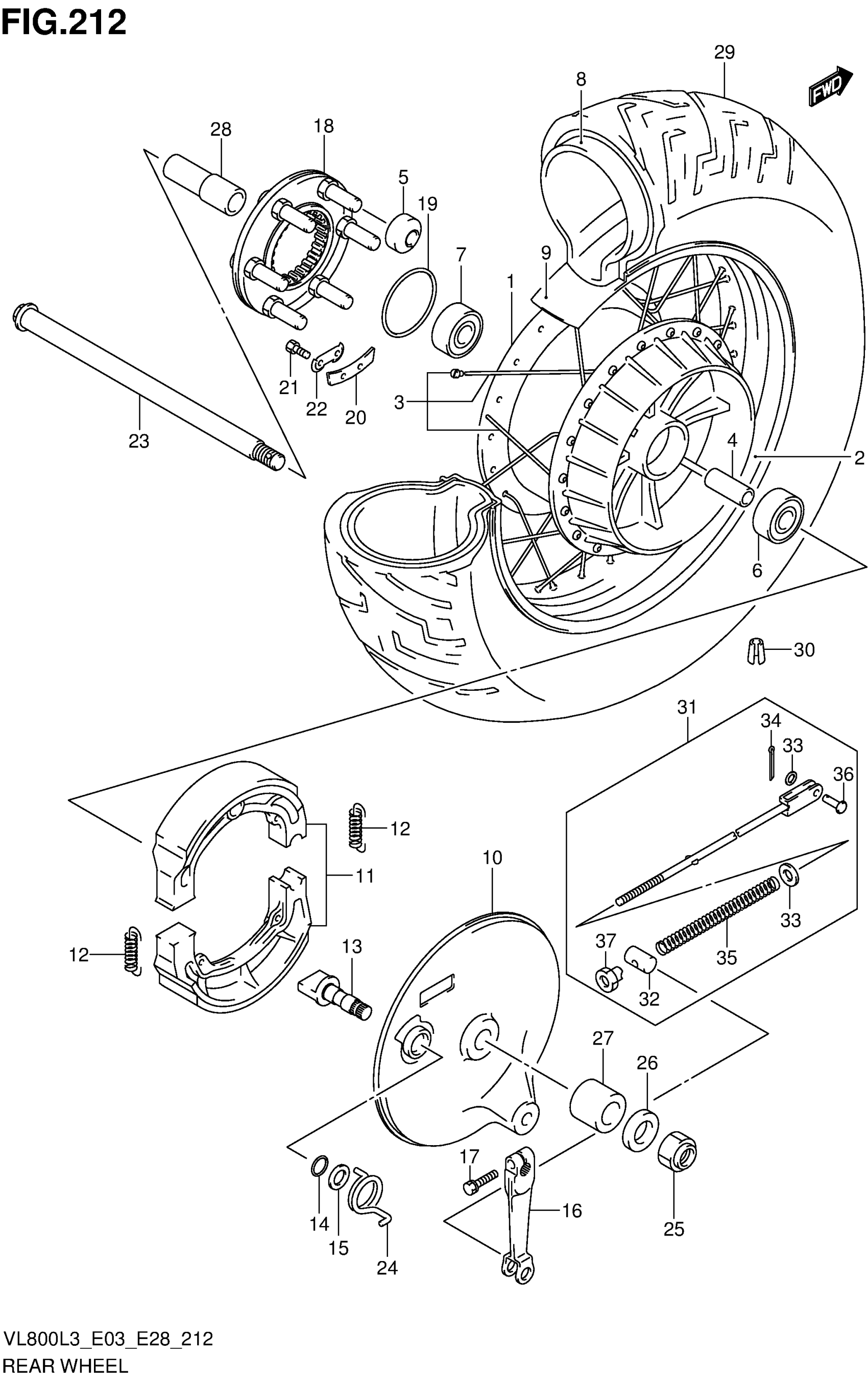

Suzuki VL800CL3 (2013) REAR WHEEL (VL800L3 E03) Diagram

#

Description
Price

1

HUB, REAR

64110-41F20

Unavailable

2

RIM, REAR WHEEL (15M/CXMT4.00)

65311-41F00

$401.62

3

SPOKE SET, REAR WHEEL

65320-41F00

$119.72

4

SPACER (17.5X25X113)

09180-17092

$27.53

5

BUSH

09319-12019

$12.00

6

BEARING This part replaces 08123-63037.

08123-6303B

$14.23

7

BEARING

08143-63037

$20.38

8

TUBE ASSY,WHEEL INNER This part replaces 65200-41F00.

65200-41F01

$64.00

9

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-41F00.

65261-41F10

$8.33

10

PANEL, REAR BRAKE ANCHOR (SILVER)

64210-38A70-20H

$338.13

11

SHOE SET, BRAKE

64400-38820

$44.27

12

SPRING, SHOE

55420-30000

$4.22

13

CAM, BRAKE

64441-38A20

$34.70

14

O RING (D:2.4,ID:14.8)

09280-15003

$1.77

15

WASHER (15.5X24X1.6)

09160-15048

$2.58

16

LEVER, BRAKE CAM

64451-38A01

$64.65

17

BOLT

01570-06257

$3.30

18

JOINT, HUB DRIVEN

64680-45113

$306.47

19

O RING (D:2.1,ID:65)

09280-65003

$4.03

20

WASHER, THRUST

64677-45110

$3.80

21

BOLT (6X16)

09119-06049

$1.63

22

WASHER

09169-06030

$3.42

23

AXLE, REAR (L:302)

64711-19F00

$95.17

24

SPRING

09448-33006

$10.03

25

NUT

08319-2116A

$9.78

26

WASHER (17X30X3.2)

09160-17050

$2.67

27

SPACER, RH

64741-41F00

$25.68

28

SPACER, LH

64772-34201

$26.03

29

TIRE (170/80-15M/C 77H) This part replaces 65100-41F00.

65100-41F01

$253.52

30

BALANCER WHEEL (15G) | 15G

55411-26G00

$8.73

30

BALANCER WHEEL (30G) | 30G

55413-41F00

$9.95

31

ROD ASSY, REAR BRAKE

43300-41F00

$26.32

32

PIN (13X18)

09209-13018

$3.13

33

WASHER

08322-0106B

$2.24

34

COTTER PIN

04111-2015A

$1.22

35

SPRING

09440-09004

$2.06

36

PIN (10X16)

09200-06013

$2.05

37

NUT

09150-06010

$2.80
