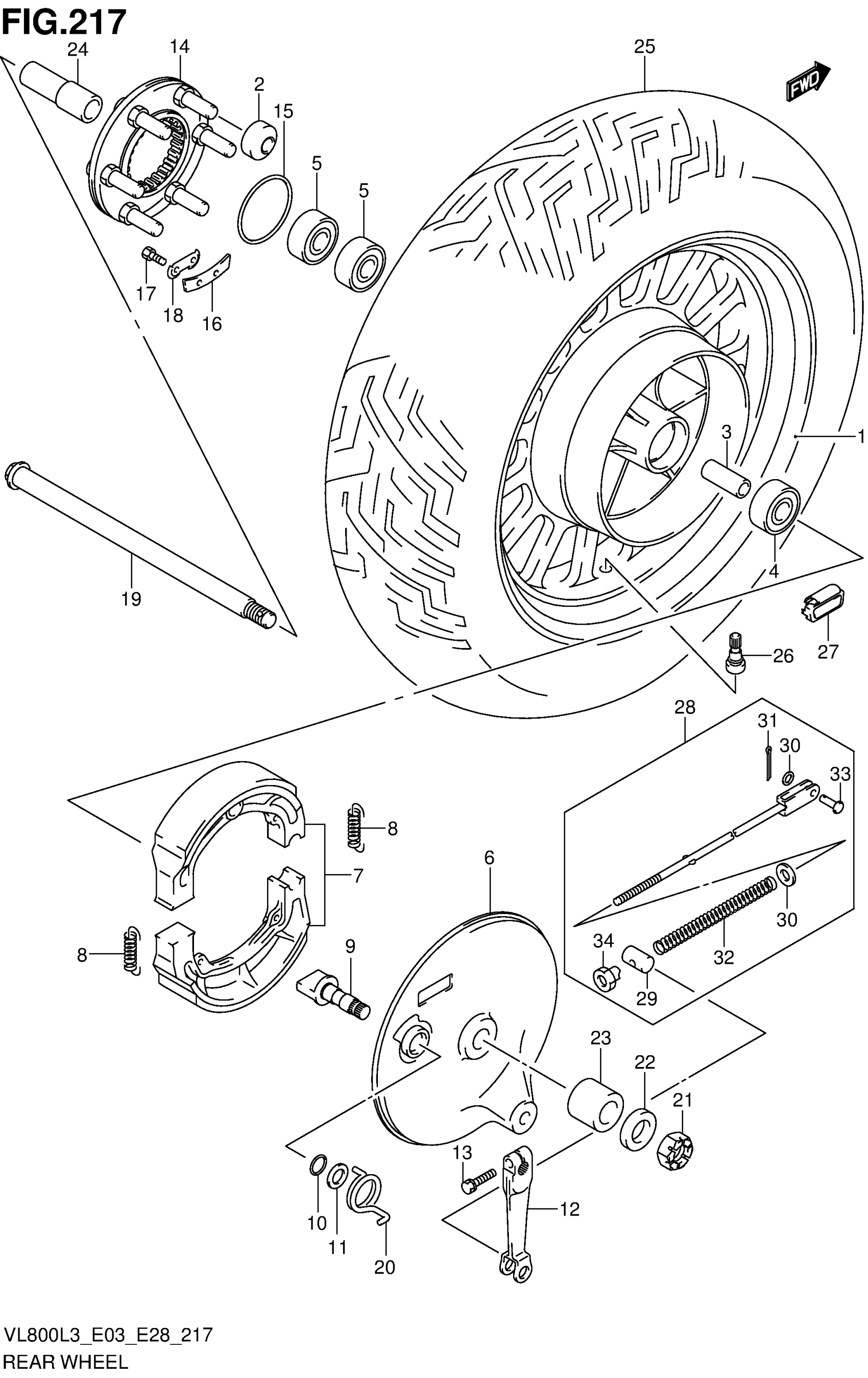

Suzuki VL800CL3 (2013) REAR WHEEL (VL800CL3 E33) Diagram

#

Description
Price

1

WHEEL, REAR (15M/CXMT4.00)

64150-41F00-20H

$1,561.83

2

BUSH

09319-12019

$12.00

3

SPACER (17.3X25X99)

09180-17112

Unavailable

4

BEARING This part replaces 08123-63037.

08123-6303B

$14.23

5

BEARING

08143-63037

$20.38

6

PANEL, REAR BRAKE ANCHOR (SILVER)

64210-38A70-20H

$338.13

7

SHOE SET, BRAKE

64400-38820

$44.27

8

SPRING, SHOE

55420-30000

$4.22

9

CAM, BRAKE

64441-38A20

$34.70

10

O RING (D:2.4,ID:14.8)

09280-15003

$1.77

11

WASHER (15.5X24X1.6)

09160-15048

$2.58

12

LEVER, BRAKE CAM

64451-38A01

$64.65

13

BOLT

01570-06257

$3.30

14

JOINT, HUB DRIVEN

64680-45113

$306.47

15

O RING (D:2.1,ID:65)

09280-65003

$4.03

16

WASHER, THRUST

64677-45110

$3.80

17

BOLT (6X16)

09119-06049

$1.63

18

WASHER

09169-06030

$3.42

19

AXLE, REAR (L:302)

64711-19F00

$95.17

20

SPRING

09448-33006

$10.03

21

NUT

08319-2116A

$9.78

22

WASHER (17X30X3.2)

09160-17050

$2.67

23

SPACER, RH

64741-41F00

$25.68

24

SPACER, LH

64772-34201

$26.03

25

TIRE,RR(170/80 This part replaces 65110-41F20.

65110-41F21

Unavailable

26

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

27

BALANCER, WHEEL NO.1 | 10G

43222-73H10

$6.57

27

BALANCER, WHEEL NO.2 | 20G

43224-73H10

$4.02

27

BALANCER, WHEEL NO.3 | 30G

43226-73H10

$4.69

28

ROD ASSY, REAR BRAKE

43300-41F00

$26.32

29

PIN (13X18)

09209-13018

$3.13

30

WASHER

08322-0106B

$2.24

31

COTTER PIN

04111-2015A

$1.22

32

SPRING

09440-09004

$2.06

33

PIN (10X16)

09200-06013

$2.05

34

NUT

09150-06010

$2.80
