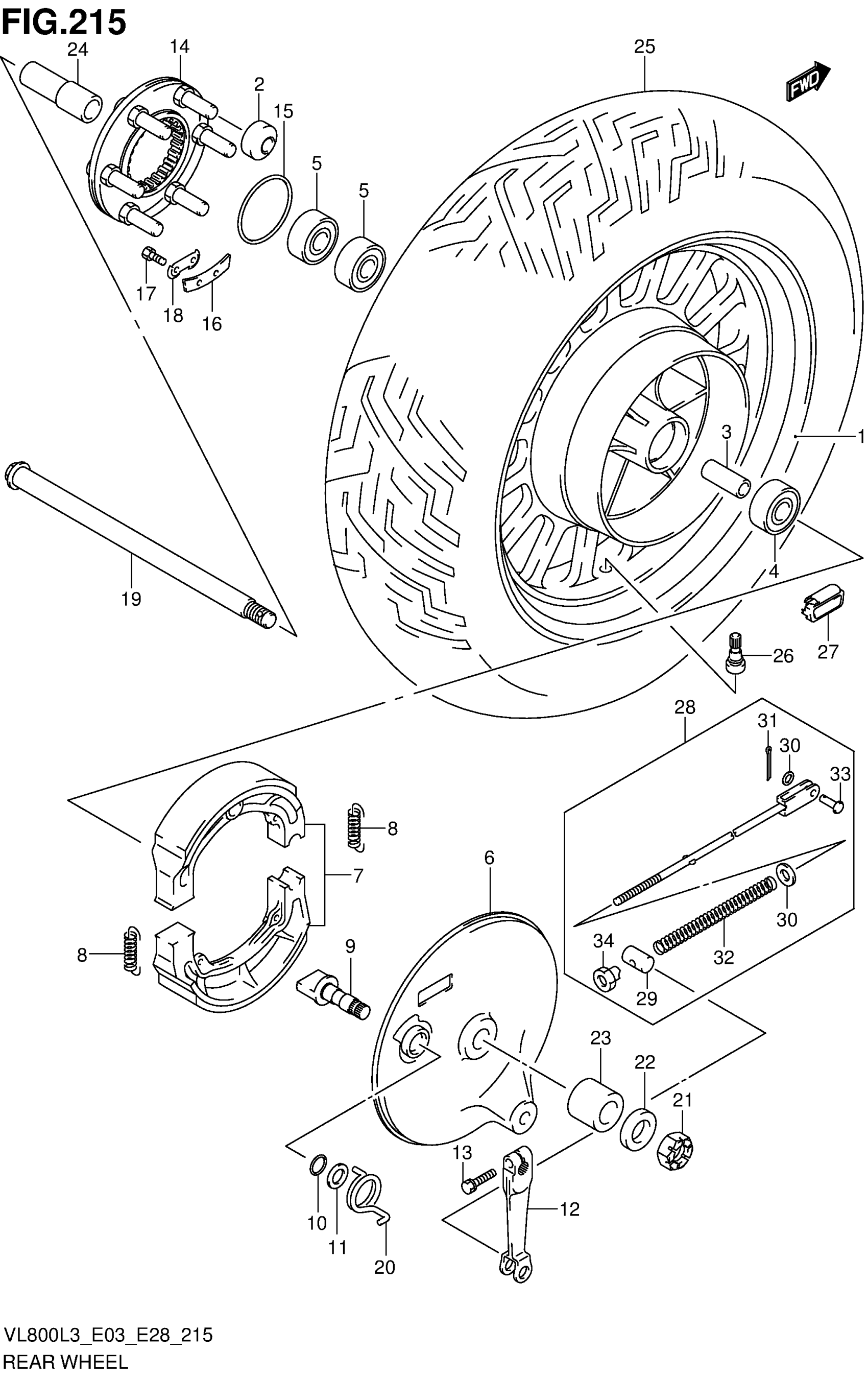

Suzuki VL800CL3 (2013) REAR WHEEL (VL800CL3 E03) Diagram

#

Description
Price

1

WHEEL, REAR (15M/CXMT4.00)

64150-41F00-20H

$1,430.52

2

BUSH

09319-12019

$13.11

3

SPACER (17.3X25X99)

09180-17112

Unavailable

4

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

5

BEARING

08143-63037

$22.58

6

PANEL, REAR BRAKE ANCHOR (SILVER)

64210-38A70-20H

$303.87

7

SHOE SET, BRAKE

64400-38820

$48.36

8

SPRING, SHOE

55420-30000

$4.48

9

CAM, BRAKE

64441-38A20

$30.75

10

O RING (D:2.4,ID:14.8)

09280-15003

$1.76

11

WASHER (15.5X24X1.6)

09160-15048

$2.56

12

LEVER, BRAKE CAM

64451-38A01

$57.67

13

BOLT

01570-06257

$3.03

14

JOINT, HUB DRIVEN

64680-45113

$275.40

15

O RING (D:2.1,ID:65)

09280-65003

$3.72

16

WASHER, THRUST

64677-45110

$2.92

17

BOLT (6X16)

09119-06049

$1.56

18

WASHER

09169-06030

$3.15

19

AXLE, REAR (L:302)

64711-19F00

$84.32

20

SPRING

09448-33006

$9.23

21

NUT

08319-2116A

$9.00

22

WASHER (17X30X3.2)

09160-17050

$2.45

23

SPACER, RH

64741-41F00

$22.75

24

SPACER, LH

64772-34201

$23.07

25

TIRE,RR(170/80 This part replaces 65110-41F20.

65110-41F21

Unavailable

26

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

27

BALANCER, WHEEL NO.1 | 10G

43222-73H10

$5.82

27

BALANCER, WHEEL NO.2 | 20G

43224-73H10

$5.50

27

BALANCER, WHEEL NO.3 | 30G

43226-73H10

$6.42

28

ROD ASSY, REAR BRAKE

43300-41F00

$27.95

29

PIN (13X18)

09209-13018

$3.42

30

WASHER

08322-0106B

$2.26

31

COTTER PIN

04111-2015A

$1.49

32

SPRING

09440-09004

$2.20

33

PIN (10X16)

09200-06013

$2.00

34

NUT

09150-06010

$3.10
