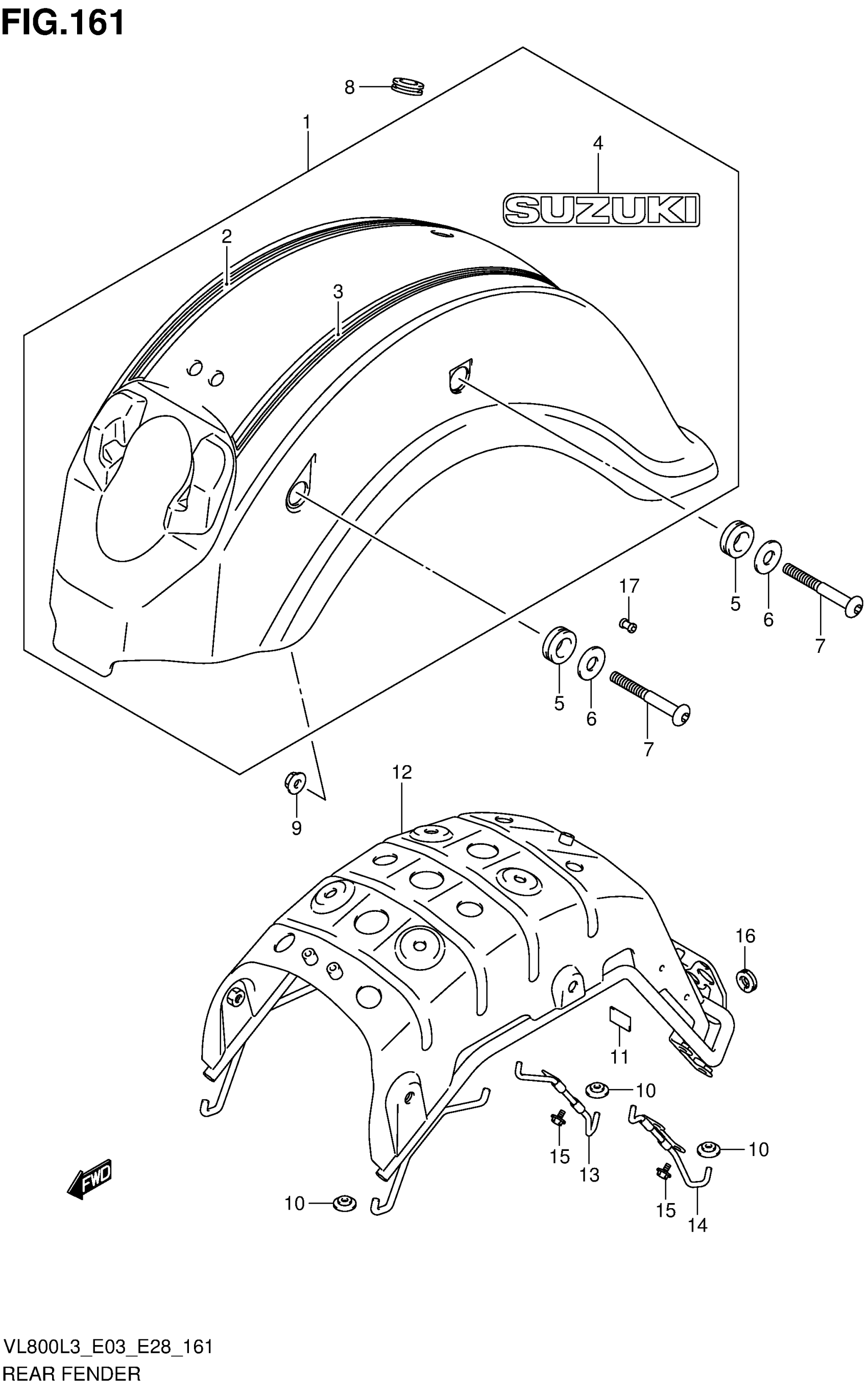

Suzuki VL800CL3 (2013) REAR FENDER (VL800TL3 E33) Diagram

#

Description
Price

1

FENDER,RR | FOR HYA This part replaces 63110-43H20-ABX.

63110-43H21-ABX

$690.22

1

FENDER,RR | FOR FGF This part replaces 63110-43H20-FGF.

63110-43H21-FGF

$732.70

2

TAPE SET, RH (BLACK) | FOR FGF

68170-43H00-AGU

Unavailable

2

TAPE SET, RH (NONE) | FOR ABX

68170-43H00-AGV

Unavailable

3

TAPE SET, LH (BLACK) | FOR FGF

68710-43H00-AGU

Unavailable

3

TAPE SET, LH (NONE) | FOR ABX

68710-43H00-AGV

Unavailable

4

.EMBLEM,"SUZUKI" (SILVER) | FOR ABX This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

4

EMBLEM,"SUZUKI" | FOR FGF This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

5

CUSHION

47191-24F00

$5.17

6

WASHER (15.5X26X2.3)

09160-15002

$1.91

7

BOLT

63161-41F00

$9.40

8

CUSHION

09320-15008

$3.89

9

NUT

08316-1008B

$2.66

10

CUSHION

09320-06026

$4.10

11

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.12

12

PLATE, REAR FENDER

63130-43H00

$421.08

13

BRACKET, LOWER RH

63150-43H00

$40.98

14

BRACKET, LOWER LH

63160-43H00

$40.98

15

BOLT

01550-0610B

$2.42

16

GROMMET

09308-10017

$5.20

17

PLUG (OD:9)

09250-07004

$3.42
