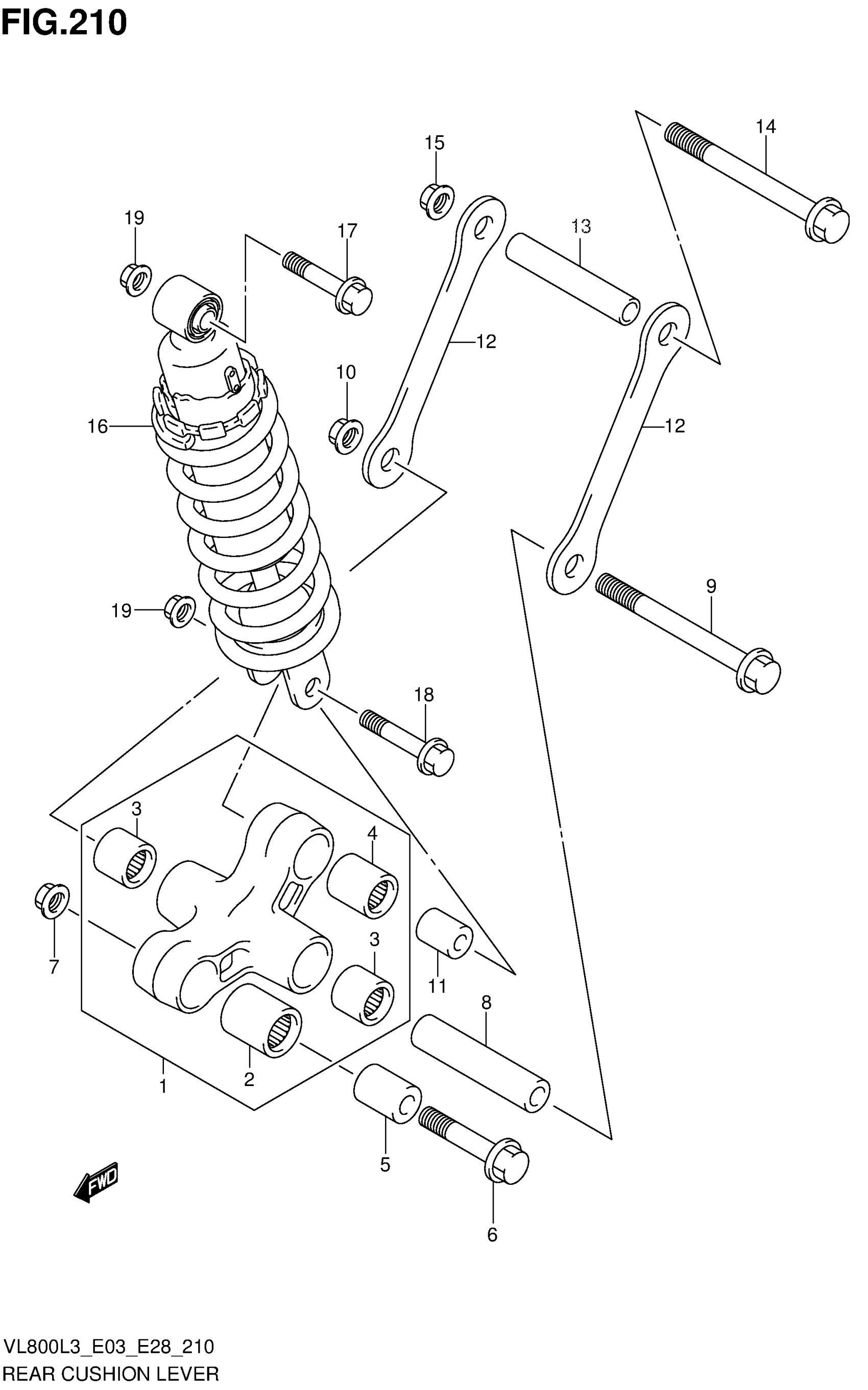

Suzuki VL800CL3 (2013) REAR CUSHION LEVER (VL800TL3 E28) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-33890

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

BOLT, FRONT (12X62)

62668-42A02

$10.67

7

NUT

08319-3112A

$3.76

8

SPACER, CENTER (12X17X94)

62626-33D00

$21.19

9

BOLT, CENTER (12X124)

62621-33D00

$28.62

10

NUT

08319-3112A

$3.76

11

SPACER, REAR (10X17X30)

62684-40A10

$12.15

12

ROD, REAR CUSHION LEVER

62641-41F00

$32.32

13

SPACER, ROD (12X17X94)

62626-33D00

$21.19

14

BOLT, ROD (12X124)

62621-33D00

$28.62

15

NUT

08319-3112A

$3.76

16

ABSORBER ASSY, REAR SHOCK

62100-41F10

Unavailable

17

BOLT (10X50)

09103-10064

$5.52

18

BOLT (10X54)

09103-10101

$4.00

19

NUT

08319-3110A

$2.73
