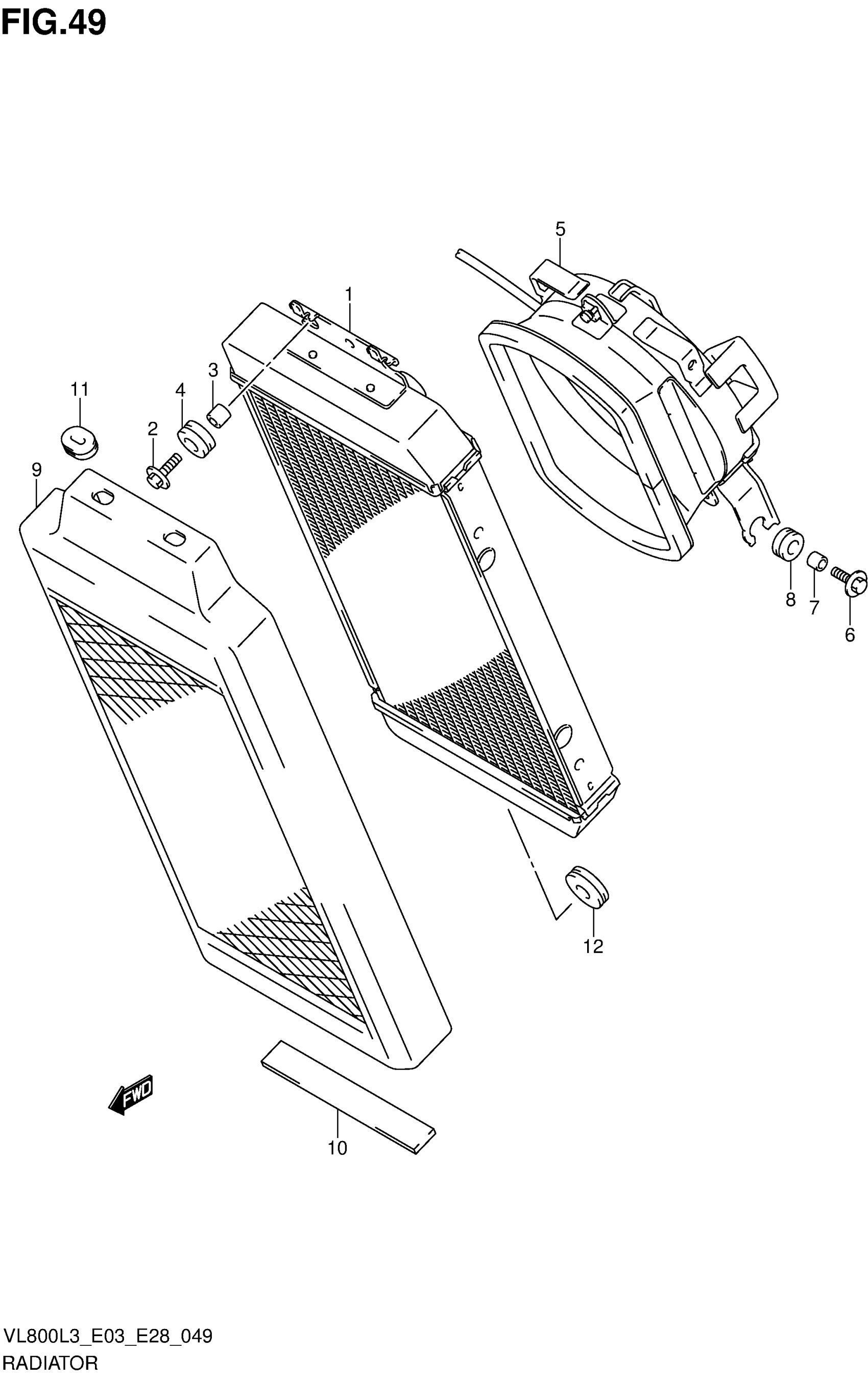

Suzuki VL800CL3 (2013) RADIATOR Diagram

#

Description

Price

1

RADIATOR ASSY, WATER

17710-41F20

$1,140.25

2

BOLT (6X20)

09116-06201

$2.72

3

SPACER (6.5X10X10)

09180-06310

$1.91

4

CUSHION

09320-10501

$6.23

5

FAN ASSY, RADIATOR

17800-41F20

$697.98

6

BOLT (6X20)

09116-06201

$2.72

7

SPACER (6.5X10X10)

09180-06310

$1.91

8

CUSHION

09320-10055

$4.50

9

COVER, RADIATOR

17760-41F00

$53.18

10

CUSHION, INNER

17798-39G00

$6.49

11

CUSHION

09320-03004

$2.12

12

CUSHION

09320-08028

$3.04
