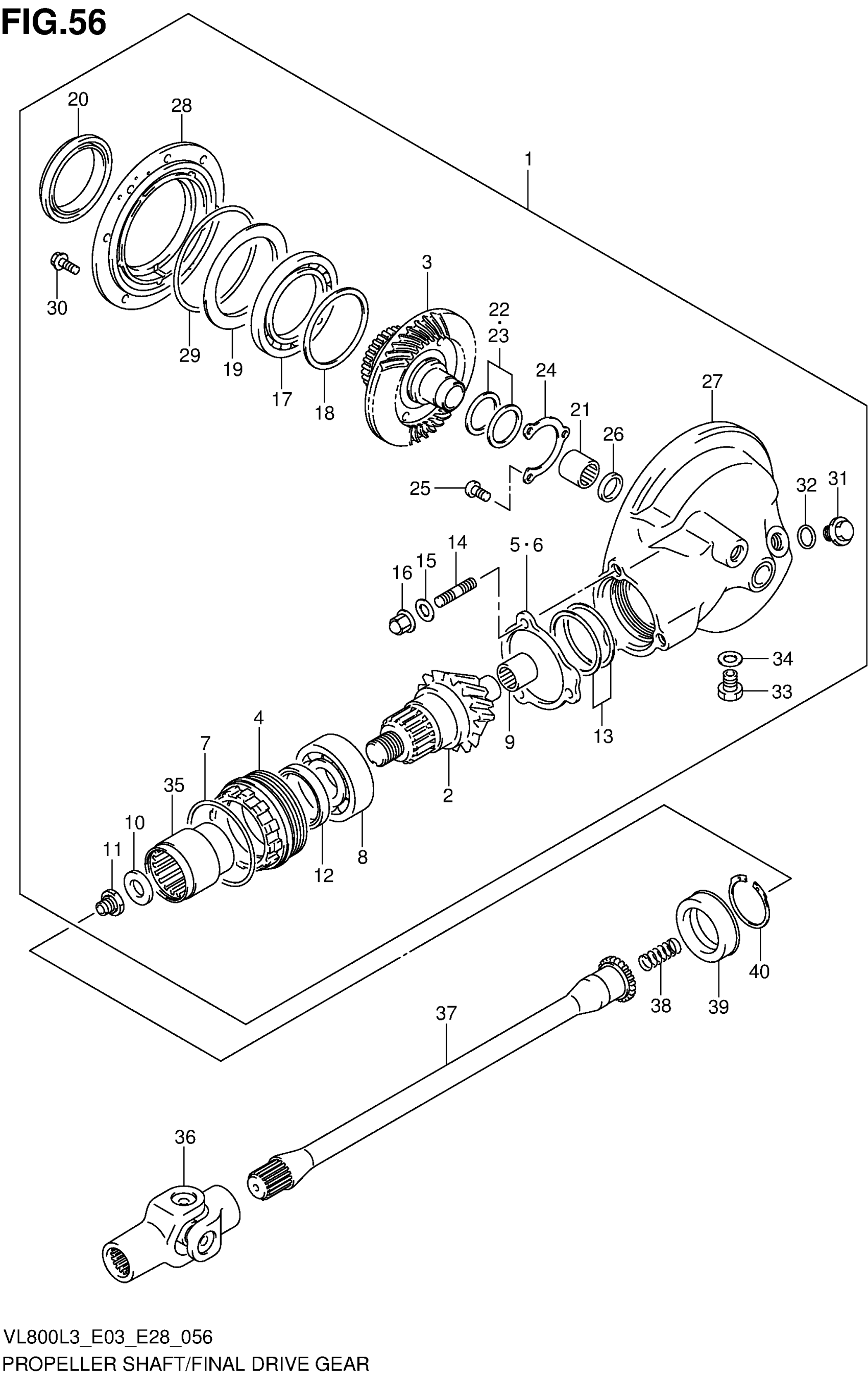

Suzuki VL800CL3 (2013) PROPELLER SHAFT/FINAL DRIVE GEAR Diagram

#

Description
Price

1

GEAR & CASE SET, FINAL BEVEL (SILVER)

27301-38840-20H

$2,332.05

2

GEAR, FINAL DRIVE BEVEL (NT:11)

27311-38A00

$297.98

3

GEAR, FINAL DRIVEN BEVEL (NT:34)

27320-45C01

$463.53

4

STOPPER, BEARING

27312-38A00

$72.73

5

PLATE

27313-38A00

$7.37

6

PLATE

27313-38A10

$7.37

7

O RING (D:1.9,ID:61.6)

09280-62002

$3.29

8

BEARING (30X62X23.8)

09267-30005

$119.55

9

BEARING (17X32X16)

09263-17028

$48.78

10

WASHER (16X29X4)

09160-16029

$6.35

11

NUT

09159-16010

$10.00

12

OIL SEAL (38X54X6)

09283-38009

$17.33

13

SHIM SET, FINAL | T:0.3/0.35/0.4/0.5/0.6

27445-38810

$28.18

14

STUD BOLT

09108-10095

$5.72

15

WASHER

09164-10008

$1.71

16

NUT

09159-10026

$6.20

17

BEARING (70X110X13)

09262-70001

$140.93

18

SHIM SET, DRIVE GEAR BEARING | T:0.35/0.4/0.5/0.6

27327-34810

$38.45

19

PLATE

27328-34200

$7.37

20

OIL SEAL (70X96X16) | RH

09289-70001

$51.76

21

BEARING (32X46X17.7) | LH

09263-32007

$81.08

22

SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/1.35

27326-34820

Unavailable

23

SHIM SET, FINAL DRIVE GEAR | T:1.40/1.45/1.50

27326-34810

Unavailable

24

RETAINER, BEARING

27329-34200

Unavailable

25

SCREW (6X12)

09125-06122

$2.44

26

OIL SEAL (30X42X7)

09283-30028

$9.60

27

CASE, FINAL GEAR This part replaces 27450-38A70-20H.

27450-38A20

Unavailable

28

CASE, FINAL GEAR BEARING

27460-07A01

Unavailable

29

O RING (D:3.5,ID:131.6)

09280-00015

$11.03

30

BOLT

01550-0825A

$2.32

31

PLUG

09247-18001

$8.83

32

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

33

PLUG (MAGNETO) | OIL DRAIN

09247-14002

$5.24

34

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

35

COUPLING, PROPELLER SHAFT

27172-38A00

$53.04

36

YOKE, UNIVERSAL JOINT

27100-38A60

$348.15

37

SHAFT, PROPELLER

27151-41F00

$189.11

38

SPRING

09440-18019

$2.82

39

OIL SEAL (28.4X48X15)

09283-30051

$10.49

40

CIRCLIP

09381-40003

$4.64
