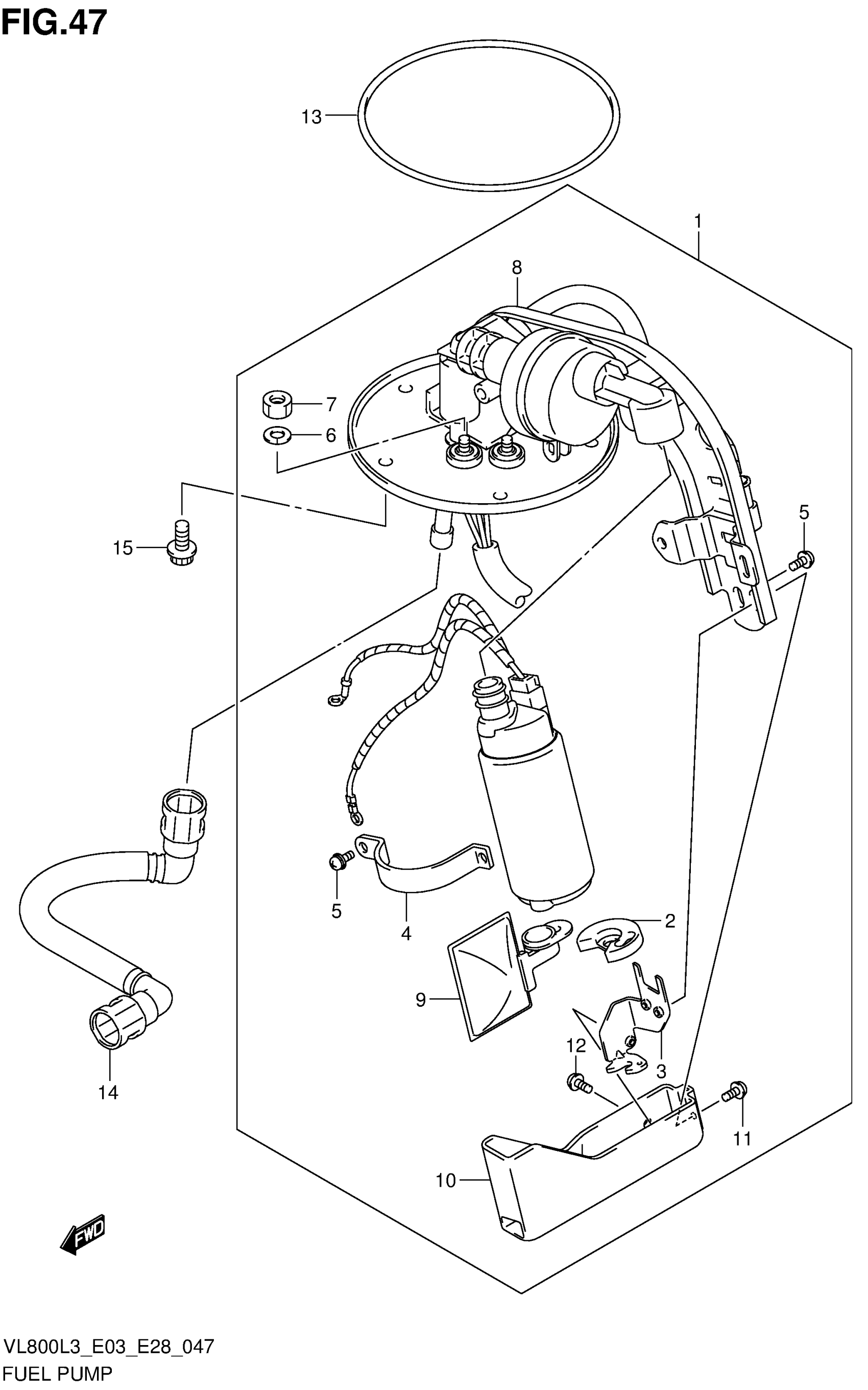

Suzuki VL800CL3 (2013) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-41F30

$618.20

2

CUSHION

15111-41F10

$17.67

3

HOLDER

15112-41F10

Unavailable

4

BAND, FUEL PUMP

15115-10F00

Unavailable

5

SCREW

15116-10F10

Unavailable

6

SPRING WASHER

15172-35F00

$7.20

7

NUT

15173-35F00

Unavailable

8

PLATE ASSY

15410-41F30

$530.73

9

STRAINER

15420-41F10

$100.92

10

VESSEL

15425-41F10

$34.93

11

SCREW

15429-41F10

Unavailable

12

SCREW

15429-41F20

Unavailable

13

O-RING

15201-35F00

$27.60

14

HOSE, FUEL This part replaces 15810-39G02.

15810-39G03

$55.57

15

BOLT

07120-0612A

$2.50
