2013 Suzuki VL800CL3 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2013 Suzuki VL800CL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

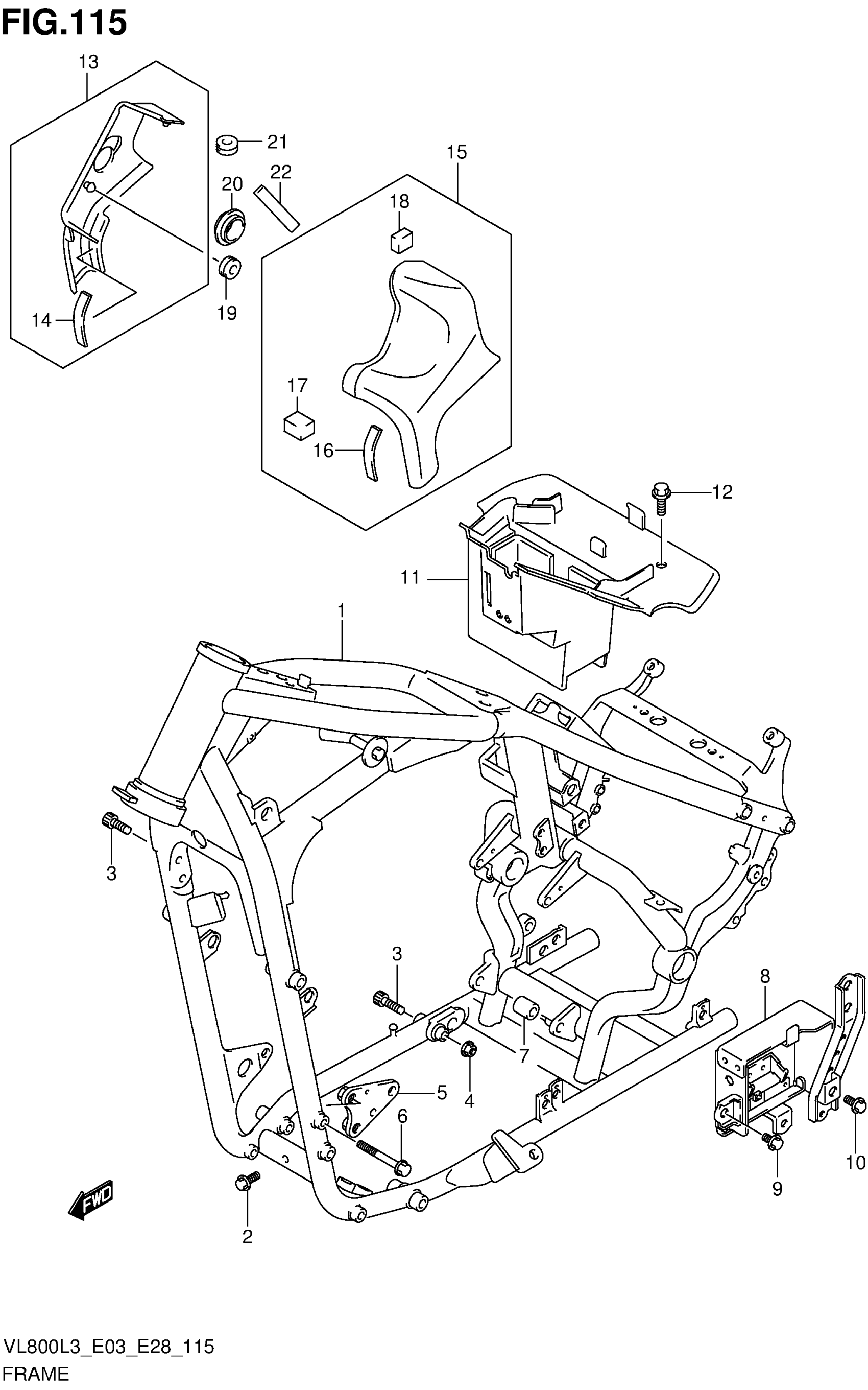

2013 Suzuki VL800CL3 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK) This part replaces 41100-41F60-019.

41100-41F80-019

1
Out of stock

2

BOLT

01550-0816B

2
Out of stock

3

BOLT

07130-1035B

4
Out of stock

4

NUT

08319-3110B

4
Out of stock

5

PLATE, ENGINE MOUNT LH

41920-41F00

1
Out of stock

6

BOLT (8X65)

09112-08013

2
Out of stock

7

SPACER, LOWER

41941-41F00

1
Out of stock

8

HOLDER, ELECTRIC PARTS

41540-41F30

1
Out of stock

9

BOLT

01547-0612A

1
Out of stock

10

BOLT (8X16)

01550-0816A

2
Out of stock

11

HOLDER, ELECTRIC PARTS

47410-41F02

1
Out of stock

12

BOLT (6X16)

09113-06001

4
Out of stock

13

COVER,FRAME HEAD,R (BLACK) This part replaces 47350-41F10-019.

47350-41F30-019

1
Out of stock

14

CUSHION

53145-40A00

2
Out of stock

15

COVER,FRAME HEAD,L (BLACK) This part replaces 47360-41F12-019.

47360-41F40-019

1
Out of stock

16

CUSHION

53145-40A00

1
Out of stock

17

CUSHION, LH LOWER

53146-05G00

1
Out of stock

18

CUSHION, FRONT

94422-06G00

1
Out of stock

19

CUSHION

09320-08018

2
Out of stock

20

CAP, HEAD COVER RH

47355-41F01

1
Out of stock

21

CUSHION

09320-09501

2
Out of stock

22

CUSHION, FRAME HEAD COVER LOW

17798-39G00

1
Out of stock
