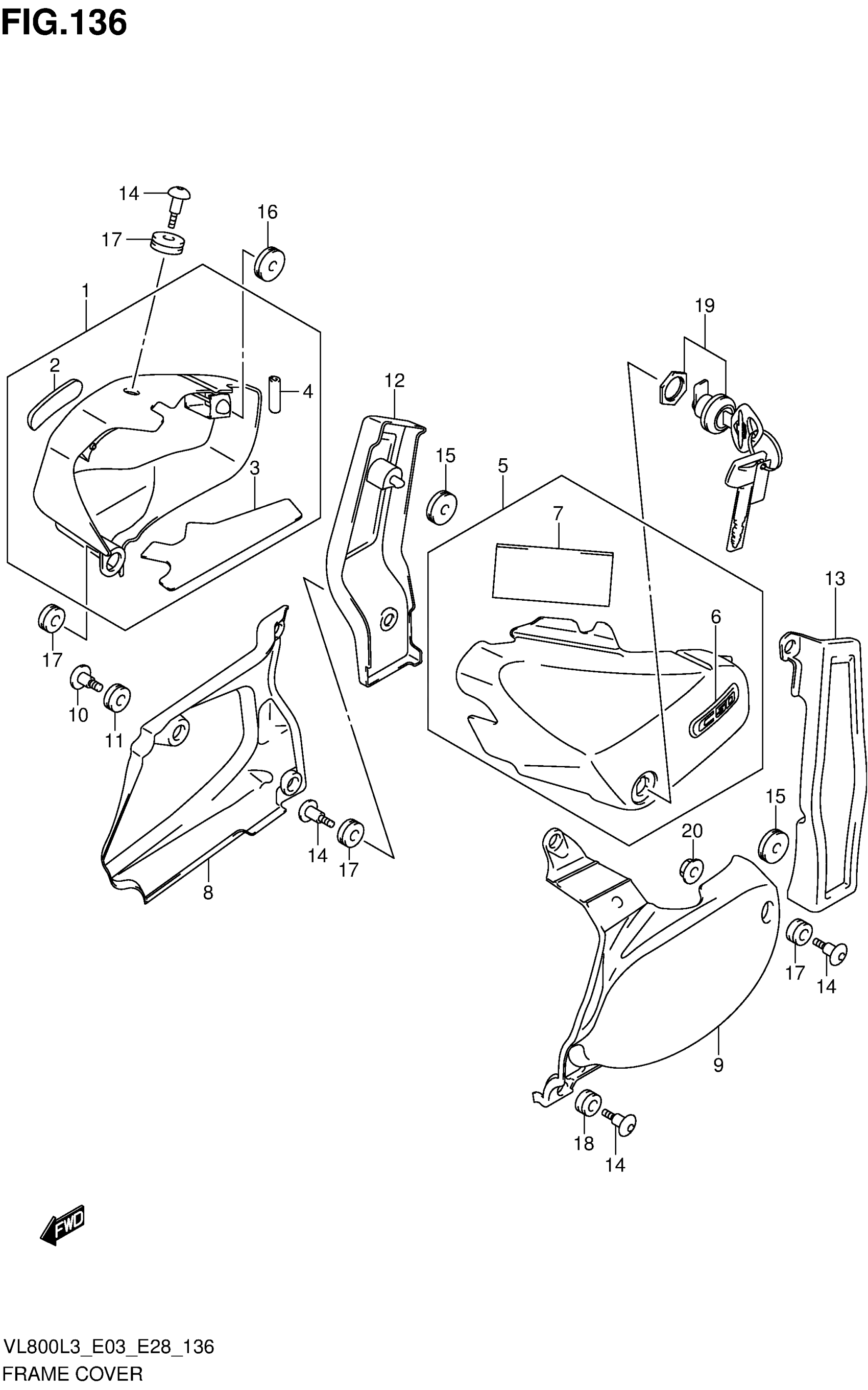

Suzuki VL800CL3 (2013) FRAME COVER (VL800CL3 E28) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR AAC This part replaces 47110-41F60-YVB.

47110-41F61-YVB

$231.12

1

COVER, FRAME RH (WHITE) | FOR FGF

47110-41F60-YBD

Unavailable

2

EMBLEM, "C50" This part replaces 68131-41F40.

68131-41F41

$33.43

3

SHIELD, FRAME COVER RH

47166-41F00

$17.83

4

MOLDING, RH

94631-35F00

$7.40

5

COVER, FRAME LH (BLACK) | FOR AAC This part replaces 47210-41FL0-YVB.

47210-41FL1-YVB

$231.12

5

COVER,SIDE,L(WH | FOR FGF This part replaces 47210-41FL0-YBD.

47210-41FL1-YBD

Unavailable

6

EMBLEM, "C50" This part replaces 68131-41F40.

68131-41F41

$33.43

7

CUSHION, LH

47217-41F00

$11.98

8

COVER, SIDE LOWER RH

47130-41F00

$267.82

9

COVER, SIDE LOWER LH

47231-41F00

$382.15

10

SCREW

47133-43H00

$6.03

11

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

12

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$137.92

13

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$137.92

14

SCREW (6X20)

09139-06126

$4.04

15

CUSHION

09320-08018

$3.04

16

CUSHION

09320-08028

$3.04

17

CUSHION

09320-09501

$2.03

18

CUSHION This part replaces 09320-09045.

09320-09062

$2.00

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

20

NUT

08316-1006B

$2.50
