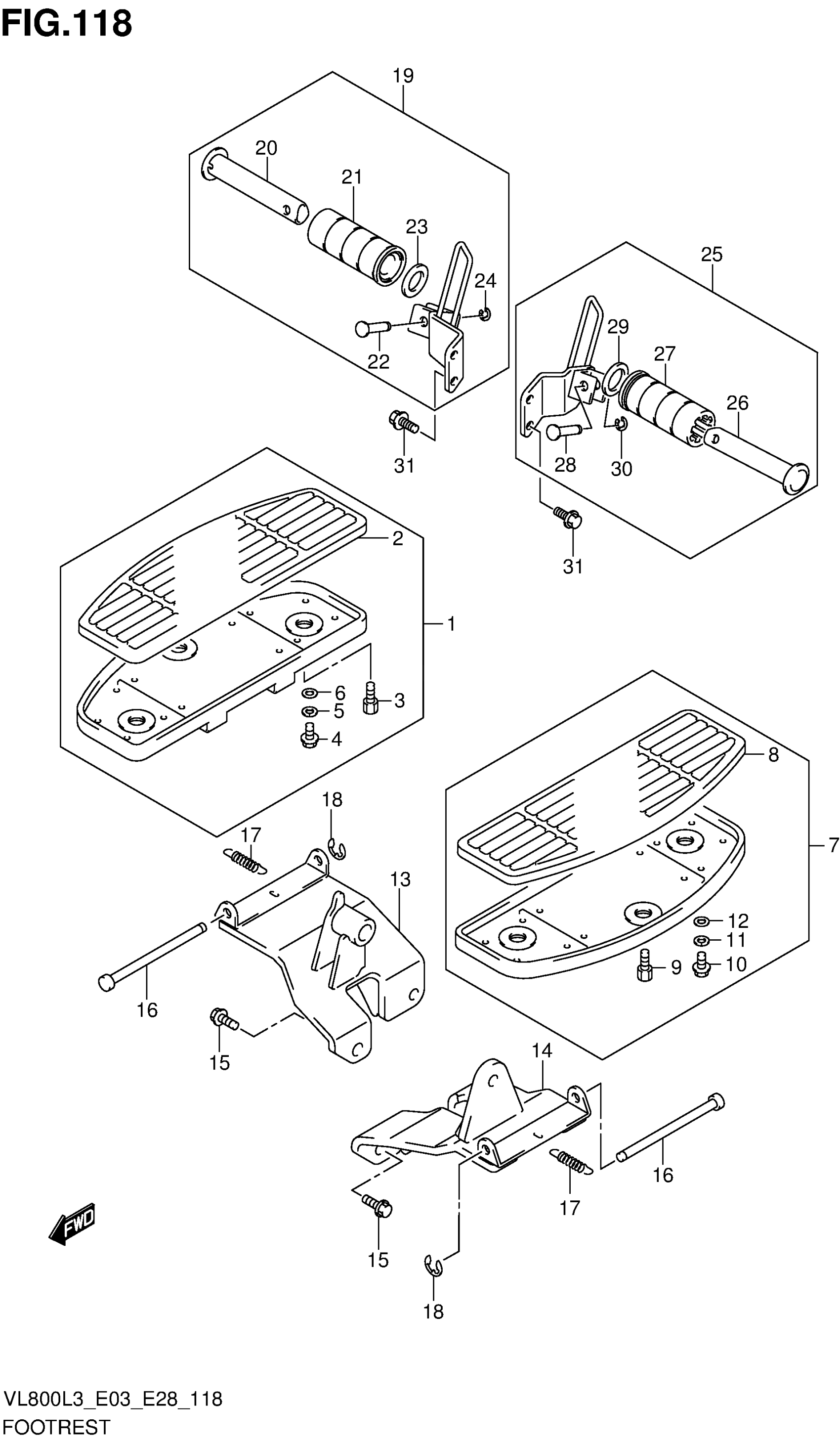

Suzuki VL800CL3 (2013) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,FRONT RH This part replaces 43501-10F11.

43501-10F12

$209.05

2

RUBBER

43550-10F10

Unavailable

3

.BOLT,BANK SENSOR

43576-07D01

$8.85

4

BOLT

01550-0610A

$1.97

5

WASHER (6.5X22X1.6)

09160-06158

$2.30

6

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

7

FOOTREST ASSY,FRONT LH This part replaces 43502-10F11.

43502-10F12

$209.05

8

RUBBER

43550-10F10

Unavailable

9

.BOLT,BANK SENSOR

43576-07D01

$8.85

10

BOLT

01550-0610A

$1.97

11

WASHER (6.5X22X1.6)

09160-06158

$2.30

12

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

13

BRACKET, FRONT FOOTREST RH

43510-41F30

$96.75

14

BRACKET, FRONT FOOTREST LH

43520-41F30

$100.02

15

BOLT

01580-1030B

$5.18

16

PIN,FRONT FOOTREST

43539-10F00

$8.13

17

SPRING

09443-11033

$4.50

18

E RING

08332-1106A

$1.49

19

FOOTREST ASSY, PILLION RH

43600-41F50

$102.17

20

BAR

43610-39G00

$22.52

21

RUBBER

43612-39G00

$10.02

22

PIN

43636-25D00

$10.65

23

WASHER (19.5X32X2)

09160-19024

$2.65

24

E-RING

08332-1104B

$1.78

25

FOOTREST ASSY, PILLION LH

43700-41F50

$102.17

26

BAR

43610-39G00

$22.52

27

RUBBER

43612-39G00

$10.02

28

PIN

43636-25D00

$10.65

29

WASHER (19.5X32X2)

09160-19024

$2.65

30

E-RING

08332-1104B

$1.78

31

BOLT (8X16)

09103-08412

$3.03
