2013 Suzuki VL800CL3 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2013 Suzuki VL800CL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

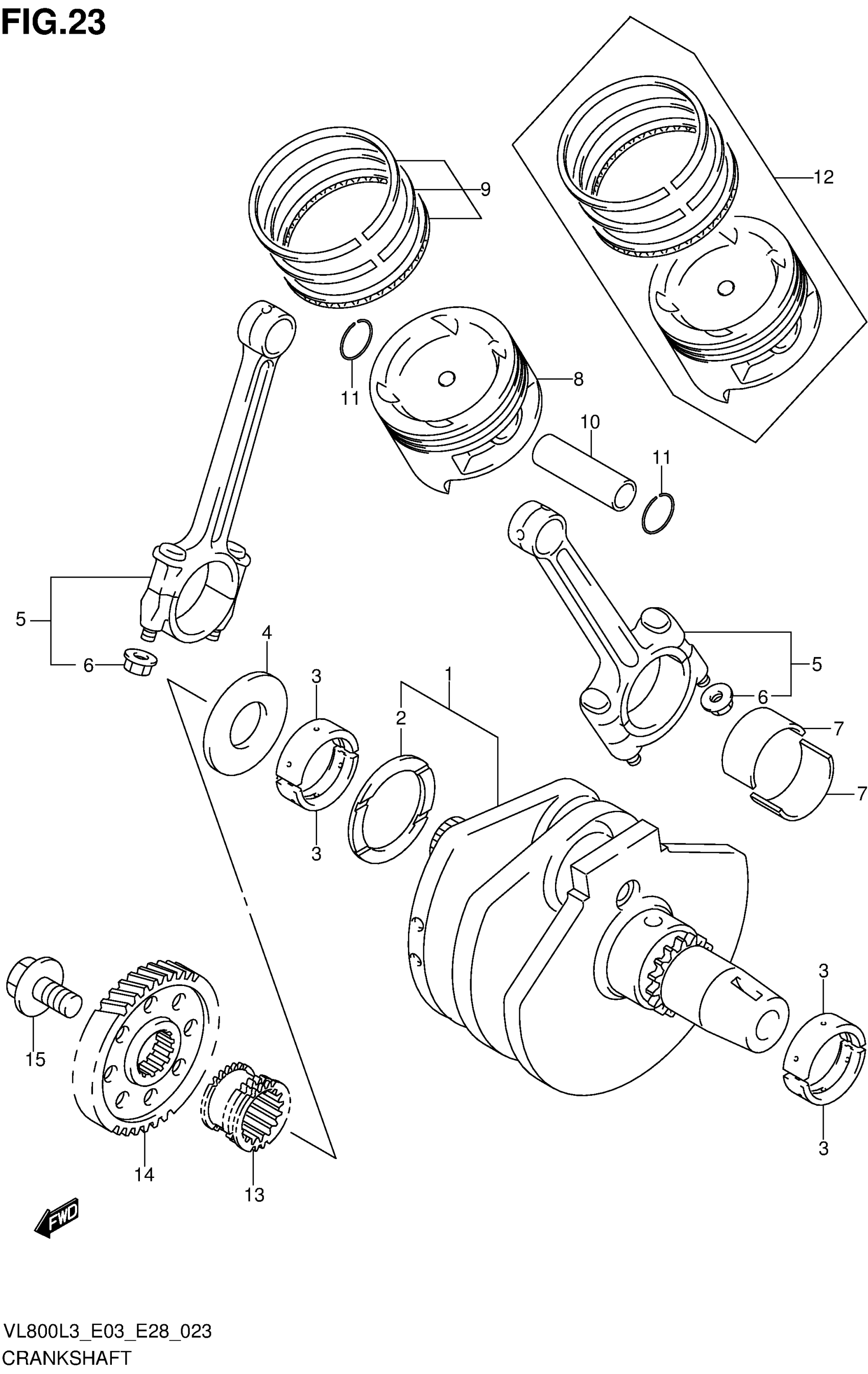

2013 Suzuki VL800CL3 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET This part replaces 12000-41810.

12000-41830

1
Out of stock

2

WASHER (48.1X64X1.94)

09160-48001

1
Out of stock

2

WASHER (48.1X64X1.96)

09160-48002

1
Out of stock

2

WASHER (48.1X64X1.99)

09160-48003

1
Out of stock

2

WASHER (48.1X64X2.01)

09160-48004

1
Out of stock

2

WASHER (48.1X64X2.04)

09160-48005

1
Out of stock

2

WASHER (48.1X64X2.06)

09160-48006

1
Out of stock

2

WASHER (48.1X64X2.09)

09160-48007

1
Out of stock

2

WASHER (48.1X64X2.11)

09160-48008

1
Out of stock

2

WASHER (48.1X64X2.14)

09160-48009

1
Out of stock

2

WASHER (48.1X64X2.16)

09160-48010

1
Out of stock

3

BEARING, CRANKSHAFT (GREEN)

12229-39G00-0A0

4
Out of stock

3

BEARING, CRANKSHAFT (BLACK)

12229-39G00-0B0

4
Out of stock

3

BEARING, CRANKSHAFT (BROWN)

12229-39G00-0C0

4
Out of stock

4

WASHER, CRANK THRUST

12652-38A00

1
Out of stock

5

ROD ASSY, CONNECTING

12160-45C30

2
Out of stock

6

NUT

09159-09001

4
Out of stock

7

BEARING, CRANK PIN (GREEN)

12164-38E00-0A0

4
Out of stock

7

BEARING, CRANK PIN (BLACK)

12164-38E00-0B0

4
Out of stock

7

BEARING, CRANK PIN (BROWN)

12164-38E00-0C0

4
Out of stock

7

BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0

4
Out of stock

7

BEARING, CRANK PIN (BLUE)

12164-38E00-0E0

4
Out of stock

8

PISTON This part replaces 12111-41F00-0F0.

12111-41F10-0F0

2
Out of stock

9

RING SET, PISTON

12140-41F00

2
Out of stock

10

PIN,PISTON

12151-24A00

2
Out of stock

11

CIRCLIP

09381-20004

4
Out of stock

12

PISTON SET (OS:0.5) | OPT This part replaces 12100-41F00-050.

12100-41F10-050

2
Out of stock

13

SPROCKET, CAM CHAIN DRIVE RH (NT:21)

12731-38A00

1
Out of stock

14

GEAR, PRIMARY DRIVE (NT:42)

21111-38A00

1
Out of stock

15

BOLT (12X28)

09103-12013

1
Out of stock
