2013 Suzuki VL800CL3 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2013 Suzuki VL800CL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

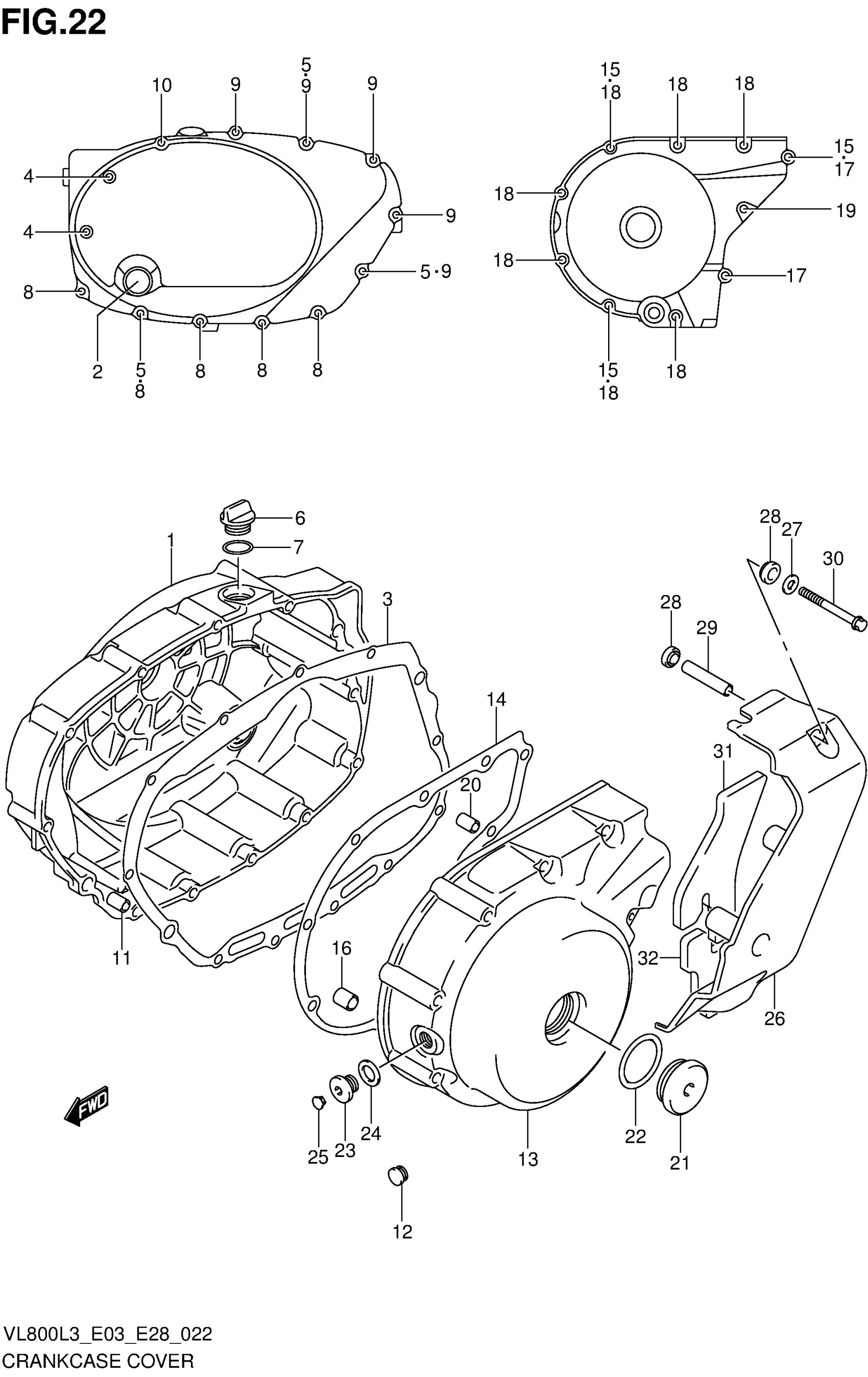

2013 Suzuki VL800CL3 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-41F00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-41F00

1
Out of stock

4

BOLT (6X105)

09103-06270

2
Out of stock

5

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

BOLT (6X30)

09103-06213

5

$2.63

In stock

9

BOLT (6X50)

09103-06238

5

$2.85

In stock

10

BOLT (6X85)

09103-06226

1
Out of stock

11

PIN

04211-09189

2

$1.77

In stock

12

CAP (OD:12)

09250-08013

2

$2.92

In stock

13

COVER, GENERATOR

11351-41F10

1
Out of stock

14

GASKET, GENERATOR COVER

11483-41F00

1
Out of stock

15

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

16

PIN (8.4X11X20)

09206-11007

1
Out of stock

17

BOLT (6X40)

09103-06215

2
Out of stock

18

BOLT (6X55)

09103-06216

7
Out of stock

19

BOLT (6X85)

09103-06226

1
Out of stock

20

PIN

04211-09189

1

$1.77

In stock

21

PLUG (36X10)

09259-36008

1
Out of stock

22

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

23

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

24

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

25

CAP (OD:12)

09250-08012

1
Out of stock

26

COVER, SECONDARY DRIVE

11361-41F00

1
Out of stock

27

WASHER (6.5X14X1.6)

09160-06125

3
Out of stock

28

WASHER (8.7X16X5)

09161-09005

6
Out of stock

29

SPACER (6.5X9X41.3)

09180-06280

3
Out of stock

30

BOLT (6X55)

09103-06216

3
Out of stock

31

CUSHION, SEC DRIVE COVER NO.1

11362-39G00

1
Out of stock

32

CUSHION, SEC DRIVE COVER NO.2

11363-39G00

1
Out of stock
