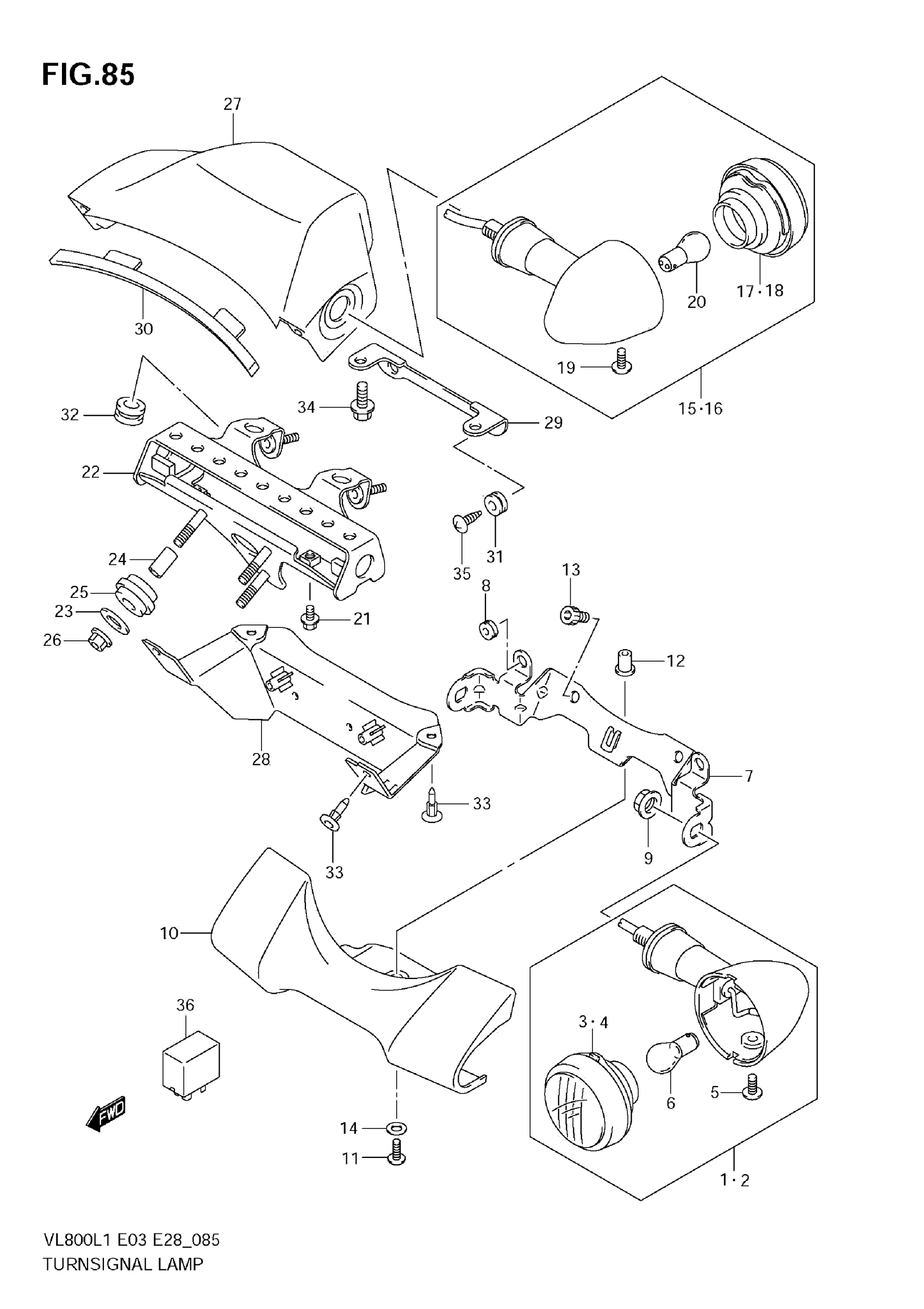

Suzuki VL800CL1 (2011) TURNSIGNAL LAMP (VL800T E3) Diagram

#

Description
Price

1

FRONT TURNSIGNAL ASSY, RH

35601-41FC0

$152.27

2

FRONT TURNSIGNAL ASSY, LH

35602-41FC0

$151.52

3

LENS | FOR RH

35610-38AA0

$28.79

4

LENS | FOR LH

35630-38AA0

$29.21

5

SCREW (4X10)

35623-38AA0

$4.67

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

7

BRACKET This part replaces 35616-41FA2.

35616-41FA3

$68.43

8

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

9

NUT

08310-0010B

$2.95

10

COVER, FRONT TURNSIGNAL

35641-41F02

$101.80

11

SCREW (5X8)

09139-05042

$2.70

12

NUT, COVER

09159-05019

$6.44

13

BOLT

07130-0812B

$2.68

14

WASHER

09160-05048

$1.76

15

LAMP ASSY, REAR RH

35603-38AH0

$157.43

16

LAMP ASSY, REAR LH

35604-38AH0

$151.52

17

LENS, RH

35610-38AH0

$44.02

18

LENS, LH

35630-38AH0

$44.02

19

SCREW (4X10)

35623-38AA0

$4.67

20

BULB (12V21W)

09471-12045

$2.95

21

BOLT, RR TURN (6X14)

09103-06507

$4.70

22

BRACKET, REAR TURNSIGNAL This part replaces 35620-43H00.

35620-43H01

$60.93

23

WASHER (6.5X20X1.2)

09160-06077

$1.89

24

SPACER (6.4X10X18)

09180-06195

$4.70

25

CUSHION, BRACKET

09320-10504

$6.28

26

NUT, BRACKET

08316-1006A

$2.19

27

COVER, RR TURN UPPER

35621-43H00

$124.85

28

COVER, RR TURN LOWER

35622-06J00

$48.27

29

BRACKET, RR TURN COVER

35623-43H00

$11.93

30

GASKET, RR TURN COVER

35657-43H00

$9.35

31

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

32

CUSHION (8.4X18X6)

09320-08066

$7.44

33

CLIP, RR COVER

09409-06314-5PK

$2.80

34

BOLT, RR COVER BKT

01550-0612A

$1.97

35

SCREW, RR COVER

03541-0510A

$1.43

36

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
