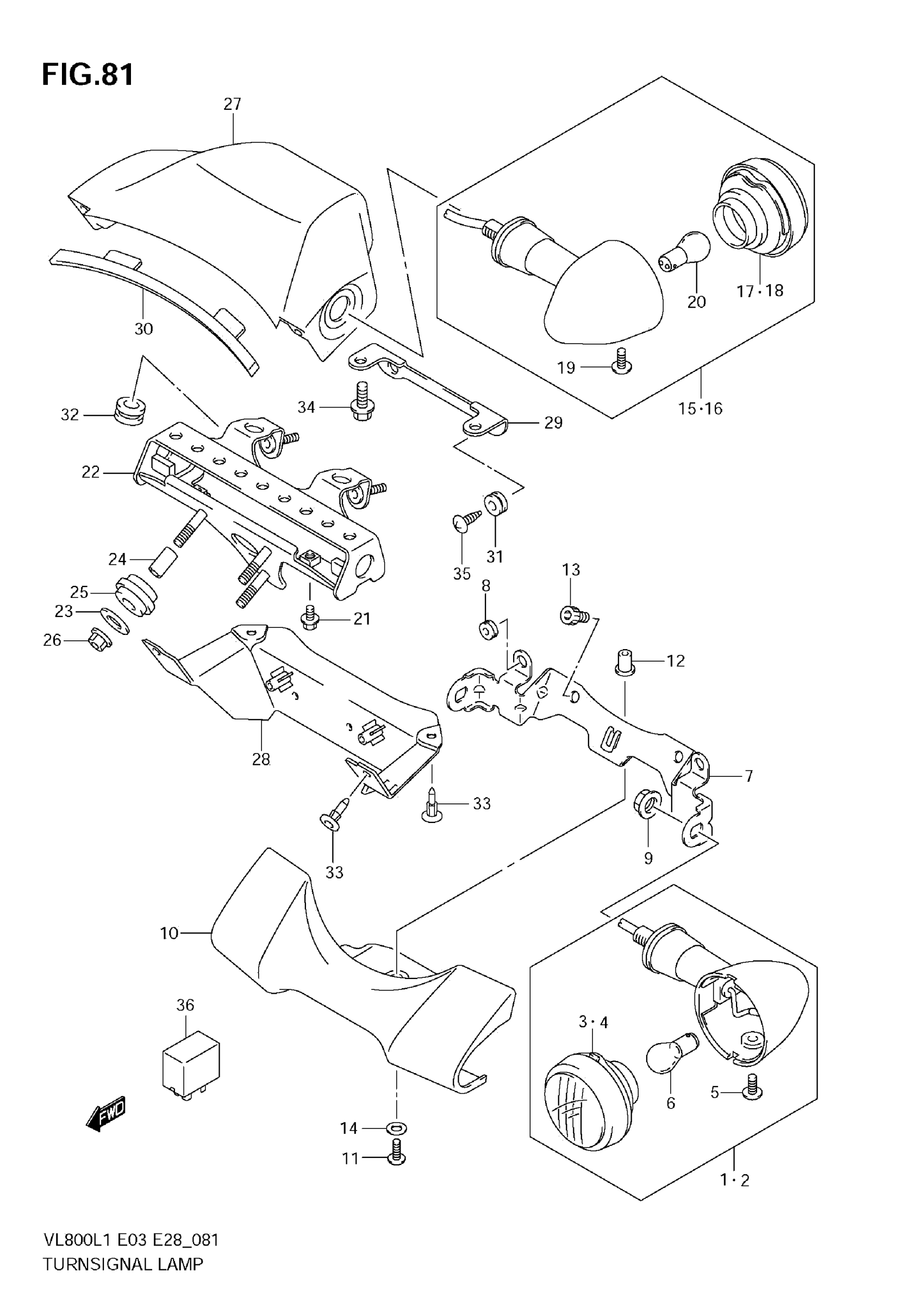

Suzuki VL800CL1 (2011) TURNSIGNAL LAMP (VL800 E33) Diagram

#

Description
Price

1

FRONT TURNSIGNAL ASSY, RH

35601-41FC0

$135.57

2

FRONT TURNSIGNAL ASSY, LH

35602-41FC0

$134.90

3

LENS | FOR RH

35610-38AA0

$31.91

4

LENS | FOR LH

35630-38AA0

$31.91

5

SCREW (4X10)

35623-38AA0

$5.11

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

BRACKET This part replaces 35616-41FA2.

35616-41FA3

$60.63

8

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

9

NUT

08310-0010B

$2.70

10

COVER, FRONT TURNSIGNAL

35641-41F02

$90.20

11

SCREW (5X8)

09139-05042

$2.90

12

NUT, COVER

09159-05019

$7.14

13

BOLT

07130-0812B

$4.10

14

WASHER

09160-05048

$2.02

15

LAMP ASSY, REAR RH

35603-38AH0

$140.17

16

LAMP ASSY, REAR LH

35604-38AH0

$134.90

17

LENS, RH

35610-38AH0

$39.00

18

LENS, LH

35630-38AH0

$39.00

19

SCREW (4X10)

35623-38AA0

$5.11

20

BULB (12V21W)

09471-12045

$3.27

21

BOLT, RR TURN (6X14)

09103-06507

$4.32

22

BRACKET, REAR TURNSIGNAL This part replaces 35620-43H00.

35620-43H01

$53.98

23

WASHER (6.5X20X1.2)

09160-06077

$1.91

24

SPACER (6.4X10X18)

09180-06195

$3.68

25

CUSHION, BRACKET

09320-10504

$5.78

26

NUT, BRACKET

08316-1006A

$2.19

27

COVER, RR TURN UPPER

35621-43H00

$111.15

28

COVER, RR TURN LOWER

35622-06J00

$42.77

29

BRACKET, RR TURN COVER

35623-43H00

$10.58

30

GASKET, RR TURN COVER

35657-43H00

$8.28

31

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

32

CUSHION (8.4X18X6)

09320-08066

$8.24

33

CLIP, RR COVER

09409-06314-5PK

$2.78

34

BOLT, RR COVER BKT

01550-0612A

$1.97

35

SCREW, RR COVER

03541-0510A

$1.49

36

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
