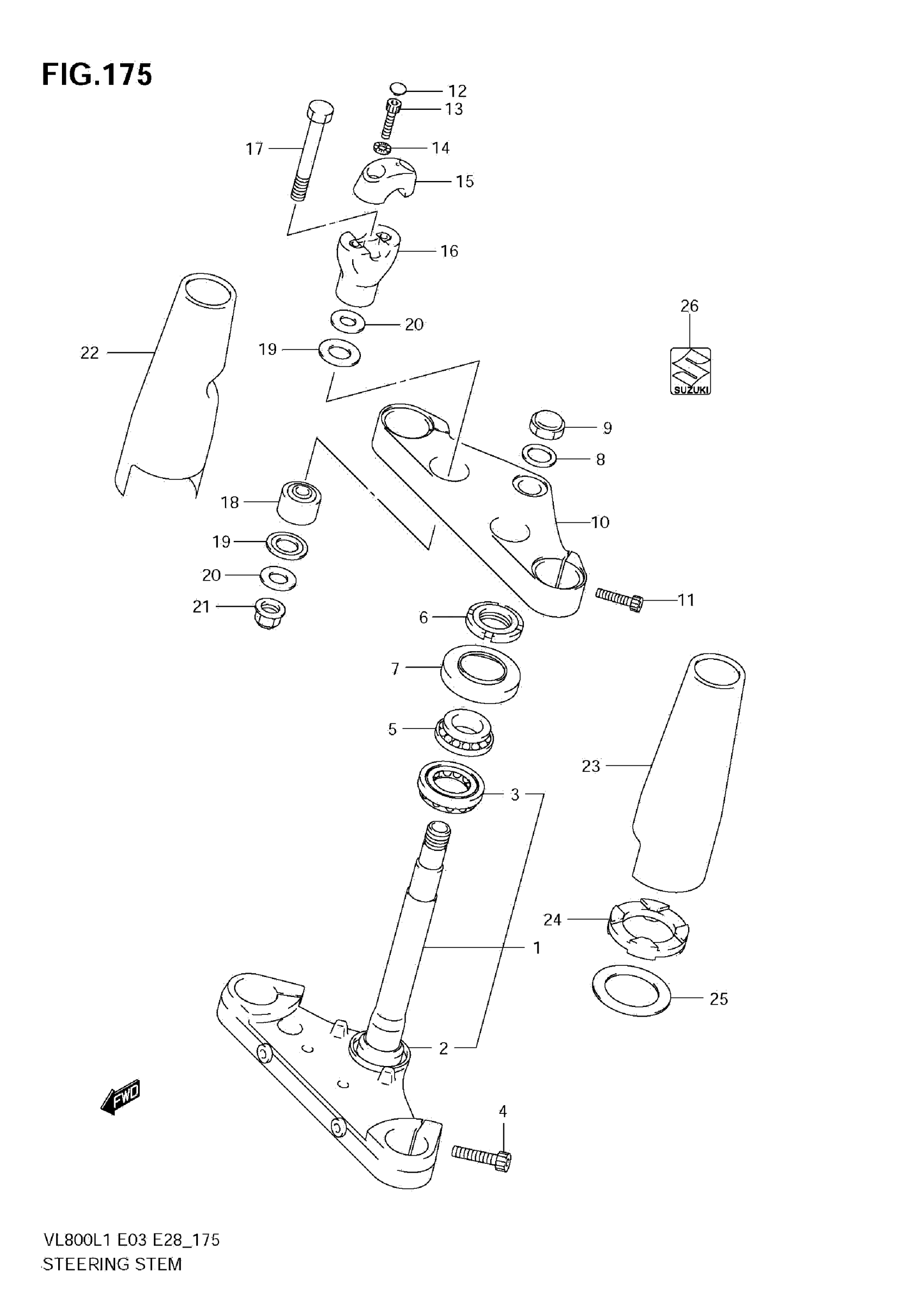

Suzuki VL800CL1 (2011) STEERING STEM (VL800 E28) Diagram

#

Description
Price

1

STEM, STEERING

51410-41F50

$582.22

2

SEAL, STEERING LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BOLT, STEM

07130-1030B

$5.37

5

BEARING (25X47X15)

09267-25009

$52.18

6

NUT, STEM

51631-28000

$17.37

7

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

8

WASHER, STEM

51356-24B01

$5.38

9

NUT, STEM

51353-24B00

$30.67

10

HEAD, STEERING STEM

51311-41F40

Unavailable

11

BOLT

51321-06G00

$9.17

12

CAP, BOLT

09250-06011

$2.50

13

BOLT This part replaces 51321-10F00.

07130-08307

$3.89

14

WASHER

09164-08015

$3.21

15

HOLDER, HANDLE UPPER

56211-41F20

$77.92

16

HOLDER, HANDLE LOWER

56221-41F20

$129.50

17

BOLT, STAY

51226-41F20

$35.92

18

DAMPER, RUBBER

56240-41F20

$40.87

19

SEAT RUBBER

56245-41F20

$8.12

20

WASHER

51354-41F20

$8.85

21

NUT

56246-41F20

$12.58

22

COVER, UPPER, R

51530-41F20

$279.80

23

COVER, UPPER, L

51540-41F20

$279.80

24

SEAT, RUBBER

51468-10F00

$21.83

25

WASHER

51467-10F00

$12.65

26

EMBLEM, S

68281-35F00

$16.45
