2011 Suzuki VL800CL1 Stand - Rear Brake Diagram

← All diagrams

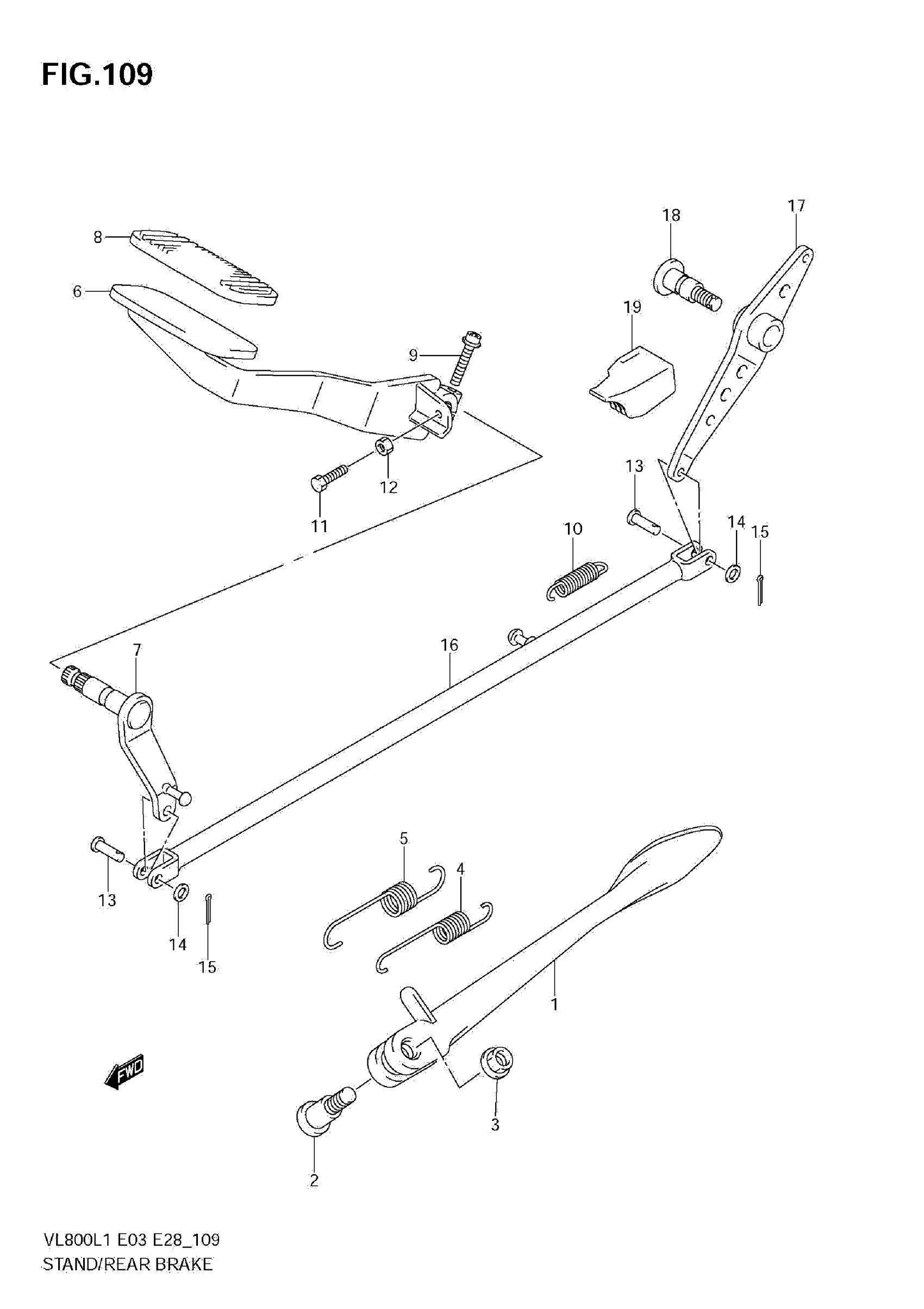

Find the part on the Stand - Rear Brake diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VL800CL1 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-41F01

1
Out of stock

2

BOLT (10X37.5)

09111-10058

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING, INNER

09443-14066

1
Out of stock

5

SPRING, OUTER

09443-19012

1
Out of stock

6

PEDAL, BRAKE

43110-41F11

1
Out of stock

7

ARM, BRAKE ROD

43120-41F00

1
Out of stock

8

RUBBER,BRAKE PEDAL This part replaces 43151-10F00.

43151-10F01

1
Out of stock

9

BOLT, ARM

07120-0625A

1
Out of stock

10

SPRING, RETURN

09443-12051

1
Out of stock

11

BOLT, ADJUSTER

01500-06207

1
Out of stock

12

.NUT

08310-00067

1
Out of stock

13

PIN

09200-06068

2
Out of stock

14

WASHER

08322-0106B

2
Out of stock

15

COTTER PIN

04111-2015A

2
Out of stock

16

ROD, FRONT

43130-41F00

1
Out of stock

17

LINK, REAR BRAKE

43140-41F00

1
Out of stock

18

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

19

RUBBER,BRAKE LINK This part replaces 43151-41F00.

43151-41F01

1
Out of stock
